4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Electrical Components

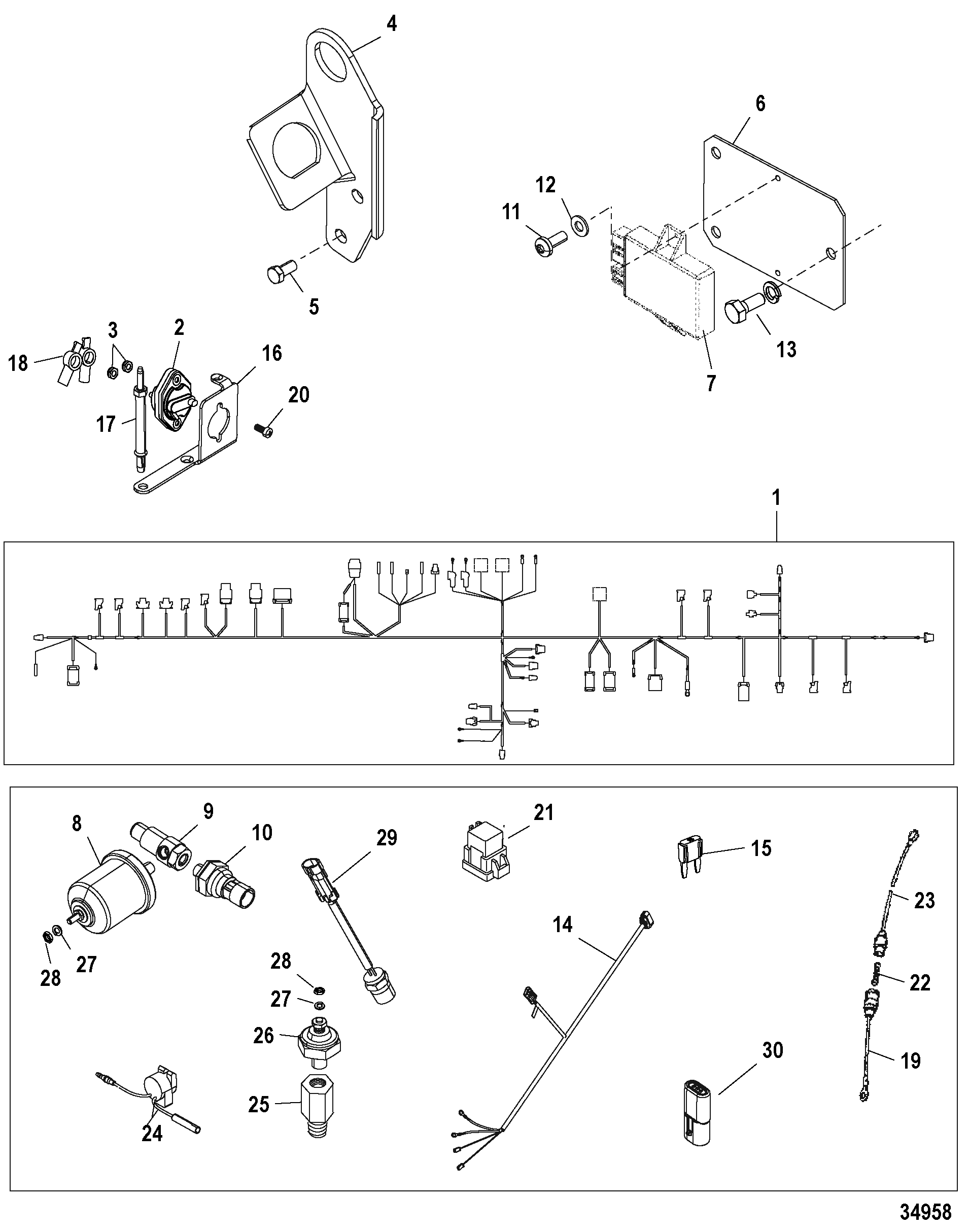

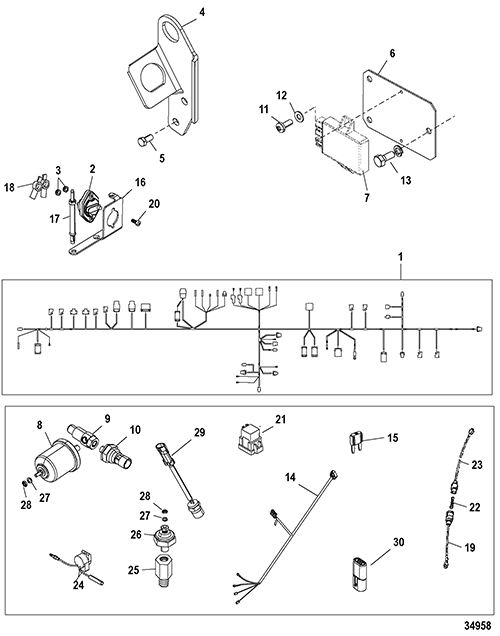

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0084 | OEM: 525-84-862163T05 | HARNESS ASSEMBLY | 1 | ||
| 2 | 0088 | 865827T | BREAKER Circuit - 50 Ampere Flag Reset | [2A1723654] & Below | 1 | |
| 2 | 0088 | OEM: 530-11178A01 | BREAKER Circuit - 50 Ampere Button Reset | [2A172365 ] & Up | ||
| 3 | 0011 | OEM: 525-11-826709106, GLM: 700-21163 | NUT (#10-32) Stainless Steel | [2A1723654] & Below | 2 | |
| 3 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | [2A172365 ] & Up | 2 | |
| 4 | 0000 | OEM: 525-899719T02 | BRACKET Harness Mounting, Lifting Eye | 1 | ||
| 5 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 6 | 0000 | OEM: 525-861516 | BRACKET | 1 | ||
| 7 | 0000 | OEM: 530-861251T1 | ICM MODULE Ignition Control Module | (Alpha) | 1 | |
| 7 | 0000 | OEM: 525-861252T1 | ICM MODULE Ignition Control Module | (Bravo) | 1 | |
| 8 | 0000 | 815425T | SENDER ASSEMBLY Oil | 1 | ||
| 8 | 0000 | OEM: 525-37293T | SENDER ASSEMBLY Oil | (Dual Station) | 1 | |
| 9 | 0022 | OEM: 525-22-864669 | FITTING | 1 | ||
| 10 | 0087 | 864252 | SWITCH | 1 | ||
| 11 | 0010 | OEM: 525-10-861520 | SCREW (#10-32 x .500) | 2 | ||
| 12 | 0012 | OEM: 525-12-89302 | WASHER (.203 x .406 x .040) | 2 | ||
| 13 | 0010 | OEM: 525-10-657461 | SCREW AND LOCKWASHER (.250- 20 x .625) | 3 | ||
| 14 | 0084 | OEM: 525-84-866727T01 | HARNESS ASSEMBLY | 1 | ||
| 15 | 0088 | 83296915 | FUSE Mini - Blue - 15 Ampere | 1 | ||
| 15 | 0088 | 83296920 | FUSE Mini - Yellow - 20 Ampere | 1 | ||
| 16 | 0000 | OEM: 525-899719T01 | BRACKET | 1 | ||
| 17 | 0016 | OEM: 525-16-805459 | STUD Mercathode Mounting | 1 | ||
| 18 | 0085 | OEM: 525-85-89919 | BOOT Insulator - Black | 2 | ||
| 19 | 0084 | OEM: 525-84-95084A10 | CABLE ASSEMBLY (5.00 Inches) Red | (Bravo) | 1 | |
| 20 | 0010 | OEM: 525-10-830861 | SCREW (#8-32 x .625) | [2A1723654] & Below | 2 | |
| 20 | 0010 | 45862 | SCREW (#10-32 x .875) | [2A172365 ] & Up | 2 | |
| 21 | 0000 | OEM: 530-882751 | RELAY | 1 | ||
| 22 | 0088 | OEM: 525-88-79091 | FUSE 20 Ampere | (Bravo) | 1 | |
| 23 | 0084 | OEM: 525-84-95084A9 | CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip | (Bravo) | 1 | |
| 24 | 0000 | OEM: 525-816492A6 | ALARM KIT | 1 | ||
| 25 | 0022 | OEM: 525-22-32974 | FITTING (.125-27) Adaptor | 1 | ||
| 26 | 0087 | OEM: 530-805605A1 | SWITCH ASSEMBLY | 1 | ||
| 27 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 28 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 29 | 0087 | OEM: 525-87-866089 | THERMAL SWITCH (Normally Open 130-110 degrees) Turn Key Start | 1 | ||
| 30 | 0083 | OEM: 525-83-865913A01 | DIODE ASSEMBLY | 1 |
