4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Jackshaft Components

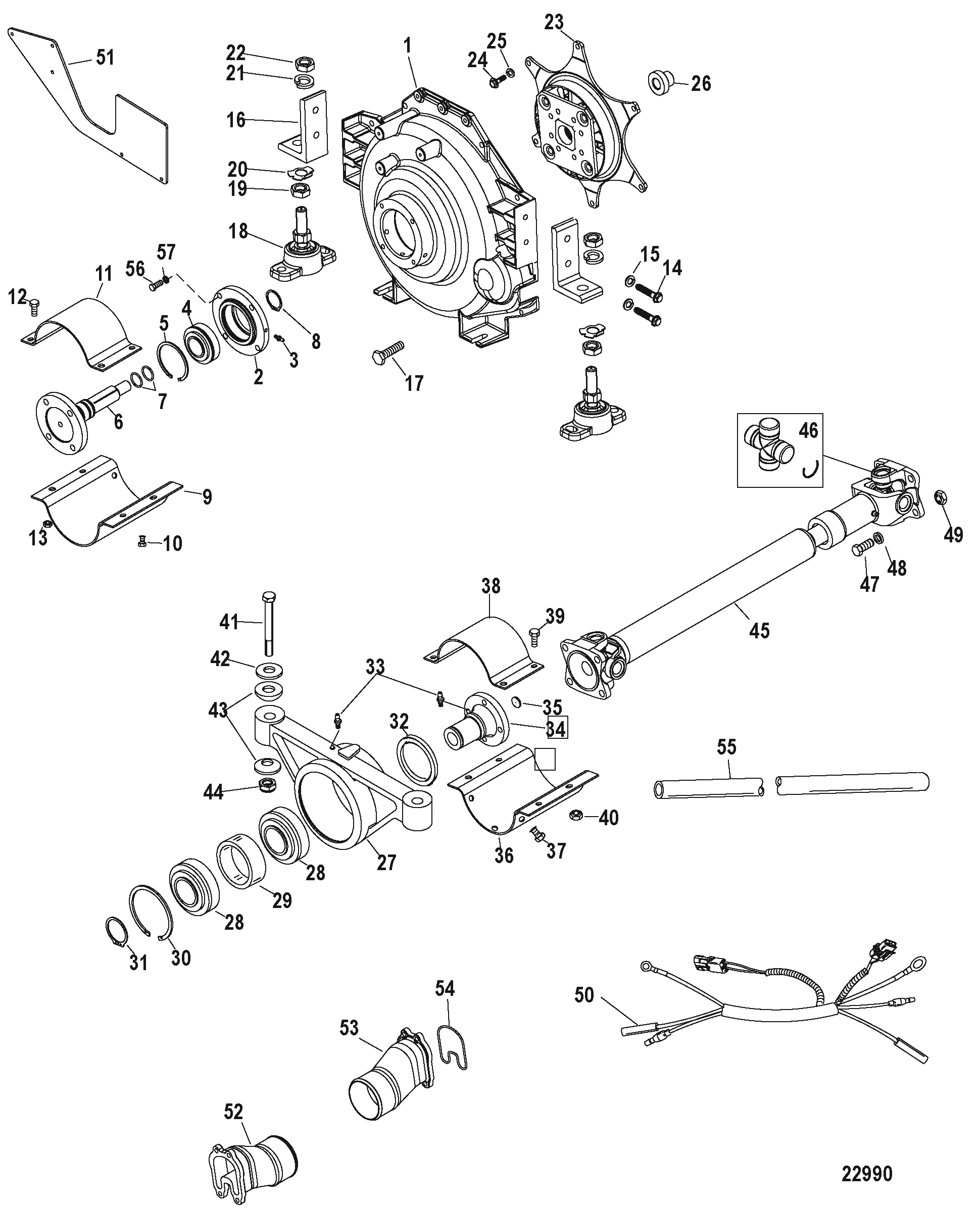

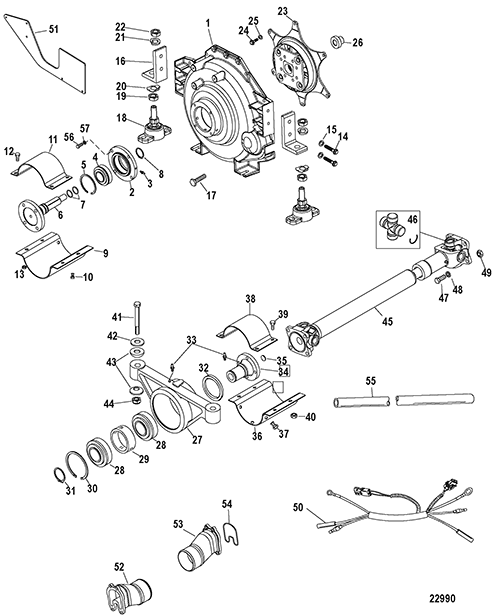

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 862737 | HOUSING Flywheel | 1 | ||
| 2 | 0000 | 862833 | BEARING Adaptor | 1 | ||
| 3 | 0022 | OEM: 525-22-74036 | FITTING Grease | (Use with greased bearing) | 1 | |
| 3 | 0010 | OEM: 525-10-8M2015913 | PLUG (.250-28 x .320) | (Use with non-greased bearing) | 1 | |
| 4 | 0030 | 62780T | BEARING Ball | 1 | ||
| 5 | 0053 | OEM: 525-53-94104 | RING Retaining | 1 | ||
| 6 | 0000 | OEM: 525-862832T | SHAFT | 1 | ||
| 7 | 0025 | OEM: 525-25-29845, Sierra: 676-18-7103, GLM: 700-81190 | O-RING (.924 x .103) | 2 | ||
| 8 | 0053 | OEM: 525-53-841897T | RING Retaining | 1 | ||
| 9 | 0000 | OEM: 525-93918A1 | SHIELD Lower Lower | 1 | ||
| 10 | 0010 | OEM: 525-10-96995 | SCREW (.375-16 x .880) | 3 | ||
| 11 | 0000 | OEM: 525-93919A1 | SHIELD Upper Upper | 1 | ||
| 12 | 0010 | OEM: 525-10-96995 | SCREW (.375-16 x .880) | 4 | ||
| 13 | 0011 | OEM: 525-11-82670912 | NUT (.375-16) Stainless Steel | 4 | ||
| 14 | 0010 | OEM: 525-10-47651 | SCREW (.437-14 x 1.50) | 4 | ||
| 15 | 0013 | OEM: 525-13-32993 | LOCKWASHER (.437) | 4 | ||
| 16 | 0000 | OEM: 525-862738 | BRACKET Flywheel Housing | 2 | ||
| 17 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) | 1 | ||
| 17 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 1 | ||
| 17 | 0010 | OEM: 525-10-47688 | SCREW (.375-16 x 2.750) | 2 | ||
| 18 | 0000 | OEM: 530-66284A2 | BASE ASSEMBLY | 2 | ||
| 19 | 0011 | OEM: 525-11-816331 | NUT (.750-16) Jam | 1 | ||
| 20 | 0014 | OEM: 525-14-12657 | TAB WASHER Tab | 1 | ||
| 21 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) | 2 | ||
| 22 | 0011 | OEM: 525-11-859126 | NUT (.750-16) | 1 | ||
| 23 | 0000 | OEM: 525-862838 | DRIVEPLATE ASSEMBLY | 1 | ||
| 24 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 6 | ||
| 25 | 0012 | OEM: 525-12-20572 | WASHER (.390 x .750 x .093) | 6 | ||
| 26 | 0023 | OEM: 525-23-862834 | BUSHING Pilot | 1 | ||
| 27 | 0000 | OEM: 525-817416A4 | HOUSING ASSEMBLY Bearing | 1 | ||
| 28 | 0030 | OEM: 525-30-93944A2 | BEARING SET Ball | 1 | ||
| 29 | 0023 | OEM: 525-23-817417T | SPACER | 1 | ||
| 30 | 0053 | OEM: 525-53-93914 | RING Retaining | 1 | ||
| 31 | 0053 | OEM: 525-53-93915 | RING Retaining | 1 | ||
| 32 | 0026 | OEM: 525-26-93924 | SEAL Oil | 1 | ||
| 33 | 0022 | OEM: 525-22-74036 | FITTING Grease | 2 | ||
| 34 | NSS | NOT SOLD SEPARATE Shaft-Input | 1 | |||
| 35 | 0019 | OEM: 525-19-93921 | EXPANSION PLUG | 1 | ||
| 36 | 0000 | OEM: 525-93918A1 | SHIELD Lower Lower | 1 | ||
| 37 | 0010 | OEM: 525-10-76926 | SCREW (.375-16 x .875) | 3 | ||
| 38 | 0000 | OEM: 525-93919A1 | SHIELD Upper Upper | 1 | ||
| 39 | 0010 | OEM: 525-10-96995 | SCREW (.375-16 x .880) | 4 | ||
| 40 | 0011 | OEM: 525-11-82670912 | NUT (.375-16) Stainless Steel | 4 | ||
| 41 | 0010 | OEM: 525-10-57053 | SCREW (.500-20 x 4.500) | 2 | ||
| 42 | 0012 | OEM: 525-12-35777, GLM: 700-19320 | WASHER (.5156 x 1.375 x .125) Aluminum | 2 | ||
| 43 | 0012 | OEM: 525-12-42307 | WASHER Spherical | 4 | ||
| 44 | 0011 | OEM: 525-11-898832 | NUT (.500-20) | 2 | ||
| 45 | 0045 | OEM: 525-45-94819T5 | DRIVESHAFT ASSEMBLY (34.50 Inches) | 1 | ||
| 46 | 0000 | OEM: 525-61221T | CROSS AND BEARING With Clips | 1 | ||
| 47 | 0010 | OEM: 525-10-805159 | SCREW (.437-20 x 1.500) | 8 | ||
| 48 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 8 | ||
| 49 | 0011 | OEM: 525-11-82670815 | NUT (.437-20) | 8 | ||
| 50 | 0000 | OEM: 525-899719T05 | HARNESS ASSEMBLY Extension | 1 | ||
| 51 | 0000 | OEM: 525-863180 | BRACKET | 1 | ||
| 52 | 0000 | OEM: 525-862268T1 | TUBE Exhaust | 1 | ||
| 53 | 0000 | OEM: 525-862268T2 | TUBE Exhaust | 1 | ||
| 54 | 0000 | OEM: 530-41802, GLM: 700-86217 | SEAL Rubber Exhaust | 1 | ||
| 55 | 0032 | 865672079 | HOSE (96.00 Inches Bulk) Water Inlet | 1 | ||
| 56 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 4 | ||
| 57 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 4 |
