4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Flywheel Coupler and Flywheel Housing

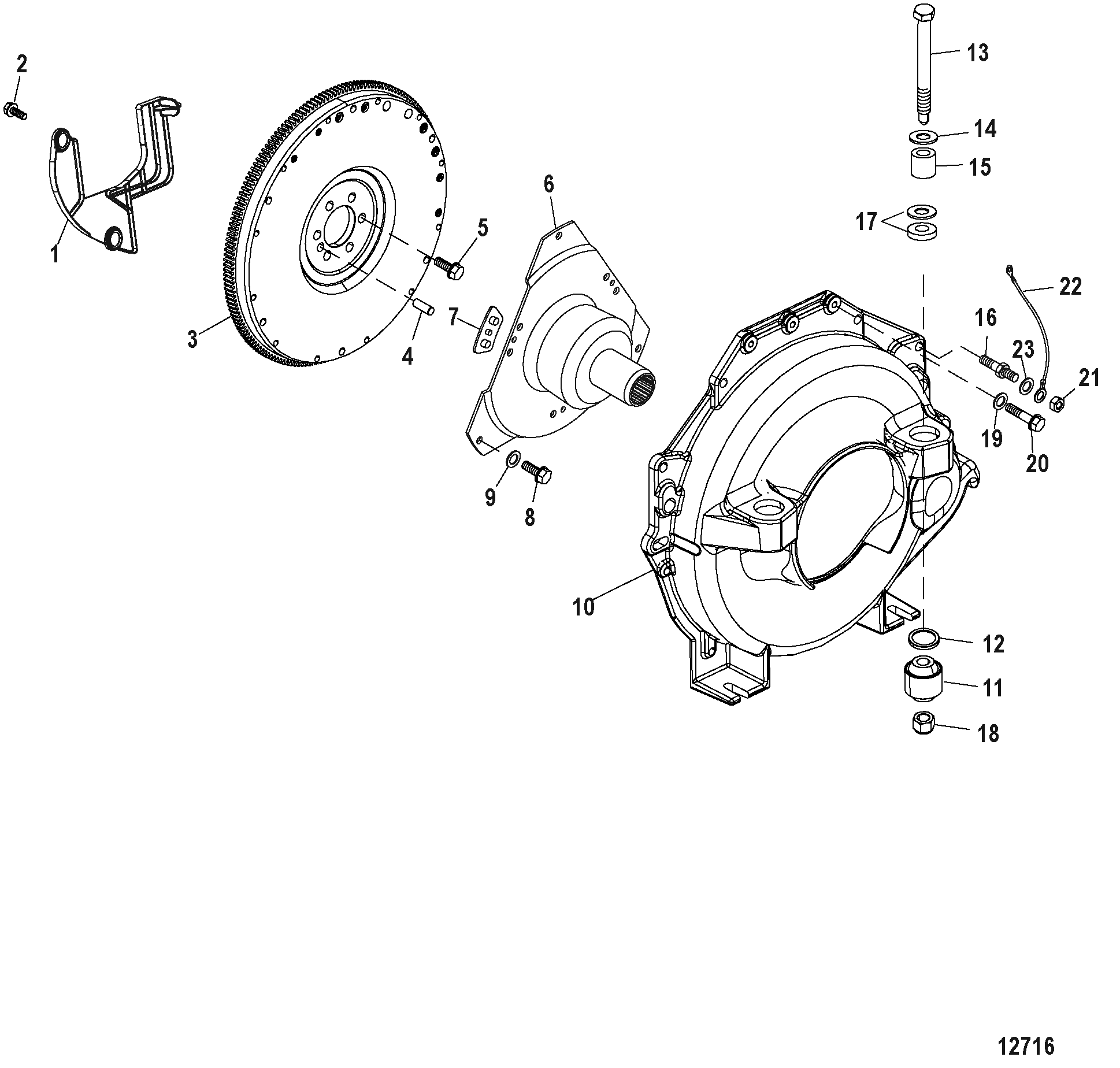

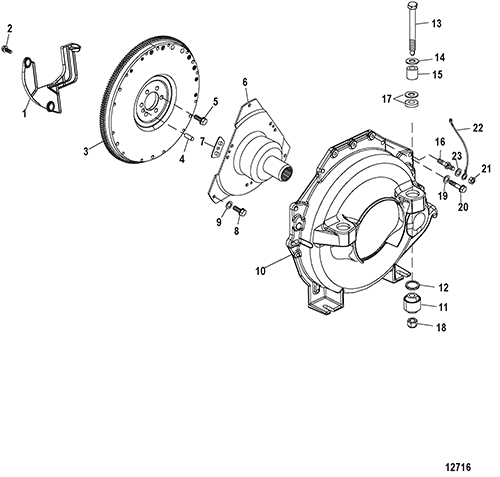

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807456A2 | COVER | 1 | ||
| 2 | 0010 | OEM: 525-10-76596 | SCREW (.250-20 x 1.250) | 2 | ||
| 3 | 222 | 804913 | FLYWHEEL | 1 | [1] | |
| 4 | 0017 | OEM: 525-17-43504 | PIN Dowel Flywheel | 2 | [1] | |
| 5 | 0010 | OEM: 525-10-845757 | SCREW (.437-20 x 1.00) | 6 | [1] | |
| 6 | 0000 | OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 | COUPLING ASSEMBLY | 1 | ||
| NS | 0022 | OEM: 525-22-74036 | FITTING Grease | 1 | ||
| 7 | 0000 | OEM: 525-18644 | BUMPER Rubber | 3 | ||
| 8 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 3 | ||
| 9 | 0012 | OEM: 525-12-13510 | WASHER | 3 | ||
| 10 | 0000 | OEM: 525-865657A03 | HOUSING ASSEMBLY Flywheel Flywheel | 1 | ||
| 11 | 0000 | 865329A02 | MOUNT KIT Rubber | 1 | ||
| 12 | 0023 | OEM: 525-23-99322, GLM: 700-21050 | SPACER | 2 | ||
| 13 | 0010 | OEM: 525-10-97934, Sierra: 676-18-3729, GLM: 700-19310 | SCREW (.500-20 x 5.370) Special | 2 | ||
| 14 | 0012 | OEM: 525-12-35777, GLM: 700-19320 | WASHER (.5156 x 1.375 x .125) Aluminum | 2 | ||
| 15 | 0023 | OEM: 525-23-99299, GLM: 700-19340 | SPACER (.520 x .870 x .630) | 2 | ||
| 16 | 0016 | OEM: 525-16-861577 | STUD Double Ended Metric (M10) | 2 | ||
| 17 | 0012 | OEM: 525-12-892619A01 | SHIM KIT Rear Engine Mount | (Where Applicable) | 1 | |
| 18 | 0011 | OEM: 525-11-863332, Sierra: 676-18-3728, GLM: 700-19350 | NUT (.500-20) Aluminum | 2 | ||
| 19 | 0012 | OEM: 525-12-34567 | WASHER | 4 | ||
| 20 | 0010 | OEM: 525-10-40001197 | SCREW (M10 x 35) | 3 | ||
| 20 | 0010 | OEM: 525-10-40001203 | SCREW (M10 x 45) | 1 | ||
| 21 | 0011 | OEM: 525-11-40125100 | NUT (M10) | 2 | ||
| 22 | 0084 | OEM: 525-84-62826T06 | CABLE ASSEMBLY Ground (13.00 Inches) Black | 2 | ||
| 23 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 2 |
PART NOTES:
[1] - Component of Long Block Assembly- 864256A 2
