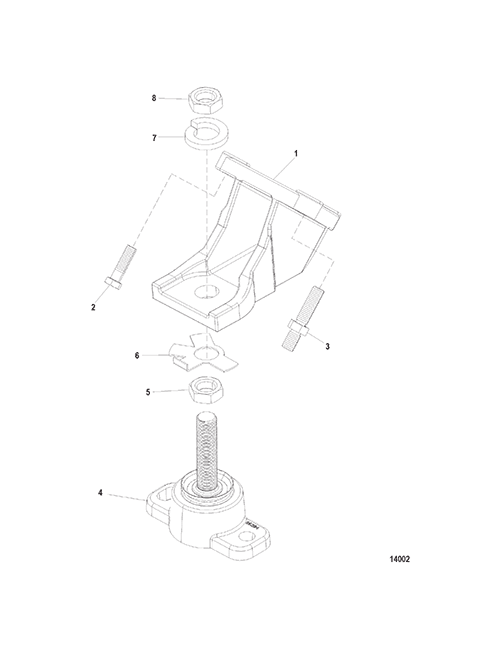

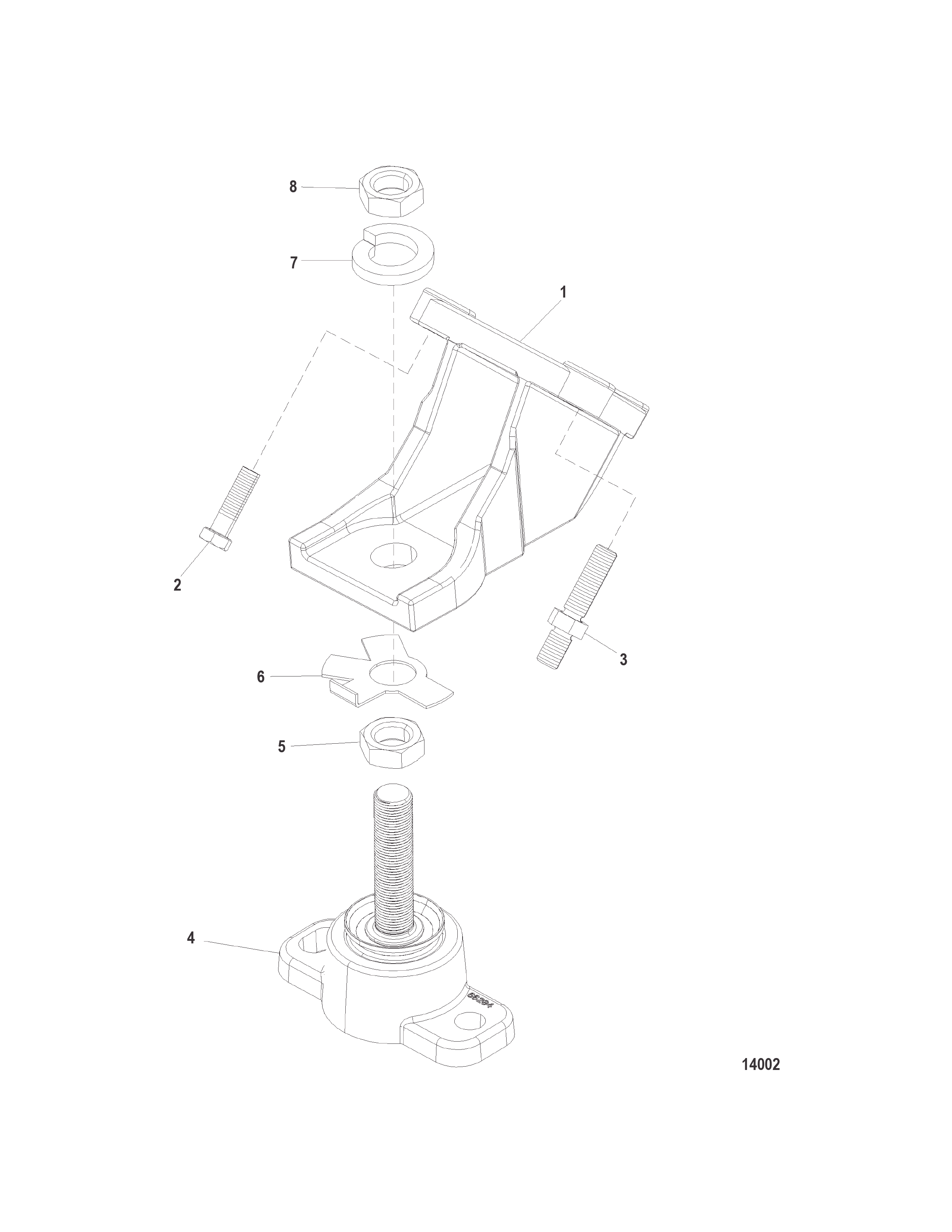

4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Engine Mounts
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 0000 | OEM: 525-79550A1 | BRACKET Mount | 2 | ||
2 | 0010 | OEM: 525-10-68101 | SCREW (.375-16 x 1.375) | 2 | ||
3 | 0016 | 805357 | STUD (.375-16 x 2.130) | 4 | ||
4 | 0000 | OEM: 530-66284A2 | BASE ASSEMBLY | 2 | ||
5 | 0011 | OEM: 525-11-20739 | NUT (.750-16) Jam | 2 | ||
6 | 0014 | OEM: 525-14-12657 | TAB WASHER Tab | 2 | ||
7 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) | 2 | ||
8 | 0011 | OEM: 525-11-20739 | NUT (.750-16) Jam | 2 |
