4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Standard Cooling System (Multi Point Drain)

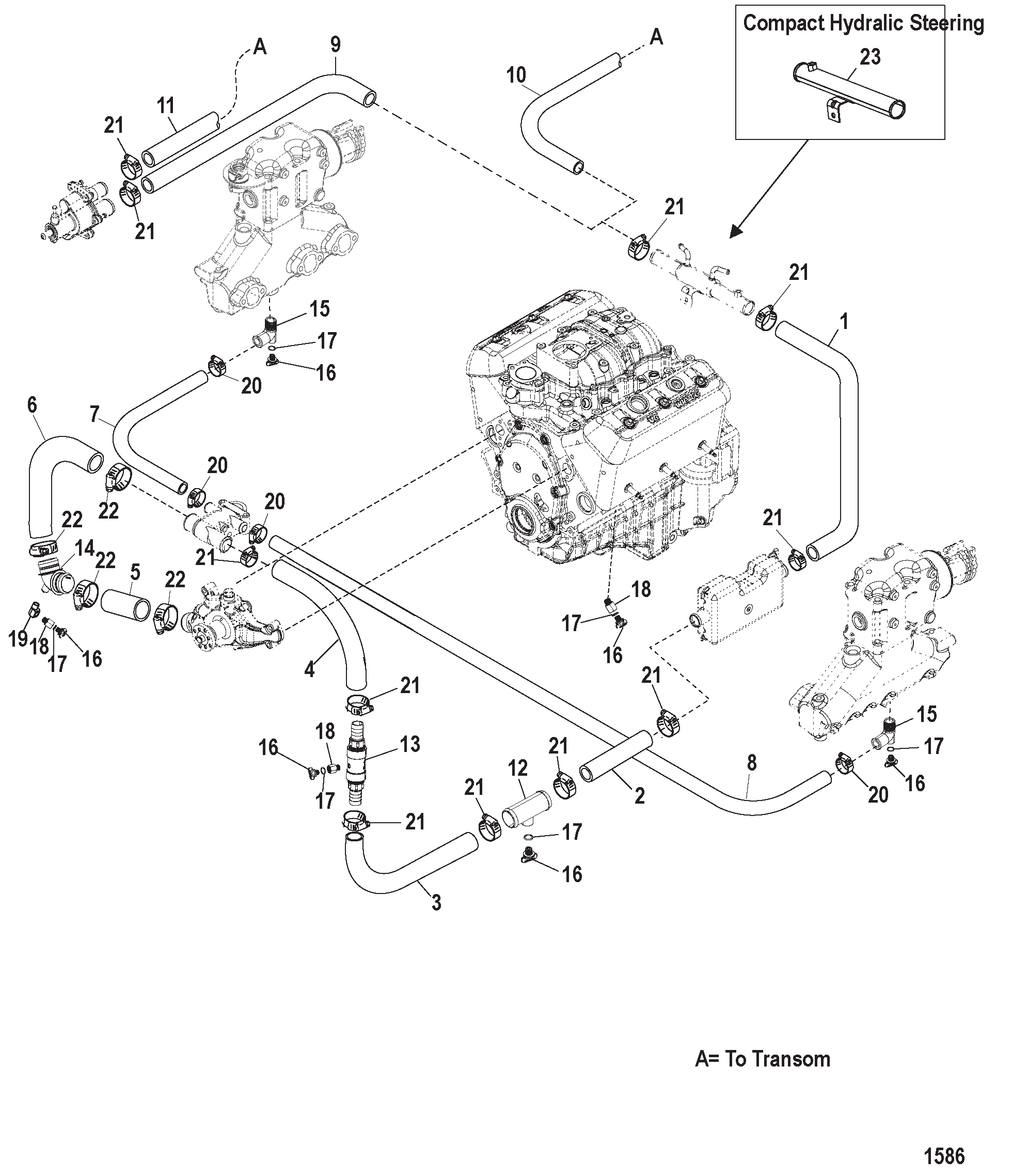

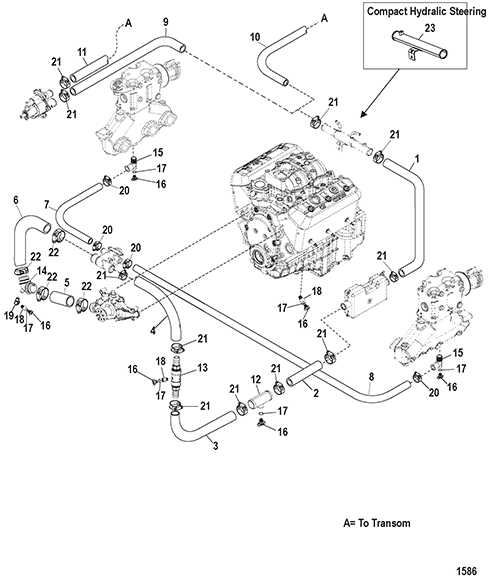

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-860206 | HOSE Fuel Cooler To Power Steering Cooler | 1 | ||
| 2 | 0032 | 80769440 | HOSE (4.00 Inches) Fuel cooler to Drain Fitting | (Cut to Length) | 1 | |
| 3 | 0032 | OEM: 525-32-864578 | HOSE Drain Fitting To Check Valve | 1 | ||
| 4 | 0032 | OEM: 525-32-864579 | HOSE Check Valve To Thermo Housing | 1 | ||
| 5 | 0032 | 842413 | HOSE Circulating Pump To Drain Elbow | 1 | ||
| 6 | 0032 | OEM: 525-32-864703 | HOSE Drain Elbow To Thermo Housing | 1 | ||
| 7 | 0032 | OEM: 525-32-863858 | HOSE Thermo Housing To Starbd Manifold | 1 | ||
| 8 | 0032 | OEM: 525-32-863458 | HOSE Thermo Housing To Port Manifold | 1 | ||
| 9 | 0032 | OEM: 525-32-8636111 | HOSE Sea Pump To Power Steering Cooler (Bravo) | 1 | ||
| 10 | 0032 | OEM: 525-32-807661 | HOSE Transom To P/S Cooler (Alpha) | 1 | ||
| 11 | 0032 | 1743579 | HOSE (96.00 Inches Bulk) Sea Water Pump To Drive (Bravo) | 1 | ||
| 12 | 0000 | OEM: 525-861505 | FITTING Drain Tee | 1 | ||
| 13 | 0021 | OEM: 525-21-862271A1 | CHECK VALVE | 1 | ||
| 14 | 0000 | OEM: 525-8615871 | ELBOW Drain | 1 | ||
| 15 | 0022 | 806926A1 | ELBOW KIT Drain Drain | 2 | ||
| 16 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue Drain Fitting | 9 | [1] | |
| 17 | 0025 | 32509 | O-RING (.489 x .070) | 9 | ||
| 18 | 0022 | OEM: 525-22-860088 | BUSHING | 4 | ||
| 19 | 0022 | OEM: 525-22-46982 | FITTING (90 Degree) | 1 | ||
| 20 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | 4 | ||
| 21 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 11 | ||
| 22 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 4 | ||
| 23 | 0000 | OEM: 525-863841T | TUBE Water (Brass) | (Compact Hydralic Steering) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
