4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Exhaust Manifold And Elbow

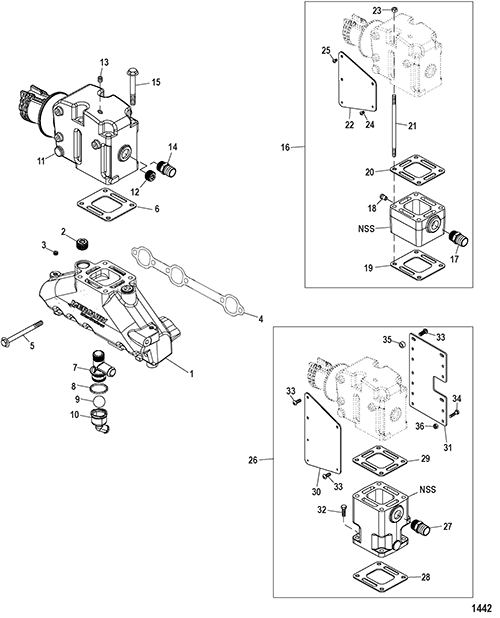

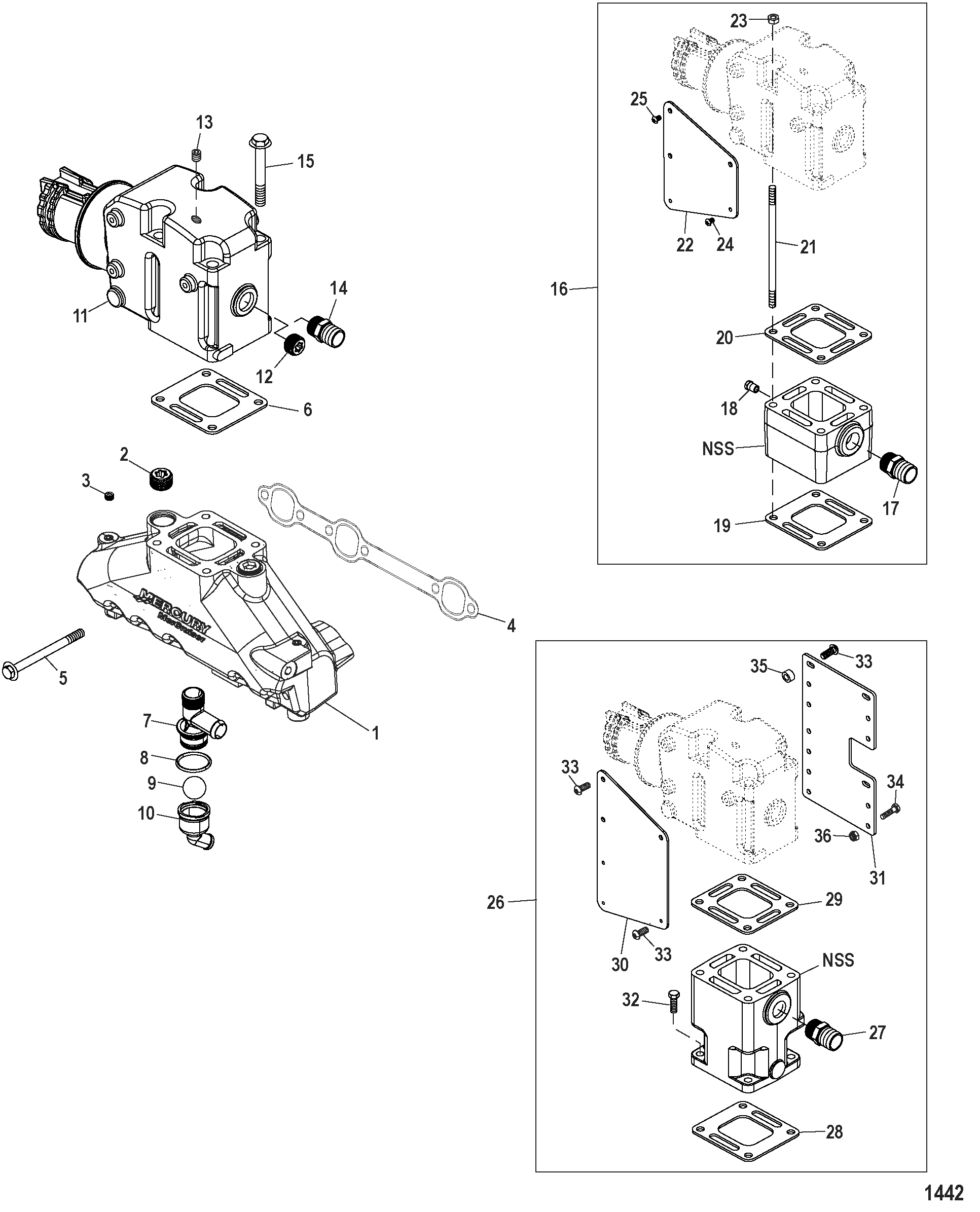

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 530-99746A17, Sierra: 676-18-1952-1, GLM: 700-51220 MANIFOLD ASSEMBLY Exhaust   2
2 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   8
3 0022 OEM: 525-22-390721 PLUG Pipe (.125-27) Brass   2
4 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET   2 [1]
5 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   6
6 0027 OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 GASKET Elbow (Standard Cooling With Easy Drain) 2 [2]
6 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET Elbow (Standard Cooling Wth Multi Point Drain) (Closed Cooling With Easy Drain) 2
7 0022 OEM: 530-863786A1 FITTING ASSEMBLY Drain   2
8 0025 47632 O-RING (1.112 x .103)   1
9 0030 OEM: 525-30-863129 BALL   1
10 0000 OEM: 525-862994T FITTING   1
11 0000 807988A2 ELBOW ASSEMBLY Exhaust   2
12 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
13 0022 OEM: 525-22-73379, GLM: 700-22379 PLUG (.250-18)   1
14 0022 863804 FITTING (.750-14)   1
15 0010 43749 SCREW (.375-16 x 5.750)   8
16 0000 93320A10 RISER EXTENSION KIT (3 Inch)   1
17 0022 863804 FITTING (.750-14)   2
18 0022 OEM: 525-22-328022, Sierra: 676-18-4263 PLUG Pipe (.125-27) Brass   2
19 0027 OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 GASKET Restrictor (Standard Cooling With Easy Drain) 2 [2]
19 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET (Standard Cooling With Multi Point Drain) (Closed Cooling With Easy Drain) 2
20 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET   2
21 0016 11375 STUD (.375 x 9.56)   8
21 0016 11376 STUD (.375 x 10.56)   2
22 0000 863714T BRACKET   1
23 0011 OEM: 525-11-805979 NUT (.375-24) Flange   8
24 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
25 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   4
26 0000 OEM: 525-93322A10, GLM: 700-50620 RISER EXTENSION KIT (6 Inch)   1
27 0022 863804 FITTING (.750-14)   2
28 0027 OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 GASKET Restrictor (Standard Cooling With Easy Drain) 2 [2]
28 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET (Standard Cooling With Multi Point Drain) (Closed Cooling With Easy Drain) 2
29 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET   2
30 0000 863715T BRACKET ECM Mounting   1
31 0000 OEM: 525-818598T BRACKET Shift Plate Mounting   1
32 0010 12244 SCREW (.375-16 x 1.00)   8
33 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   6
34 0010 OEM: 525-10-28667, GLM: 700-22360 SCREW (.250-20 x 1.00) Stainless Steel   3
35 0023 92152 SPACER (.27 x .75 x .38)   3
36 0011 OEM: 525-11-8267138 NUT (.25-20)   3
- 0027 OEM: 525-27-807756A01 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component Of Engine Overhaul Gasket Set 807756A01

Component Of Long Block Assemlby, Long Block Part Numbers Listed On Service/Support Material Page.


[2] - Alternate part numbers:

863724Service Part

863724QQS
