4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Thermostat And Housing (Easy Drain)

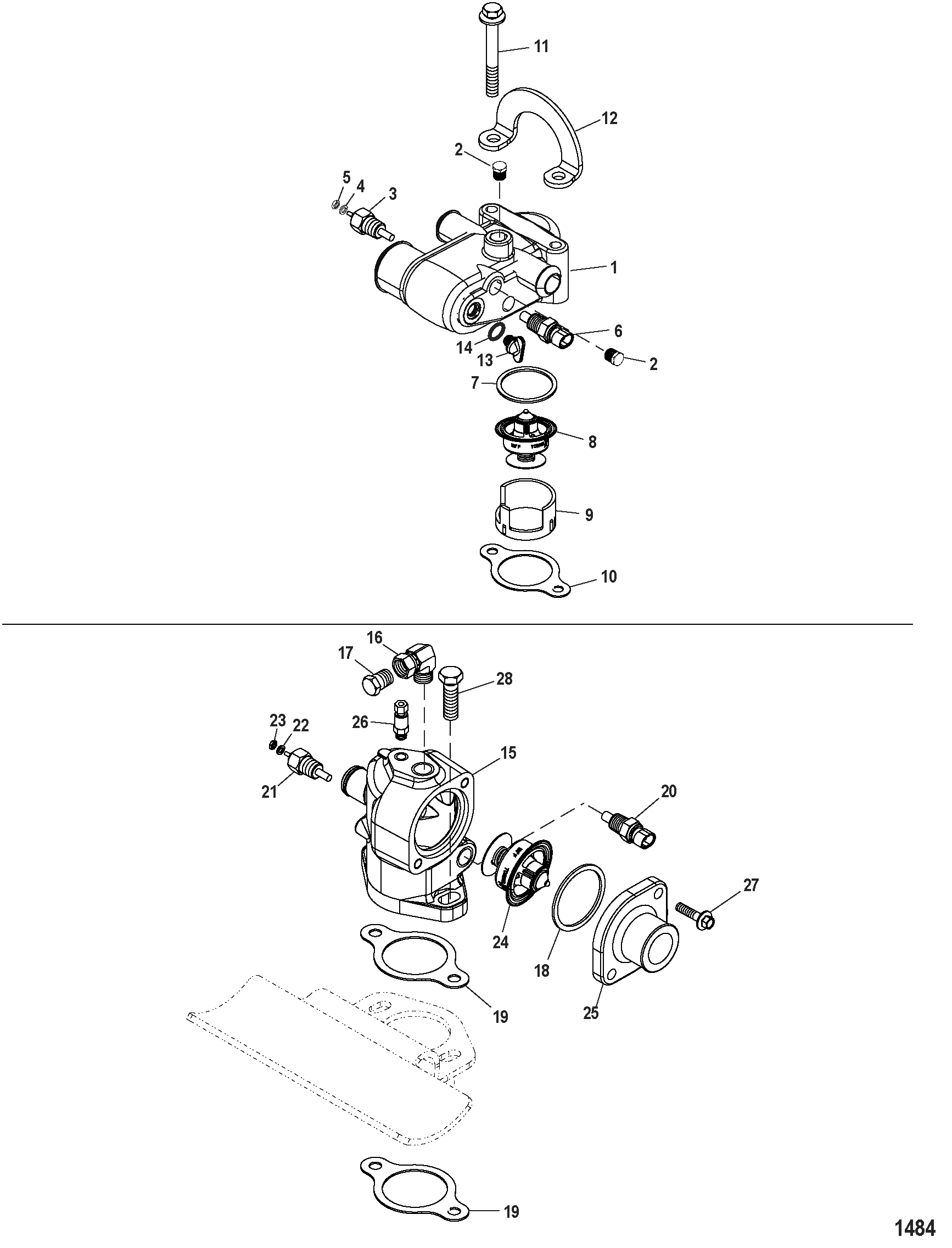

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-863457A2 | HOUSING ASSEMBLY Thermostat | (Raw Water Cool) (With E/Z Drain Cooling System) | 1 | |
| 2 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 3 | 0000 | OEM: 530-806490T, Sierra: 676-18-5897 | SENDER Water Temperature | 1 | ||
| 3 | 0000 | OEM: 525-49734 | SENDER Water Temperature (Dual Station) | OPT | ||
| 4 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 5 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 6 | 0000 | OEM: 530-805218T, Sierra: 676-18-7600 | SENSOR | 1 | ||
| 7 | 0027 | OEM: 525-27-806871 | GASKET Thermostat Housing | 1 | [1] | |
| 8 | 0000 | OEM: 525-807252T2, Sierra: 676-18-3649, GLM: 700-13100 | THERMOSTAT 71DegreeC (160 Degree F) | 1 | [2] | |
| 9 | 0023 | OEM: 530-806922 | SLEEVE Thermostat | 1 | ||
| 10 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET Lower Thermostat Housing | 1 | [3] | |
| 11 | 0010 | OEM: 525-10-4010775 | SCREW (M8 x 75) | 2 | ||
| 12 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 | ||
| 13 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 1 | [4] | |
| 14 | 0025 | 32509 | O-RING (.489 x .070) | 1 | ||
| 15 | 0000 | OEM: 525-863708A2 | HOUSING ASSEMBLY Thermostat | (Fresh Water Cool) (With E/Z Drain Cooling System) | 1 | |
| 16 | 0022 | OEM: 525-22-35580 | FITTING Elbow | 1 | ||
| 17 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 18 | 0025 | OEM: 525-25-8071341, Sierra: 676-18-1508 | SEAL Thermostat | 1 | [1] | |
| 19 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET Thermostat Housing | 2 | [3] | |
| 20 | 0000 | 805218 | SENSOR Temperature | 1 | ||
| 21 | 0000 | OEM: 530-806490T, Sierra: 676-18-5897 | SENDER Temperature | 1 | ||
| 21 | 0000 | OEM: 525-49734 | SENDER Water Temperature (Dual Station) | OPT | ||
| 22 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 23 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 24 | 0000 | OEM: 530-991551 | THERMOSTAT | 1 | [5] | |
| 25 | 0000 | 807075 | COVER Thermostat Housing | 1 | ||
| 26 | 0022 | OEM: 525-22-818390 | DRAIN COCK | 1 | ||
| 27 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 2 | ||
| 28 | 0010 | OEM: 525-10-40011151 | SCREW (M8 x 35) Stainless Steel | 2 | ||
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Engine Overhaul Gasket Set 807756A01
[2] - Alternate part numbers:
807252Q 5QS Kit
807252T 2Service Part
807252T 5MPP Kit
[3] - Alternate part numbers:
53045 1Service Part
53045Q01QS
Component Of Engine Overhaul Gasket Set 807756A01
[4] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
[5] - Alternate part numbers:
99155 1Service Part
99155T 1Kit
