496 Mag HO Model - Serial 0M687144 Thru 0W059999 - PCM and Bracket

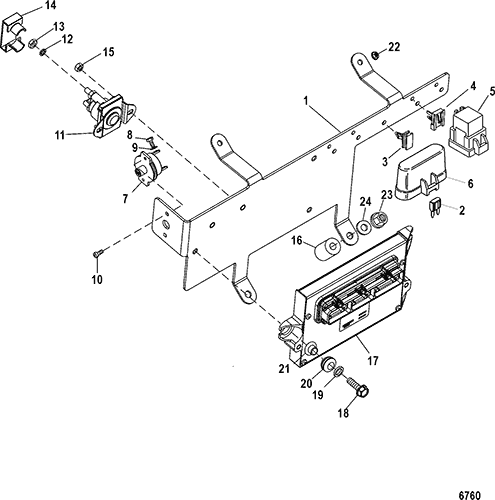

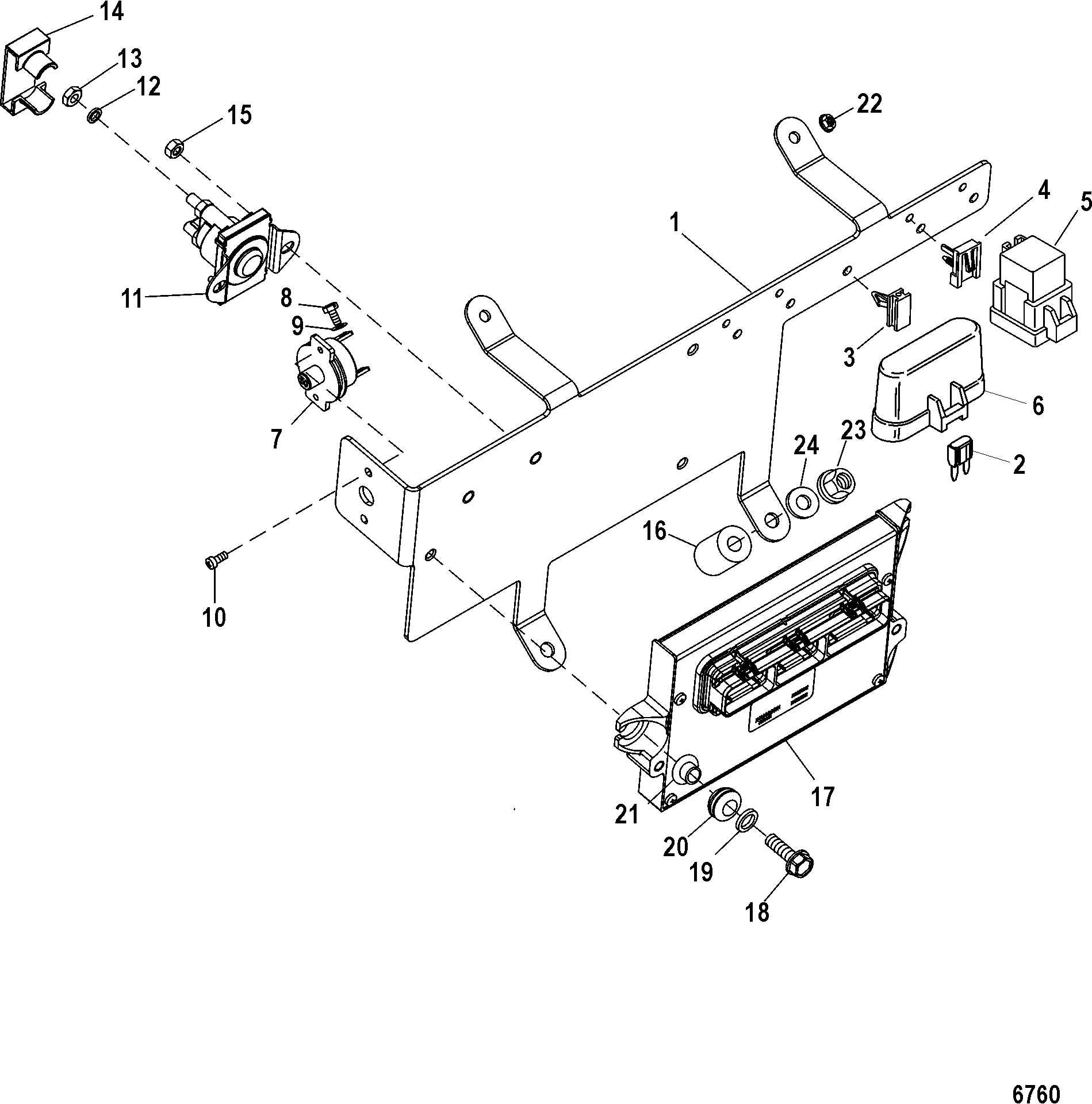

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| NS | 84-865457A02 | HARNESS ASSEMBLY, Wiring, Engine | 1 | (Mechanical Throttle and Shift) | |||||
| NS | 84-865458A01 | HARNESS ASSEMBLY, Wiring, Engine | 1 | (Digital Throttle and Shift) | |||||
| 1 | 862539T01 | BRACKET, PCM | 1 | ||||||
| 2 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 3 | 86-865205 | CLIP, Fuse Block Mounting | 1 | 54-804351 | |||||
| 4 | 54-804352 | CLIP, Relay Mounting | 3 | ||||||
| 5 | 86-865202T | RELAY (Mechanical Throttle and Shift) | 3 | 807057T | |||||
| 5 | 86-865202T | RELAY (Digital Throttle and Shift) | 4 | 807057T | |||||
| 6 | 883562 | COVER, Fuse | 1 | ||||||
| 7 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-806950 | |||||
| 8 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel, Split Lock | 2 | ||||||
| 10 | 10-57583 | SCREW, (#8-32 x .375) | 2 | ||||||
| 11 | 89-96158T | 620-3387M | 676-9-15112 | 700-72400 | 602-SW101 | SOLENOID | 1 | ||
| NS | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| NS | 13-26996 | LOCKWASHER, (#10) Stainless Steel, Split Lock | 2 | ||||||
| 12 | 13-26992 | LOCKWASHER, (.250) Stainless Steel, Split Lock | 2 | ||||||
| 13 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 14 | 85-97861 | INSULATOR, Solenoid | 1 | ||||||
| 15 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 16 | 23-862995 | SPACER | 1 | ||||||
| 17 | 865364T02 | PCM, Propulsion Control Module, Base | 1 | 865364T01 | (Mechanical Throttle and Shift) SN# 0W029410 & Below | ||||
| 17 | 866090T05 | PCM, Propulsion Control Module, Base | 1 | 865850T01 | (Mechanical Throttle and Shift) SN# 0W029411 & Up | ||||
| 17 | 863784T03 | PCM, Propulsion Control Module, Base | 1 | (Digital Throttle and Shift) | |||||
| 17 | 865366T02 | PCM, Propulsion Control Module, H.O. | 1 | 865366T01 | (Mechanical Throttle and Shift) SN# 0W029410 & Below | ||||
| 17 | 865855T01 | PCM, Propulsion Control Module, H.O. | 1 | (Mechanical Throttle and Shift) SN# 0W029411 & Up | |||||
| 17 | 863785T03 | PCM, Propulsion Control Module, H.O. | 1 | 863785T02 | (Digital Throttle and Shift) | ||||
| 18 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 19 | 23-856954 | BUSHING, Electrical Plate | 3 | ||||||
| 20 | 25-834985 | GROMMET | 3 | ||||||
| 21 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 22 | 11-4002030 | NUT, (M8) | 2 | ||||||
| 23 | 11-863289 | NUT | 2 | ||||||
| 24 | 12-12038 | WASHER | 2 |
