496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Remote Oil System

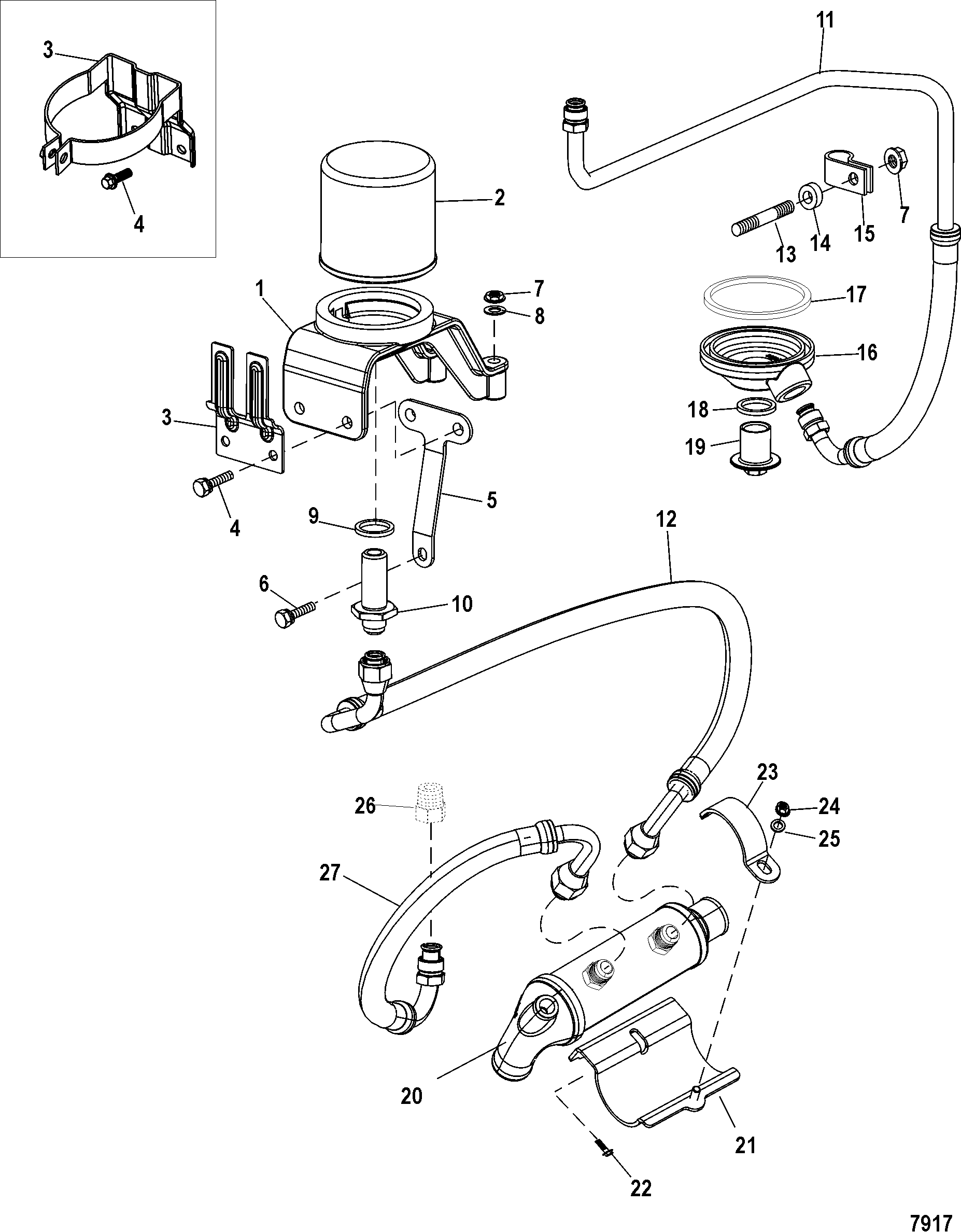

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862342T | BRACKET, Remote Oil Filter | 1 | ||||||
| 2 | 35-866340Q03 | 676-9-57825 | FILTER, Oil | 1 | 35-802885Q | ||||
| 3 | 863119 | BRACKET, Power Steering Reservoir | 1 | SN# 0W000004 & Up | |||||
| 3 | 865262A02 | BRACKET ASSEMBLY | 1 | 865262A01 | SN# 0W000005 & Below | ||||
| 4 | 10-4000354 | SCREW, (M8 x 30) | 2 | SN# 0W000004 & Up | |||||
| 4 | 10-4000354 | SCREW, (M8 x 30) | 2 | SN# 0W000005 & Below | |||||
| 5 | 8629102 | BRACKET, Support | 1 | ||||||
| 6 | 10-4010716 | SCREW, (M8 x 16), Flange | 1 | ||||||
| 7 | 11-4002030 | NUT, (M8) | 3 | ||||||
| 8 | 12-12038 | WASHER | 3 | ||||||
| 9 | 26-42077 | SEAL | 1 | 2,3 | |||||
| 10 | 22-806328 | FITTING, Oil Adaptor | 1 | ||||||
| 11 | 32-863899 | HOSE, Oil, Filter to Adaptor | 1 | ||||||
| 12 | 32-863900 | HOSE, Oil, Filter to Cooler | 1 | ||||||
| 13 | 16-424632 | STUD, (M8 x 37.1) | 1 | ||||||
| 14 | 23-34948 | SPACER | 1 | ||||||
| 15 | 54-475451 | CLIP | 2 | ||||||
| 16 | 862870T | ADAPTOR, Oil Filter | 1 | ||||||
| 17 | 26-862957 | SEAL, Oil Filter Adaptor | 1 | 2,3 | |||||
| 18 | 26-42077 | SEAL, Swivel Tube | 1 | 2,3 | |||||
| 19 | 22-862958 | FITTING, Oil Filter Adaptor | 1 | ||||||
| 20 | 863904T | COOLER, Oil | 1 | ||||||
| 21 | 863905T | BRACKET, Oil Cooler | 1 | ||||||
| 22 | 10-4000327 | SCREW, (M6 x 14) | 2 | ||||||
| 23 | 807445T | CLAMP, Cooler Bracket | 1 | ||||||
| 24 | 11-401366 | NUT, (M6) Stainless Steel | 1 | ||||||
| 25 | 12-22937 | WASHER | 1 | ||||||
| 26 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare) | 1 | ||||||
| 27 | 32-863915 | HOSE, Oil, Cooler to Adaptor | 1 |
