496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Raw Water Cooling System

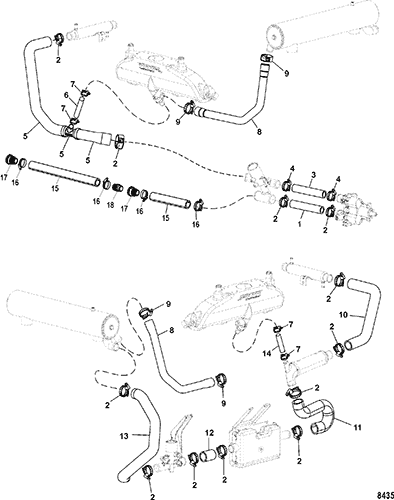

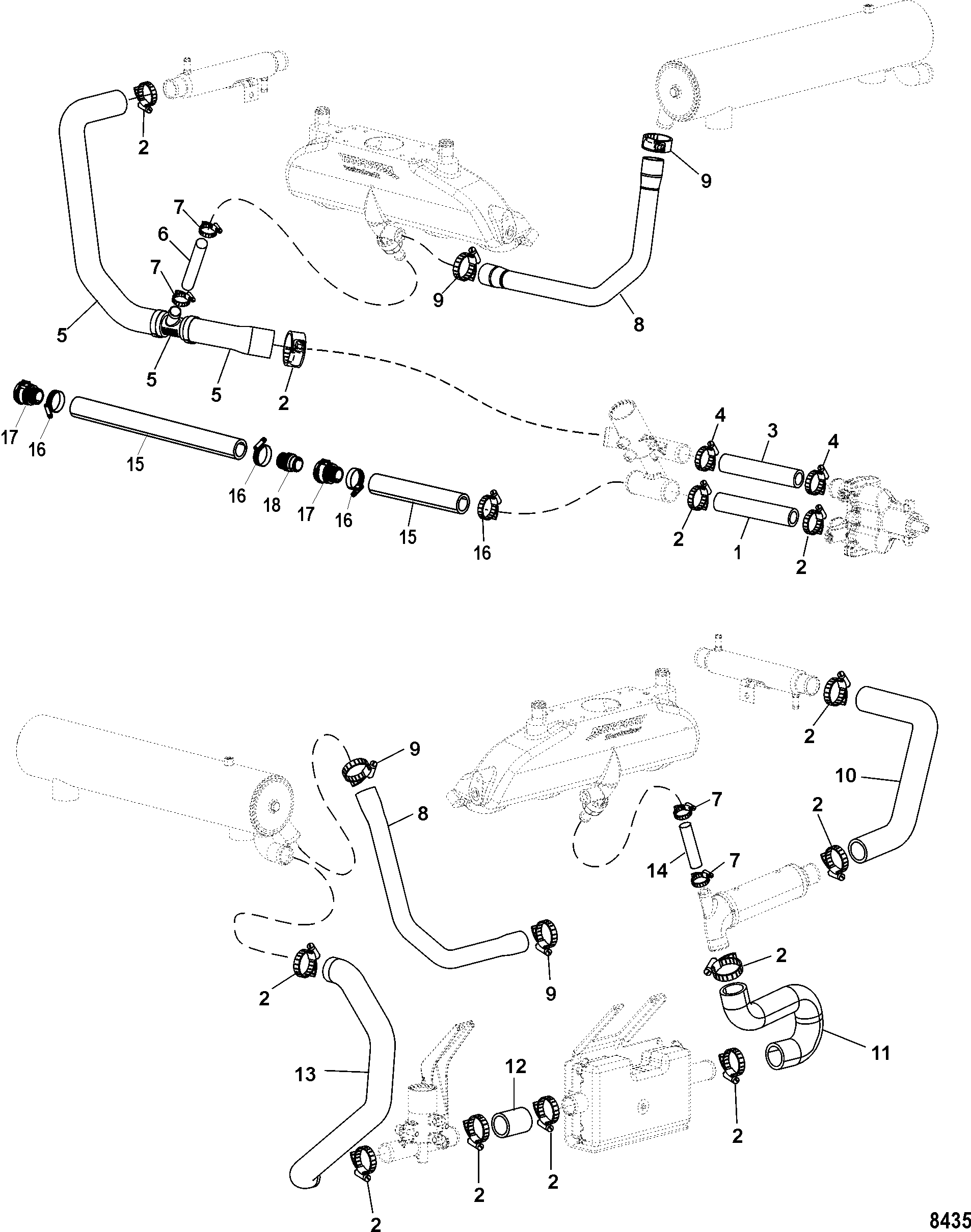

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863036 | HOSE, Sea Water Pump to Water Drain | 1 | ||||||
| 2 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 12 | ||||||
| 3 | 32-865672079 | HOSE, Sea Water Pump to Water Drain | 1 | 32-86334352 | |||||
| 4 | 54-815504228 | CLAMP, Worm Gear, Hose | 3 | ||||||
| 5 | 32-8M0063512 | HOSE ASSEMBLY, Water Drain to Power Steering Cooler | 1 | 32-863037A1 | |||||
| 6 | 32-4285069 | HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting | 1 | (Starboard)(Cut to 9 In.) | |||||
| 7 | 54-815504212 | CLAMP, Worm Gear, Hose | 4 | ||||||
| 8 | 32-864488 | HOSE, Heat Exchanger to Water Rail | 2 | ||||||
| 9 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 4 | ||||||
| 10 | 32-863894 | HOSE, Power Steering Cooler to Oil Cooler | 1 | ||||||
| 11 | 32-863897 | HOSE ASSEMBLY, Oil Cooler to Cool Fuel System | 1 | ||||||
| 12 | 32-863047 | HOSE, Cool Fuel System to Water Drain | 1 | ||||||
| 13 | 32-863051 | HOSE, Water Drain to Heat Exchanger | 1 | ||||||
| 14 | 32-4285069 | HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting | 1 | (PORT)(Cut to 3 In.) | |||||
| 15 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut to Fit | 1 | ||||||
| 16 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 2 | ||||||
| 17 | 22-865324 | QUICK CONNECT, Female | 2 | SN# 0W000005 & Up | |||||
| 18 | 22-865362 | QUICK CONNECT, Male | 1 | SN# 0W000005 & Up | |||||
| - | 19-8079923 | COVER, Hose Clamp End | AR |
