454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Cylinder Head And Rocker Cover

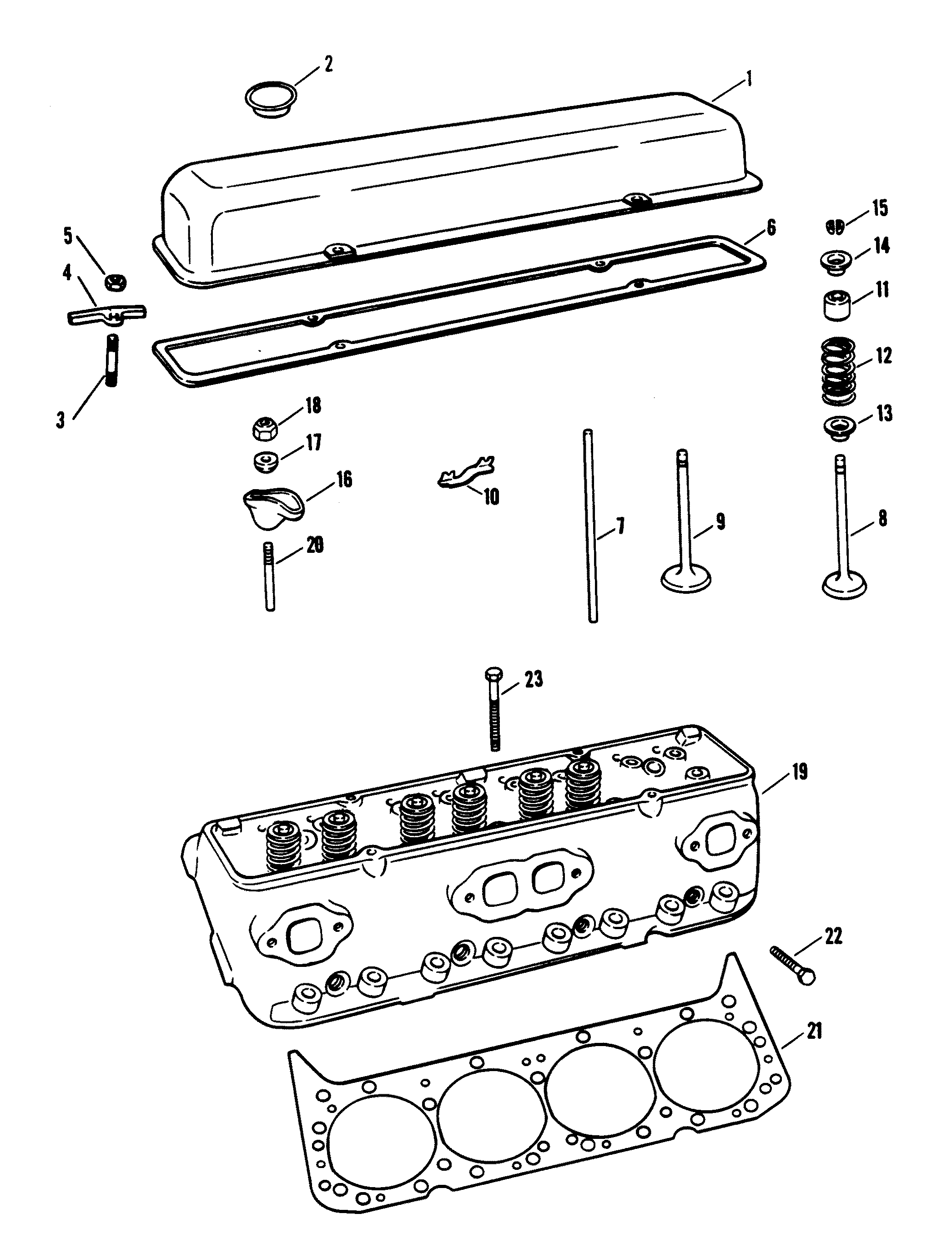

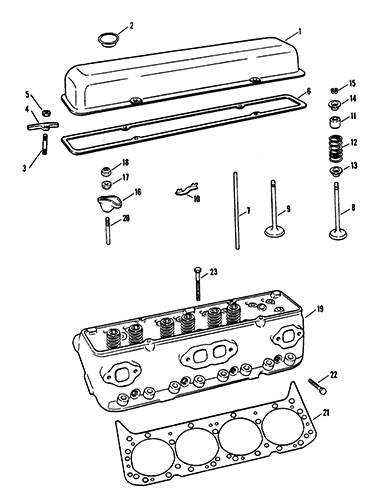

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17671 | COVER, ROCKER | 2 | This Part is No Longer Available | |||||
| 2 | 36-807152 | CAP, OIL FILLER | 2 | 36-75336 | This Part is No Longer Available | ||||
| 3 | 16-11995 | STUD, ROCKER COVER | 14 | This Part is No Longer Available | |||||
| 4 | 14763 | REINFORCEMENT, ROCKER COVER STUD | 8 | No longer made, limited availability | |||||
| 4 | 14764 | REINFORCEMENT, ROCKER COVER STUD | 6 | No longer made, limited availability | |||||
| 5 | 11-11996 | NUT, ROCKER COVER STUD | 14 | ||||||
| 6 | 27-49121 | GASKET, ROCKER COVER | 2 | 2 | |||||
| 7 | 75589 | ROD, VALVE PUSH (INLET) | 8 | ||||||
| 7 | 75590 | ROD, VALVE PUSH (EXHAUST) | 8 | ||||||
| 8 | 67861 | VALVE, EXHAUST (STANDARD) | 8 | This Part is No Longer Available | |||||
| 8 | NSS | NOT SOLD SEPARATE, VALVE, EXHAUST (.015 O.S.) (GM #14045189) | AR | This part is not sold separate | |||||
| 9 | 49134 | VALVE, INLET (STANDARD) | 8 | ||||||
| 9 | 49135 | VALVE, INLET (.015 O.S.) | AR | This Part is No Longer Available | |||||
| 10 | 75979 | GUIDE, PUSH ROD | 8 | No longer made, limited availability | |||||
| 11 | 26-75988 | SEAL, VALVE | 16 | 2 | |||||
| 12 | 24-14754T | SPRING, VALVE (INLET AND EXHAUST) | 16 | 24-14754 | |||||
| 13 | 14755 | ROTATOR, VALVE SPRING | 16 | This Part is No Longer Available | |||||
| 14 | 14753 | CAP, VALVE | 16 | This Part is No Longer Available | |||||
| 15 | 28-54530 | KEY, VALVE STEM | 32 | ||||||
| 16 | 19241 | ARM, ROCKER VALVE | 16 | This Part is No Longer Available | |||||
| 17 | 58041 | BALL UNIT, ROCKER VALVE ARM | 16 | ||||||
| 18 | 11-49119 | NUT, ROCKER VALVE ARM STUD | 16 | No longer made, limited availability | |||||
| 19 | 938-883491R1 | CYLINDER ASSEMBLY | 2 | 938-9553 | This Part is No Longer Available | ||||
| 20 | 16-49133 | STUD, ROCKER VALVE ARM | AR | This Part is No Longer Available | |||||
| 21 | 8M0049045 | GASKET, CYLINDER HEAD | 2 | 27-13687 | 2 | ||||
| 22 | 10-8M0000463 | BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2") | 8 | 10-49106 | |||||
| 23 | 10-8M0000482 | BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4-1/8") | 24 | 10-49105 | |||||
| - | 27-65184A88 | ENGINE GASKET SET | 1 |
