454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Wiring Harness, Electrical And Ignition

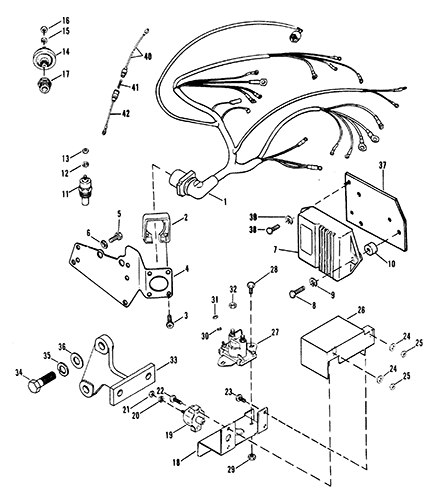

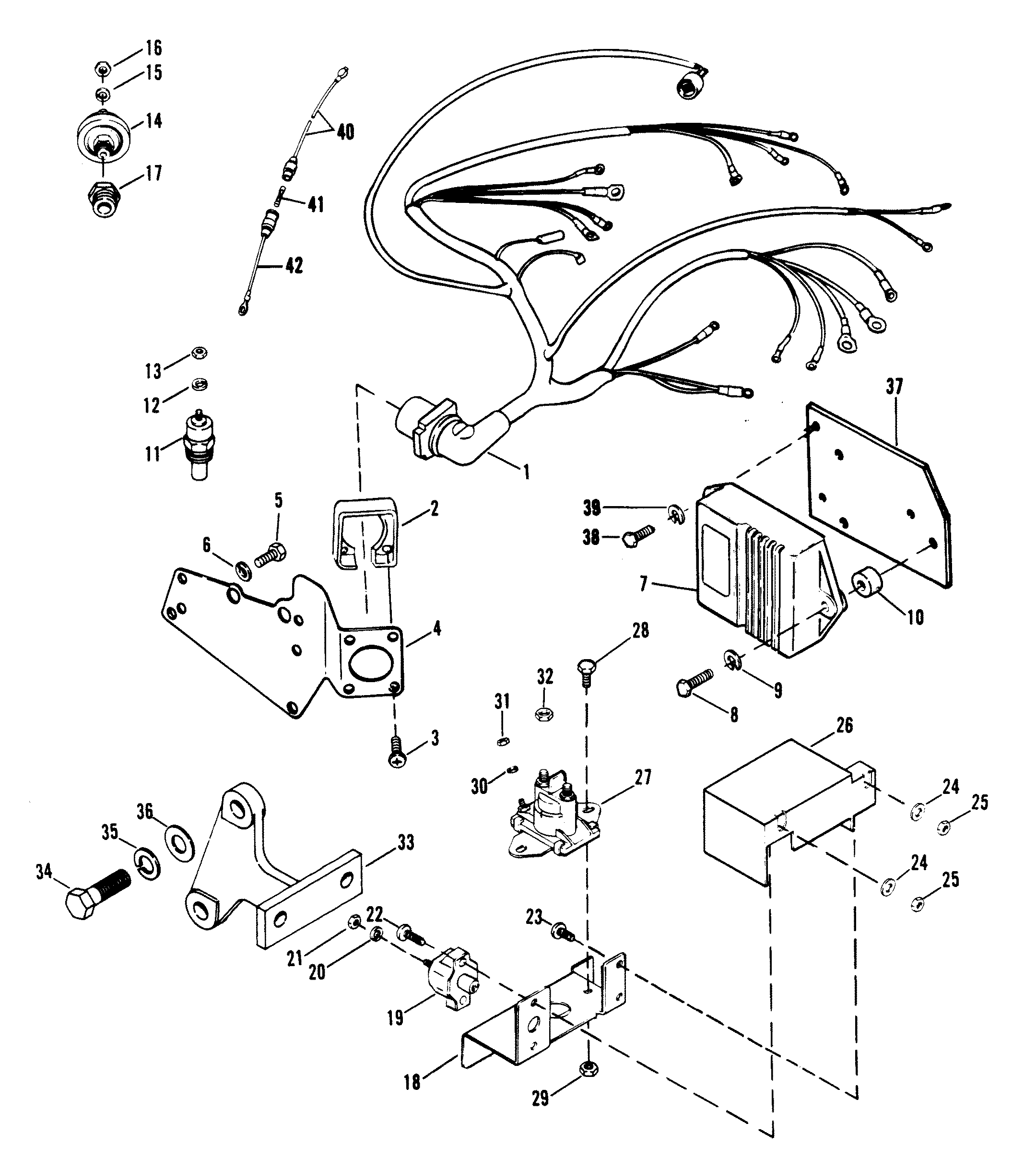

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-94111A11 | WIRING HARNESS | 1 | This Part is No Longer Available | |||||
| 2 | 26079A2 | PLATE, WIRING HARNESS | 1 | 26079 | METAL | ||||
| 3 | 10-34696 | SCREW, WIRING HARNESS PALTE (3/4") | 4 | METAL | |||||
| 2 | 26079A2 | PLATE, WIRING HARNESS | 1 | PLASTIC | |||||
| 3 | 10-15001 | SCREW, PLATE | 4 | PLASTIC | |||||
| 4 | 98493A2 | BRACKET, MOUNTING | 1 | This Part is No Longer Available | |||||
| 5 | 10-49668 | SCREW, MOUNTING BRACKET | 3 | ||||||
| 6 | 13-26992 | LOCKWASHER, MOUNTING BRACKET SCREW (5/8") | 3 | ||||||
| 7 | 15248A1 | IGNITION AMPLIFIER (W/HARNESS 84-15275A1) | 1 | This Part is No Longer Available | |||||
| 8 | 10-76630 | SCREW, IGNITION AMPLIFIER | 3 | ||||||
| 9 | 13-26992 | LOCKWASHER, IGNITION AMPLIFIER SCREW | 3 | ||||||
| 10 | 23-92152T | SPACER, IGNITION AMPLIFIER SCREW | 3 | 23-92152 | |||||
| 11 | 806490T | 676-9-42400 | WATER TEMPERATURE SENDER | 1 | 97257A1 | ||||
| 11 | 49734 | WATER TEMPERATURE SENDER (DUAL) | OPT. | 49734A1 | |||||
| 12 | 13-26996 | LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10) | 1 | ||||||
| 13 | 11-68219 | NUT, WATER TEMPERATURE SENDER TERMINAL (#10) | 1 | ||||||
| 14 | 8M0068784 | OIL PRESSURE SENDER | 1 | 90806 | |||||
| 14 | 37293T | OIL PRESSURE SENDER (DUAL) | OPT. | 37293 | |||||
| 15 | 13-26996 | LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10) | 1 | ||||||
| 16 | 11-68219 | NUT, OIL PRESSURE SENDER TERMINAL (#10) | 1 | ||||||
| 17 | 22-64013 | REDUCER, OIL PRESSURE SENDER | 1 | ||||||
| 18 | 97163 | BRACKET, MOUNTING | 1 | This Part is No Longer Available | |||||
| 19 | 88-11178A01 | CIRCUIT BREAKER (50 AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 20 | 13-26996 | LOCKWASHER, CIRCUIT BREAKER TERMINAL | 2 | ||||||
| 21 | 11-68219 | NUT, CIRCUIT BREAKER TERMINAL | 2 | ||||||
| 22 | 10-45862 | SCREW, CIRCUIT BREAKER (7/8") | 2 | ||||||
| 23 | 10-22028 | SCREW, INSULATOR | 1 | No longer made, limited availability | |||||
| 24 | 12-56681 | WASHER, CIRCUIT BREAKER SCREW | 3 | ||||||
| 25 | 11-46438 | NUT, INSULATOR SCREW | 3 | ||||||
| 26 | 85-96819T | INSULATOR, CIRCUIT BREAKER | 1 | ||||||
| 27 | 89-96054T | 700-72390 | STARTER SOLENOID | 1 | 89-96054 | ||||
| 28 | 10-96138 | SCREW, STARTER SOLENOID (5/8") | 2 | 10-47910 | |||||
| 29 | 11-20088 | NUT, STARTER SOLENOID SCREW | 2 | This Part is No Longer Available | |||||
| 30 | 13-26992 | LOCKWASHER, STARTER SOLENOID TERMINAL | 2 | ||||||
| 31 | 11-26419 | NUT, STARTER SOLENOID TERMINAL (10-32) | 2 | ||||||
| 32 | 11-94330 | NUT, STARTER SOLENOID TERMINAL (1/4-20) | 2 | ||||||
| 33 | 96940T | BRACKET, ADAPTOR | 1 | This Part is No Longer Available | |||||
| 34 | 10-37612 | SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4") | 1 | 3/8-16 THREAD | |||||
| 35 | 13-35048 | 700-21495 | LOCKWASHER, ADAPTOR BRACKET SCREW | 1 | 3/8-16 THREAD | ||||
| 36 | 12-20553 | 700-21675 | WASHER, ADAPTOR BRACKET SCREW | 1 | 3/8-16 THREAD | ||||
| 34 | 10-47462 | SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4") | 1 | 7/16-14 THREAD | |||||
| 35 | 13-32993 | LOCKWASHER, ADAPTOR BRACKET SCREW | 1 | 7/16-14 THREAD | |||||
| 36 | 12-22248 | WASHER, ADAPTOR BRACKET SCREW | 1 | 7/16-14 THREAD | |||||
| 37 | 125001 | PLATE, IGNITION AMPLIFIER | 1 | This Part is No Longer Available OLD DESIGN | |||||
| 38 | 10-76596 | SCREW, AMPLIFIER PLATE | 3 | OLD DESIGN | |||||
| 39 | 13-26992 | LOCKWASHER, AMPLIFIER PLATE SCREW | 3 | OLD DESIGN | |||||
| 40 | 84-95084A9 | WIRE ASSEMBLY, FUSE (LONG - RED) | 1 | ||||||
| 41 | 88-79091 | FUSE (20 AMP) | 1 | ||||||
| 42 | 84-95084A10 | WIRE ASSEMBLY, FUSE (SHORT - RED) | 1 | ||||||
| - | 84-11149A5 | ADAPTOR KIT | 1 | This Part is No Longer Available |
