454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Flame Arrestor (New Design)

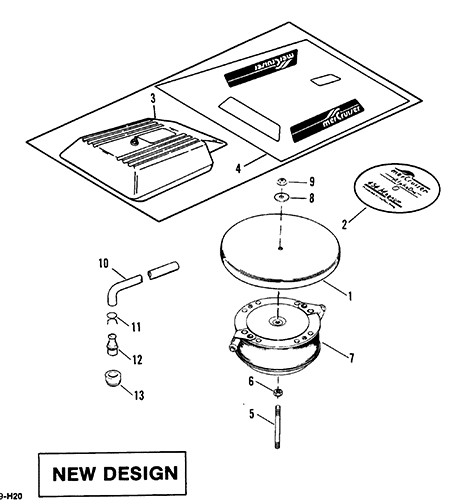

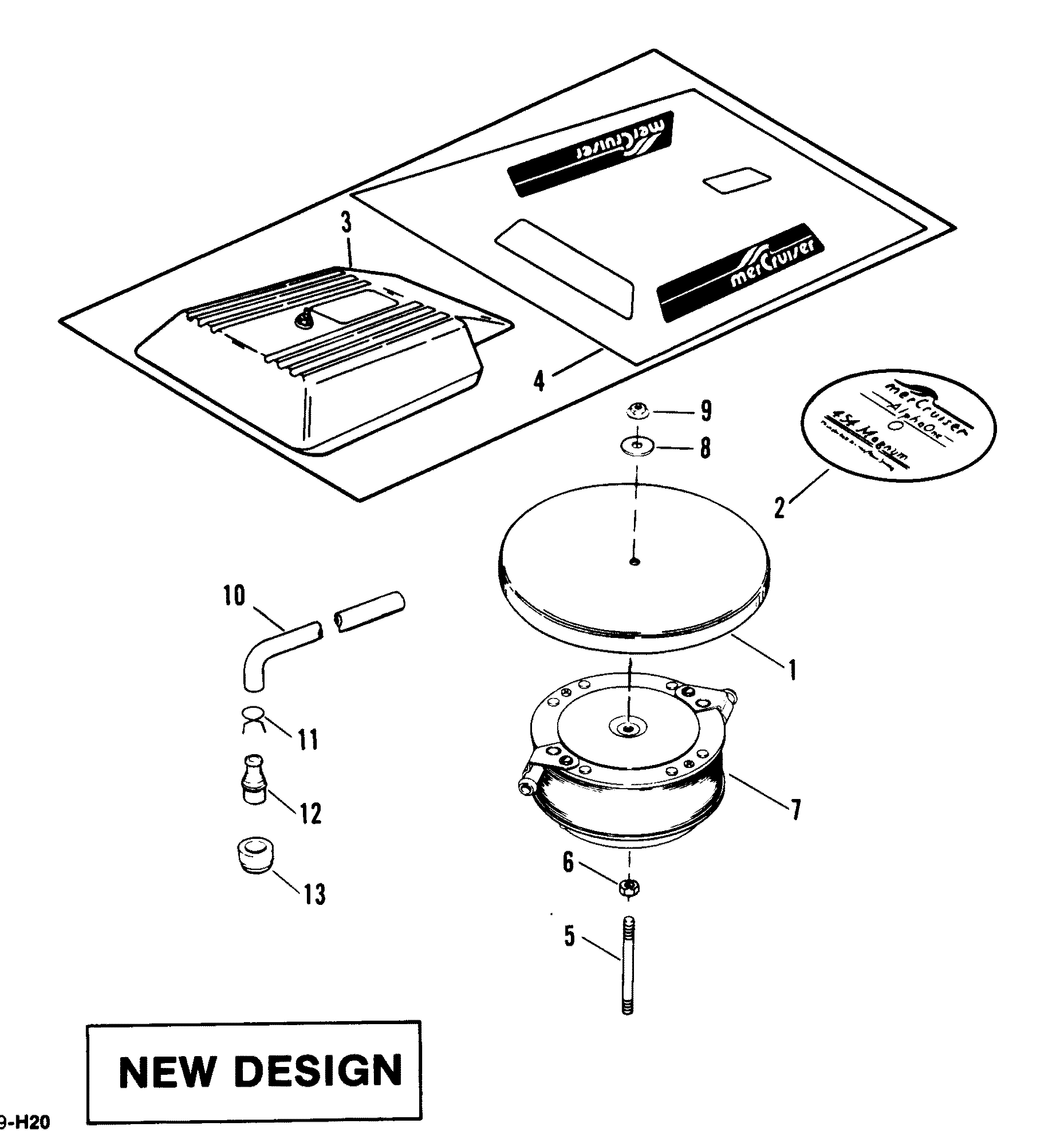

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14605T1 | COVER, CARBURETOR | 1 | 14605T | This Part is No Longer Available | ||||
| 2 | 37-1372319 | DECAL, HORSEPOWER | 1 | This Part is No Longer Available | |||||
| 3 | 18484A3 | COVER, CARBURETOR | 1 | NEW DESIGN | |||||
| 4 | 37-812776A9 | DECAL SET | 1 | This Part is No Longer Available NEW DESIGN | |||||
| 5 | 16-805161 | STUD, FLAME ARRESTOR | 1 | 16-578351 | This Part is No Longer Available | ||||
| 6 | 11-28941 | NUT, JAM - FLAME ARRESTOR | 1 | ||||||
| 7 | 805298A1 | FLAME ARRESTOR | 1 | 57882T1 | |||||
| 8 | 12-86400 | WASHER, SEALING | 1 | ||||||
| 9 | 11-826709109 | NUT, FLAME ARRESTOR STUD | 1 | 11-20586 | |||||
| 10 | 32-8M0062669 | HOSE, VENT - CARBURETOR (11-1/4") | 2 | 32-9331512 | |||||
| 11 | 54-53101 | CLAMP, VENT HOSE | 4 | This Part is No Longer Available | |||||
| 12 | 47957 | CONNECTOR, VENT HOSE (STRAIGHT) | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 12 | 97850T | ELBOW, VENT HOSE (90 ) | 1 | 97850 | |||||
| 13 | 25-59987 | GROMMET, ROCKER COVER | 2 | No longer made, limited availability |
