454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Engine Mounting (Cast Bracket)

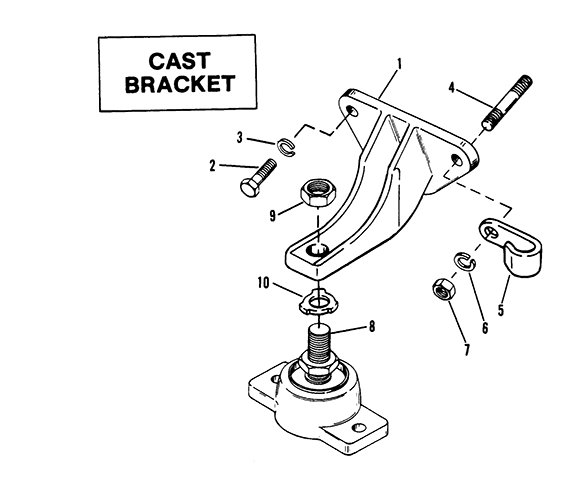

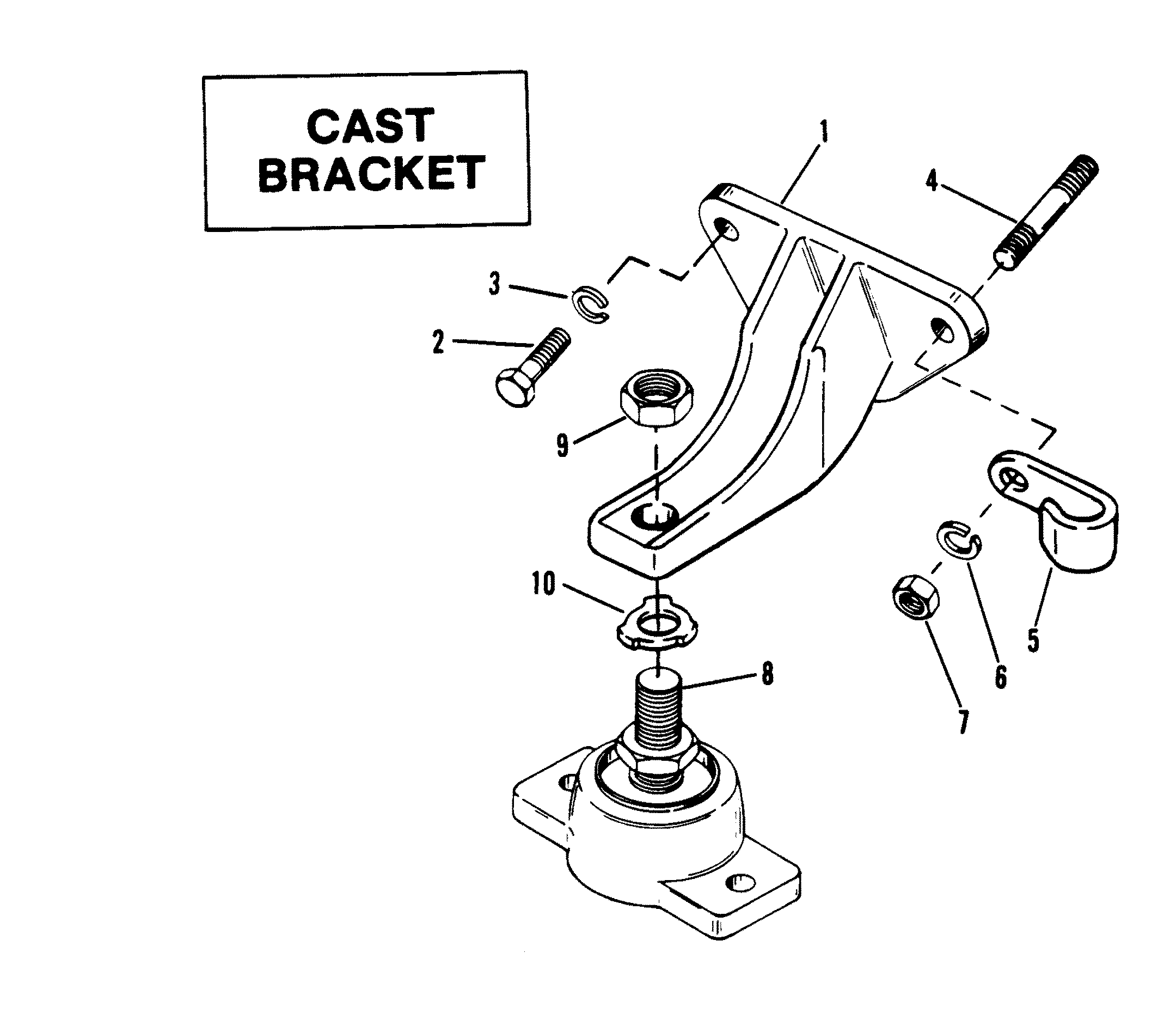

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET, MOUNTING - ENGINE (FRONT) | 2 | ||||||
| 2 | 10-68101 | SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") | 2 | PORT | |||||
| 3 | 13-35048 | LOCKWASHER, MOUNTING BRACKET SCREW | 2 | PORT | |||||
| 2 | 10-32132 | SCREW, MOUNTING BRACKET TO ENGINE | 1 | PORT | |||||
| 3 | 12-46132 | WASHER, MOUNTING BRACKET SCREW | 1 | PORT | |||||
| 2 | 10-68101 | SCREW, MOUNTING BRACKET TO ENGINE (1-1/4") | 2 | STARBOARD | |||||
| 3 | 13-35048 | LOCKWASHER, MOUNTING BRACKET SCREW | 2 | STARBOARD | |||||
| 4 | 16-64066 | STUD, MOUNTING BRACKET TO ENGINE | 1 | STARBOARD | |||||
| 5 | 54-78945 | CLIP, WIRING HARNESS | 1 | STARBOARD | |||||
| 6 | 13-35048 | LOCKWASHER, MOUNTING BRACKET STUD | 1 | STARBOARD | |||||
| 7 | 11-32219 | NUT, MOUNTING BRACKET STUD | 1 | STARBOARD | |||||
| 8 | 814263A1 | BASE, ENGINE MOUNT | 2 | ||||||
| 9 | 11-859126 | NUT, JAM - ENGINE MOUNT BASE | 4 | 11-49252 | |||||
| 10 | 14-12657 | TAB WASHER | 2 |
