5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Cylinder Head And Rocker Cover

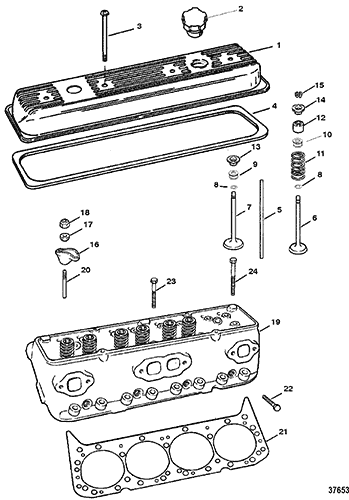

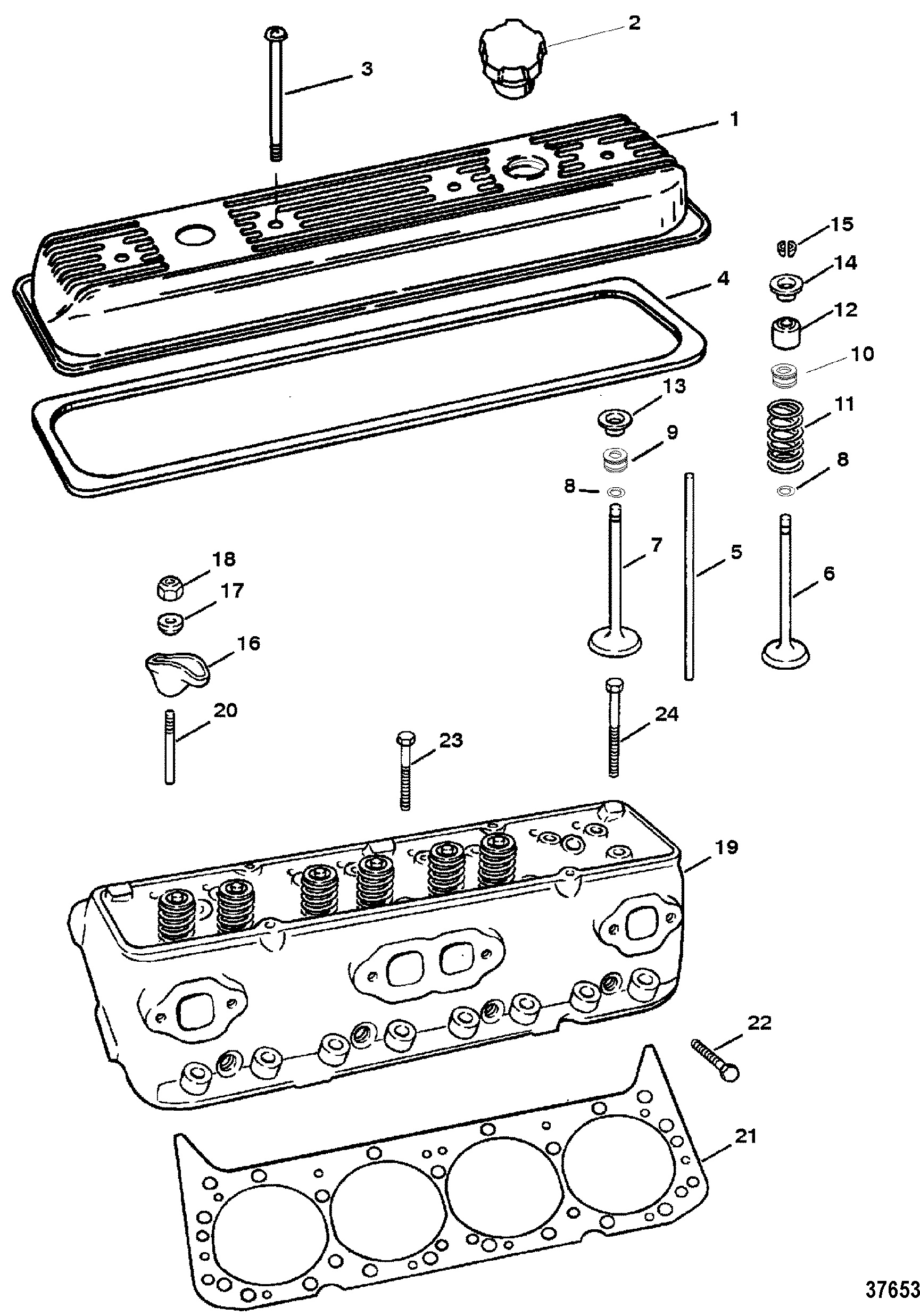

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Cast Iron Exhaust Elbow (Alpha)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold
- Exhaust Manifold - Stainless Steel Exh. Elbow(Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809995 | COVER, Rocker | 2 | ||||||
| 2 | 36-18710002 | CAP, Oil Fill | 2 | 36-187101 | |||||
| 3 | 10-17344 | SCREW | 8 | ||||||
| 4 | 27-17467 | 676-9-61305 | 700-30357 | GASKET, Rocker Cover | 2 | 3 | |||
| 5 | 99948 | PUSH ROD | 16 | USE WITH FLAT LIFTER | |||||
| 5 | 173391 | PUSH ROD | 16 | USE WITH ROLLER LIFTER | |||||
| 6 | 850095 | VALVE, Exhaust | 8 | (STANDARD) | |||||
| 6 | 850096 | VALVE, Exhaust | AR | This Part is No Longer Available (.015 O.S.) 2 | |||||
| 7 | 97661 | VALVE, Intake | 8 | (STANDARD) | |||||
| 7 | 97662 | VALVE, Intake | AR | This Part is No Longer Available (.015 O.S.) 2 | |||||
| 8 | 26-34217 | SEAL | 16 | (INTAKE AND EXHAUST) 3 | |||||
| 9 | 8M0050563 | SEAL | 8 | 26-97664 | (INTAKE) 3 | ||||
| 10 | 26-852936 | SEAL | 8 | This Part is No Longer Available (EXHAUST) No longer made, limited availability 3 | |||||
| 11 | 24-48347 | SPRING | 16 | ||||||
| 12 | 34518001 | SHIELD | 16 | 34518 | |||||
| 13 | 48348 | CAP | 8 | This Part is No Longer Available (INTAKE) | |||||
| 14 | 11965 | ROTATOR | 8 | This Part is No Longer Available (EXHAUST) | |||||
| 15 | 28-547971 | KEY | 32 | ||||||
| 16 | 35329 | ARM KIT, Rocker | 16 | ||||||
| 17 | 35331 | BALL, Rocker Arm | 16 | ||||||
| 18 | 11-34516 | NUT | 16 | ||||||
| 19 | 938-883490R1 | CYLINDER HEAD ASSEMBLY | 2 | 938-9718 | |||||
| 20 | 16-34522 | STUD | AR | (.003 O.S.) 2 | |||||
| 20 | 16-34521 | STUD | AR | This Part is No Longer Available (.013 O.S.) 2 | |||||
| 21 | 75611001 | GASKET | 2 | 27-75611 | 3 | ||||
| 22 | 10-11968 | SCREW, (.437-14 x 1.750) | 16 | ||||||
| 23 | 10-119671 | SCREW, (.437-14 x 3.00) | 4 | ||||||
| 24 | 10-11966 | SCREW, (.437-14 x 3.750) | 14 | ||||||
| - | 27-806871A96 | 700-39018 | GASKET SET, Overhaul | 1 |
