5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Electrical Box And Components

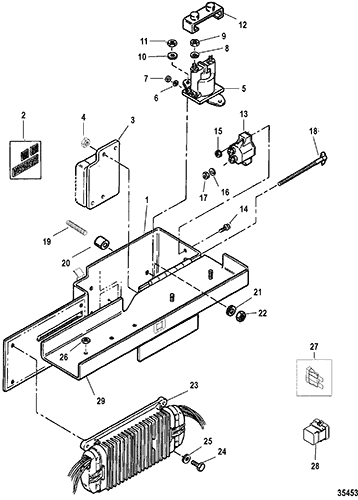

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Cast Iron Exhaust Elbow (Alpha)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold
- Exhaust Manifold - Stainless Steel Exh. Elbow(Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807323A5 | BOX ASSEMBLY, Electrical Components | 1 | ||||||
| 2 | 806762A1 | VELCRO KIT | 1 | ||||||
| 3 | 806611T | MODULE, Knock Control | 1 | ||||||
| 4 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 5 | 89-96054T | SOLENOID ASSEMBLY, Starter | 1 | 89-96054 | |||||
| 6 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 7 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 8 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 9 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 10 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 2 | ||||||
| 11 | 11-64015 | NUT, (.250-20) | 2 | ||||||
| 12 | 85-97861 | INSULATOR | 1 | ||||||
| 13 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 14 | 10-45862 | SCREW, (#10-32 x .875) | 2 | ||||||
| 15 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 16 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 17 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 18 | 805615A2 | THUMB SCREW ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 19 | 10-24323 | SET SCREW, (.250-20 x 1.25) | 3 | ||||||
| 20 | 23-806981 | SPACER | 3 | ||||||
| 21 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 22 | 11-64015 | NUT, (.250-20) | 3 | ||||||
| 23 | 861478T1 | ECM, Engine Control Module | 1 | (5.0L) | |||||
| 23 | 861542R03 | ECM, Engine Control Module | 1 | 861542T1 | This Part is No Longer Available (5.7L) | ||||
| 24 | 10-76596 | SCREW, (.250-20 x 1.250) | 4 | ||||||
| 25 | 12-20533 | WASHER | 4 | ||||||
| 26 | 11-805562 | NUT, (#10-24) | 3 | ||||||
| 27 | 88-804642 | FUSE, 15 Ampere | 1 | 805704 | No longer made, limited availability | ||||
| 27 | 88-804641 | FUSE, 10 Ampere | 1 | 805703 | |||||
| 28 | 86-865202T | RELAY, Fuel Pump | 2 | 807057 | |||||
| 29 | 805439T3 | LID, Electrical Box | 1 |
