5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Starter Motor And Alternator

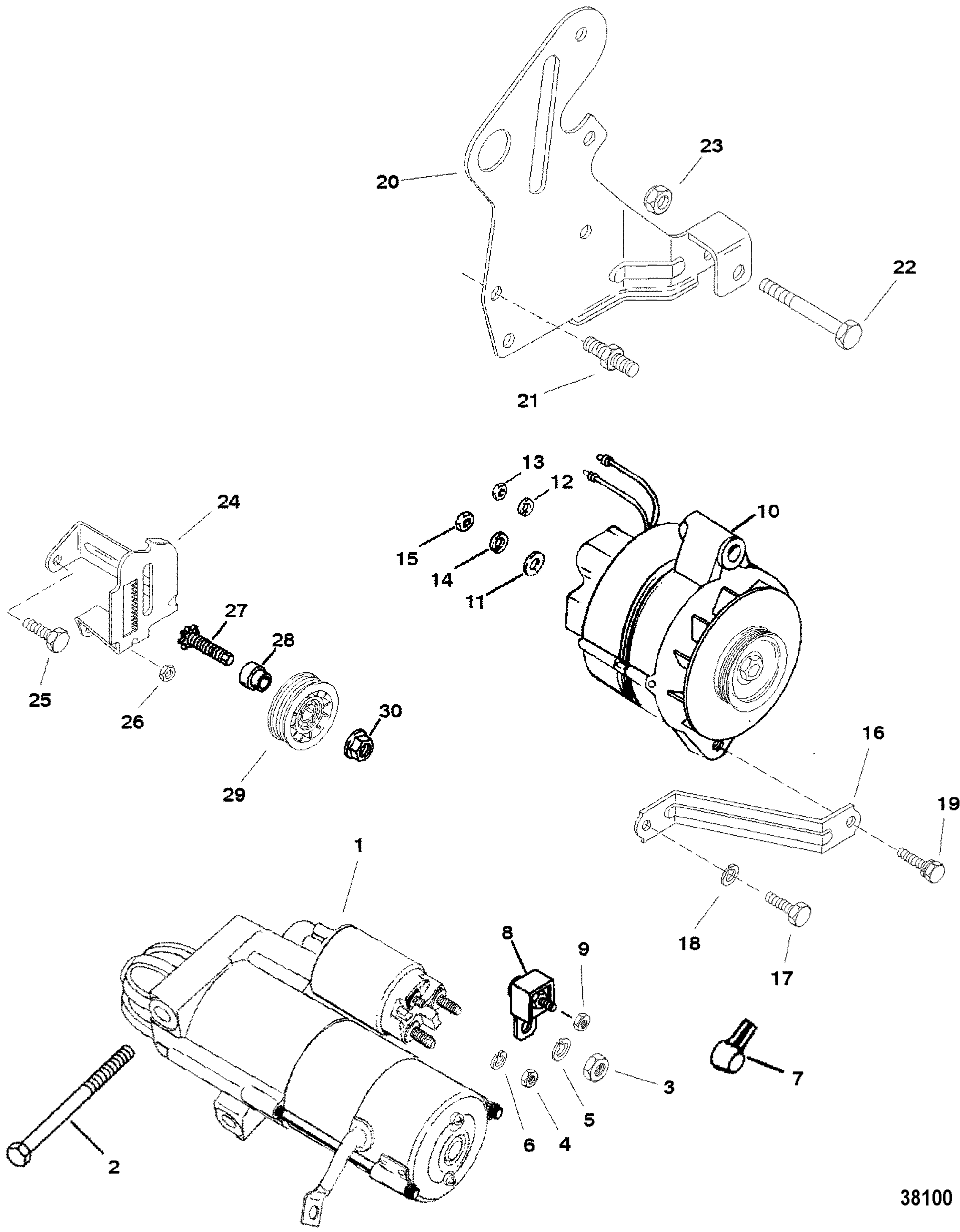

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Cast Iron Exhaust Elbow (Alpha)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold
- Exhaust Manifold - Stainless Steel Exh. Elbow(Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER MOTOR ASSEMBLY | 1 | 50-806964A3 | (SEE "STARTER MOTOR" FOR BREAKDOWN) | ||||
| 2 | 10-8053432 | SCREW, (.375-16 x 4.33) | 2 | ||||||
| 3 | 11-806949 | NUT, (M8-1.5) | 1 | ||||||
| 4 | 11-400211 | NUT, (M5) Stainless Steel | 1 | ||||||
| 5 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 6 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 7 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 8 | 88-79023A91 | FUSE ASSEMBLY, 90 Ampere | 1 | ||||||
| 9 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 10 | 807653T | ALTERNATOR ASSEMBLY | 1 | (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) | |||||
| 11 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | ||||||
| 12 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 13 | 11-79989 | NUT, (#10-24) Stainless Steel | 1 | ||||||
| 14 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 15 | 11-94330 | NUT, (.250-20) Brass | 1 | ||||||
| 16 | 807750T | BRACE | 1 | ||||||
| 17 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 18 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 19 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 20 | 860370T | BRACKET, Alternator/Power Steering | 1 | ||||||
| 21 | 16-860102 | STUD, (.375-16 x 1.730) | 3 | ||||||
| 22 | 10-56743 | SCREW, (.375-24 x 3.125) | 1 | ||||||
| 23 | 11-23161 | NUT, (.375-24) | 1 | ||||||
| 24 | 807767T | BRACKET, Idler Adjustment | 1 | ||||||
| 25 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 26 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 27 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 28 | 865193 | BUSHING | 1 | 818380T | |||||
| 29 | 807757T | PULLEY ASSEMBLY, Idler - Black | 1 | ||||||
| 30 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 |
