Bravo Three - Serial 0B664190 Thru 0F729999 - Bell Housing

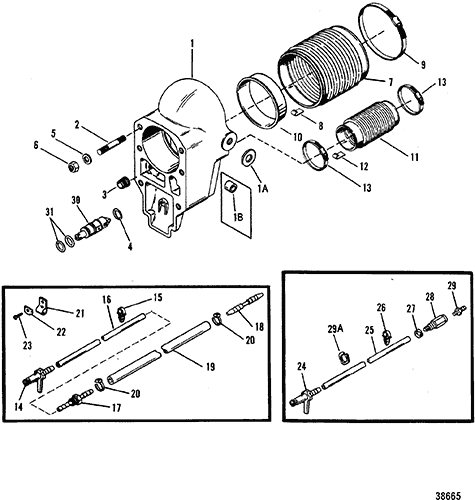

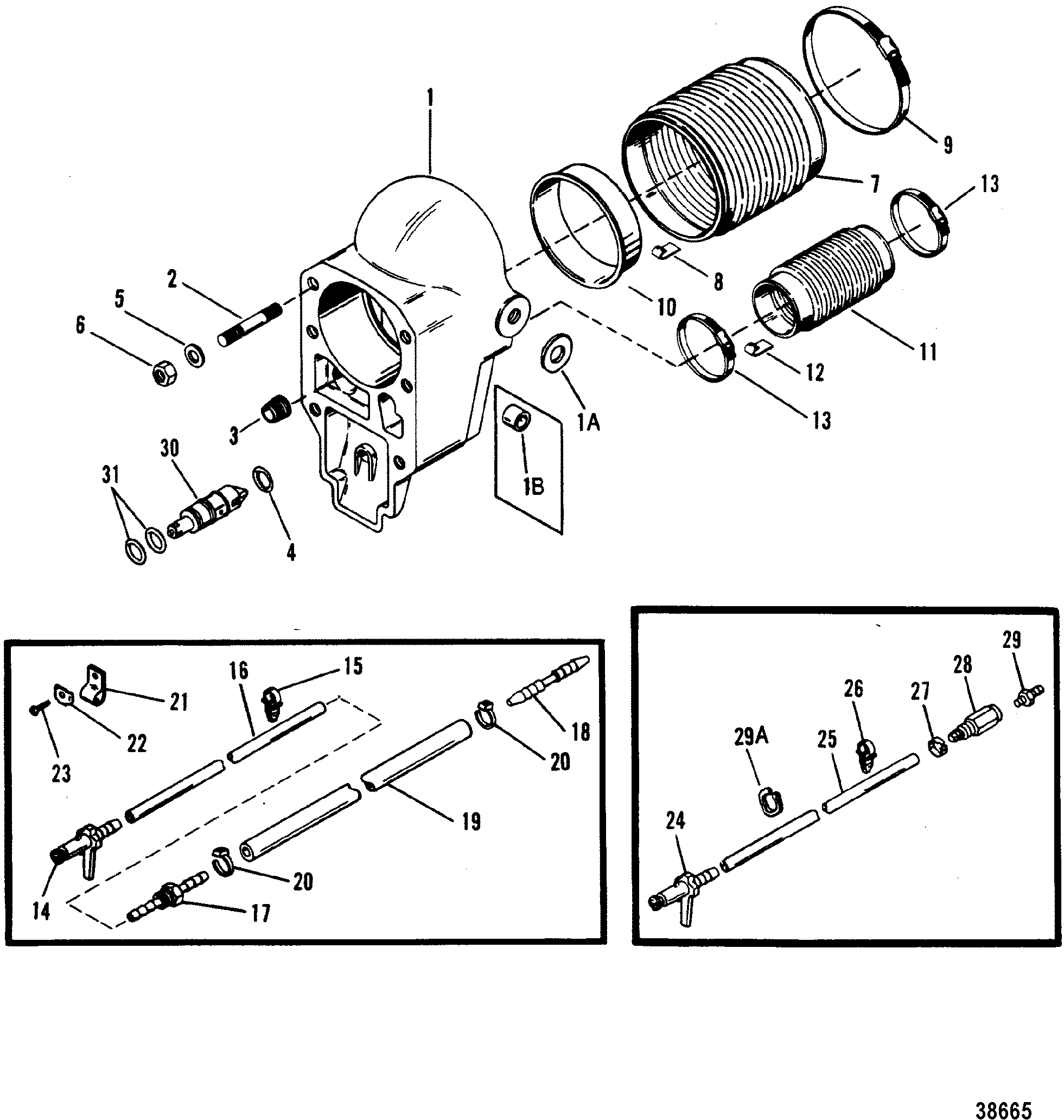

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 41646A7



BELL HOUSING ASSEMBLY, Use With Trim Senders 1

1A 12-806241



WASHER, Use With Trim Senders 2

2 16-59579



STUD, (.437-14/.437-20 x 2.812), Use With Trim Senders 6

3 41674T



INSERT, Use With Trim Senders 1 41674
4 25-62705
676-9-76506

525-25-62705
O-RING, Use With Trim Senders 1

1 41646A11



BELL HOUSING ASSEMBLY, Use Without Trim Senders 1 41646A10
1B 23-847637



BUSHING, Use Without Trim Senders 2

2 16-59579



STUD, (.437-14/.437-20 x 2.812), Use Without Trim Senders 6

3 41674T



INSERT 1 41674
4 25-62705
676-9-76506

525-25-62705
O-RING 1

5 12-35935



WASHER, (.435 x .875 x .105) Stainless Steel 6

6 11-859116

700-21170

NUT, (.4375-20) 6 11-134391
7 8M0062406



BELLOWS ASSEMBLY 1 86840A3
8 8M0062406



CLIP, Grounding 1

9 54-815504372

700-01100

CLAMP, Worm Gear 1

10 862209
676-9-73118
700-89141

SLEEVE 1 86814
11 18654A1
676-9-72703
700-89100

BELLOWS ASSEMBLY AR
14
11 78458A1
676-9-72810
700-89150

TUBE AR
14
12 54-86049
676-9-73116 700-89440
CLIP, Grounding 2

13 54-815504348

700-01070
CLAMP, Worm Gear 2

14 815303T



ADAPTOR 1 815303 (OLD DESIGN)
15 54-12994



CLIP 1
(OLD DESIGN)
16 32-5495053



TUBING, (53.00 Feet Bulk) 1
(OLD DESIGN)
17 22-43711



CONNECTOR 1
This Part is No Longer Available (OLD DESIGN)
18 22-85822



CONNECTOR, Straight 1
(OLD DESIGN)
19 32-89713



HOSE 1
(OLD DESIGN)
20 54-815504104



CLAMP, Worm Gear 2
(OLD DESIGN)
21 54-22740



CLIP 1
(OLD DESIGN)
22 69205



C WASHER 1
(OLD DESIGN)
23 10-60605



SCREW, (#10-16 x .750) 1
(OLD DESIGN)
24 815303T



ADAPTOR 1 815303 (NEW DESIGN)
25 32-5495053



TUBING, (53.00 Feet Bulk) 1
(NEW DESIGN)
26 54-12994



CLIP 1
(NEW DESIGN)
27 865261



CLAMP 1 54-816606 (NEW DESIGN)
28 865261



FITTING ASSEMBLY 1 22-816594A1 (NEW DESIGN)
29 22-814382



CONNECTOR 1
(NEW DESIGN)
29A 54-818557



CLAMP 1
(NEW DESIGN)
30 18920A1



VALVE ASSEMBLY, Use With Oil Reservoir 1

31 25-48171
676-9-76550


O-RING, (.364. x .070), Use With Oil Reservoir 2
