Bravo Three - Serial 0B664190 Thru 0F729999 - Gimbal Ring And Steering Lever

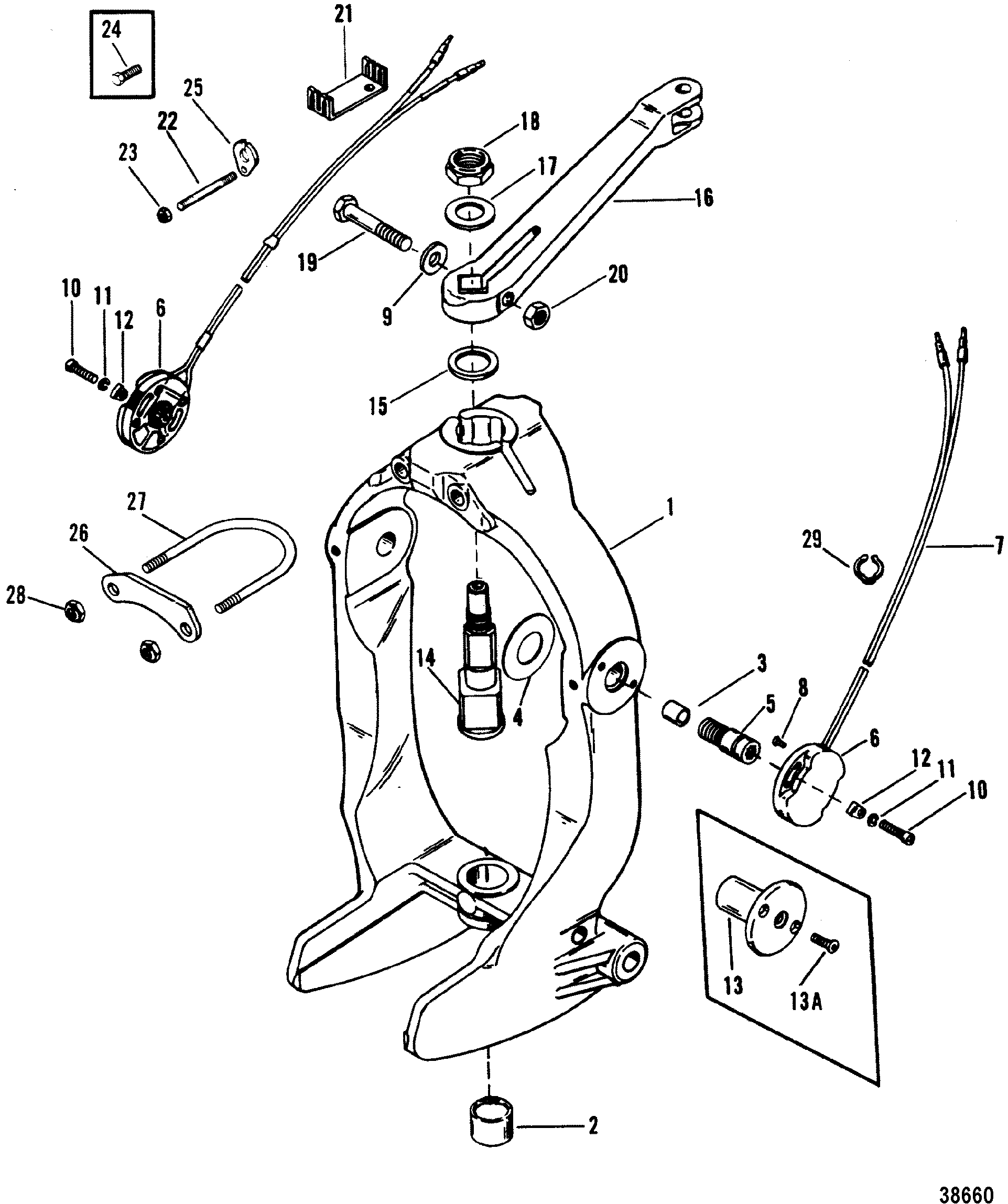

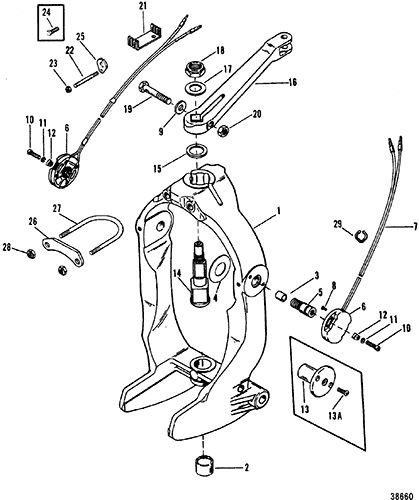

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components (Old Design)
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Universal Joint
| Note 1: OPTIONAL TRIM SENDER (80513A6) DUAL STATION SENDER KIT | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0062440 | GLMBAL RING ASSEMBLY, For Use With Trim Senders | 1 | 44211A2 | |||||
| 2 | 23-99352 | BEARING, For Use With Trim Senders | 1 | ||||||
| 3 | 23-847637 | BUSHING, For Use With Trim Senders | 2 | ||||||
| 4 | 12-41721 | 525-12-41721 | WASHER, For Use With Trim Senders | 2 | |||||
| 5 | 10-86801 | SCREW, Hinge Pin, For Use With Trim Senders | 2 | ||||||
| 6 | 64947 | 700-86494 | SENDER, For Use With Trim Senders | 1 | (OLD DESIGN) This is a plastic dummy sender only, it does not do anything. | ||||
| 7 | 84-19216 | HARNESS ASSEMBLY, For Use With Trim Senders | 1 | This Part is No Longer Available (OLD DESIGN) | |||||
| 8 | 10-46942 | SCREW, (#6-20 x .3125), For Use With Trim Senders | 2 | (OLD DESIGN) | |||||
| 6 | 805320A03 | SWITCH ASSEMBLY, For Use With Trim Senders | 1 | 805320A1 | |||||
| 9 | 12-861854 | 525-12-861854 | WASHER, For Use With Trim Senders | 1 | 12-91964 | ||||
| 10 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel, For Use With Trim Senders | 4 | ||||||
| 11 | 13-26996 | LOCKWASHER, (#10) Stainless Steel, For Use With Trim Senders | 4 | ||||||
| 12 | 57008 | RETAINER, For Use With Trim Senders | 4 | ||||||
| 1 | 822374A17 | GIMBAL RING ASSEMBLY, For Use Without Trim Senders | 1 | 822374A3 | |||||
| 2 | 23-847638 | BUSHING, For Use Without Trim Senders | 1 | ||||||
| 4 | 12-41721 | 525-12-41721 | WASHER, For Use Without Trim Senders | 2 | |||||
| 13 | 821997 | PIN, Hinge, For Use Without Trim Senders | 2 | ||||||
| 13A | 10-821579 | SCREW, (#10-24 x .500), For Use Without Trim Senders | 4 | ||||||
| 14 | 98230A1 | SHAFT ASSEMBLY | 1 | ||||||
| 15 | 12-98548 | WASHER, (1.125 ) | 1 | ||||||
| 16 | 866322A01 | LEVER ASSEMBLY | 1 | 98262A1 | |||||
| 17 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 18 | 11-8M2014641 | NUT, (.750-16) | 1 | 11-25599 | |||||
| 19 | 10-807204 | SCREW, (.437-20 x 2.00) | 1 | 10-32995 | |||||
| 20 | 11-8M2008293 | NUT, (.437-20) | 1 | 11-98533 | |||||
| 21 | 79146 | RETAINER | 1 | ||||||
| 22 | 16-8M0034450 | STUD, (.250-20/.250-28 x 1.01) | 1 | 16-12097 | |||||
| 23 | 11-8267119 | NUT, (.250-28) | 1 | 11-13438 | |||||
| 24 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | (NEW DESIGN) | |||||
| 25 | 54-12078 | CLAMP | 1 | ||||||
| 26 | 816510T | BRACKET | 1 | ||||||
| 27 | 10-805164 | U BOLT | 1 | ||||||
| 28 | 11-862903 | NUT, (.375-24) | 2 | 11-134371 | |||||
| 29 | 54-818557 | CLAMP | 1 | ||||||
