Bravo Three - Serial 0B664190 Thru 0F729999 - Power Steering Components (Old Design)

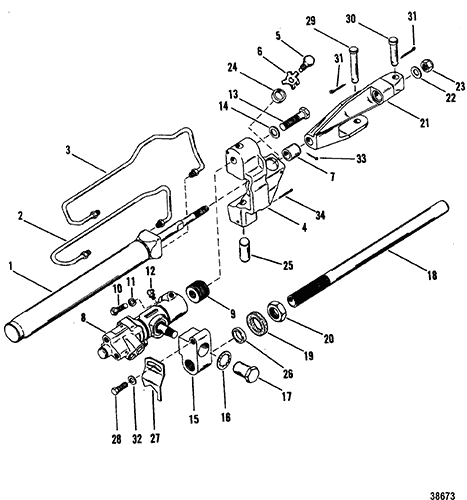

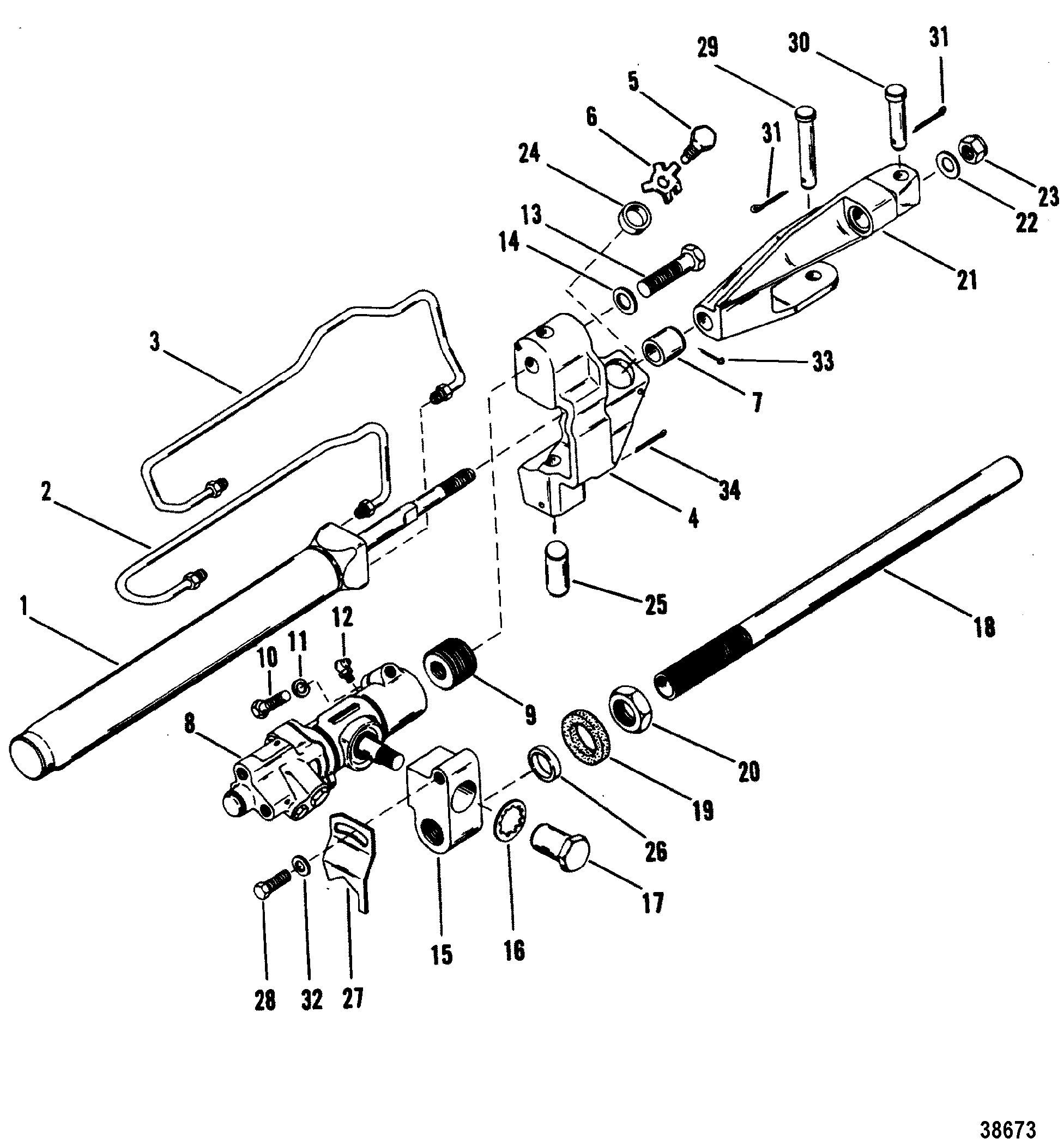

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components (Old Design)
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Universal Joint
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 57969A12 | CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT) | 1 | This Part is No Longer Available | |||||
| 2 | 32-92054 | TUBE, Extending | 1 | ||||||
| 3 | 32-92055 | TUBE, Retracting | 1 | ||||||
| 4 | 94953A1 | BRACKET ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 5 | 10-42253 | BOLT | 2 | ||||||
| 6 | 14-42254 | WASHER | 2 | ||||||
| 7 | 23-88282 | SLEEVE | 1 | This Part is No Longer Available | |||||
| 8 | 816458A1 | VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT) | 1 | This Part is No Longer Available | |||||
| 9 | 88280 | ADAPTOR | 1 | This Part is No Longer Available | |||||
| 10 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 1 1 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | |||||
| 12 | 22-67305 | FITTING, Grease | 1 | no longer made, limited availability | |||||
| 13 | 10-88281 | SCREW, (.500-20 x 1.750) | 1 | This Part is No Longer Available | |||||
| 14 | 12-20959 | WASHER | 1 | ||||||
| 15 | 88285 | ADAPTOR | 1 | This Part is No Longer Available | |||||
| 16 | 13-76629 | LOCKWASHER, Internal Tooth (.750) | 1 | ||||||
| 17 | 11-55111 | NUT | 1 | This Part is No Longer Available | |||||
| 18 | 96511 | TUBE ASSEMBLY, Steering | 1 | 96511A1 | |||||
| 19 | 88287 | GUIDE | 1 | This Part is No Longer Available | |||||
| 20 | 11-32882 | NUT, (.875-14) | 1 | ||||||
| 21 | 95848A1 | CLEVIS ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 22 | 12-20086 | WASHER, (.390 x .620 x .060) | 1 | ||||||
| 23 | 11-53300 | NUT, (.375-24) | 1 | This Part is No Longer Available | |||||
| 24 | 23-95803 | BUSHING | 2 | ||||||
| 25 | 17-88283 | PIN, Retaining | 2 | This Part is No Longer Available | |||||
| 26 | 23-88286 | BUSHING | 1 | This Part is No Longer Available | |||||
| 27 | 92766 | LOCK | 1 | This Part is No Longer Available | |||||
| 28 | 10-41209 | SCREW | 1 | This Part is No Longer Available | |||||
| 29 | 17-89229 | PIN, Clevis | 1 | ||||||
| 30 | 17-52798 | PIN, Clevis | 1 | ||||||
| 31 | 18-46950 | COTTER PIN | 2 | ||||||
| 32 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 33 | 18-34212 | COTTER PIN | 1 | ||||||
| 34 | 806034A2 | ACTUATOR ASSEMBLY, Power Steering | 1 |
