Bravo Three - Serial 0B664190 Thru 0F729999 - Transom Plate And Shift Cable

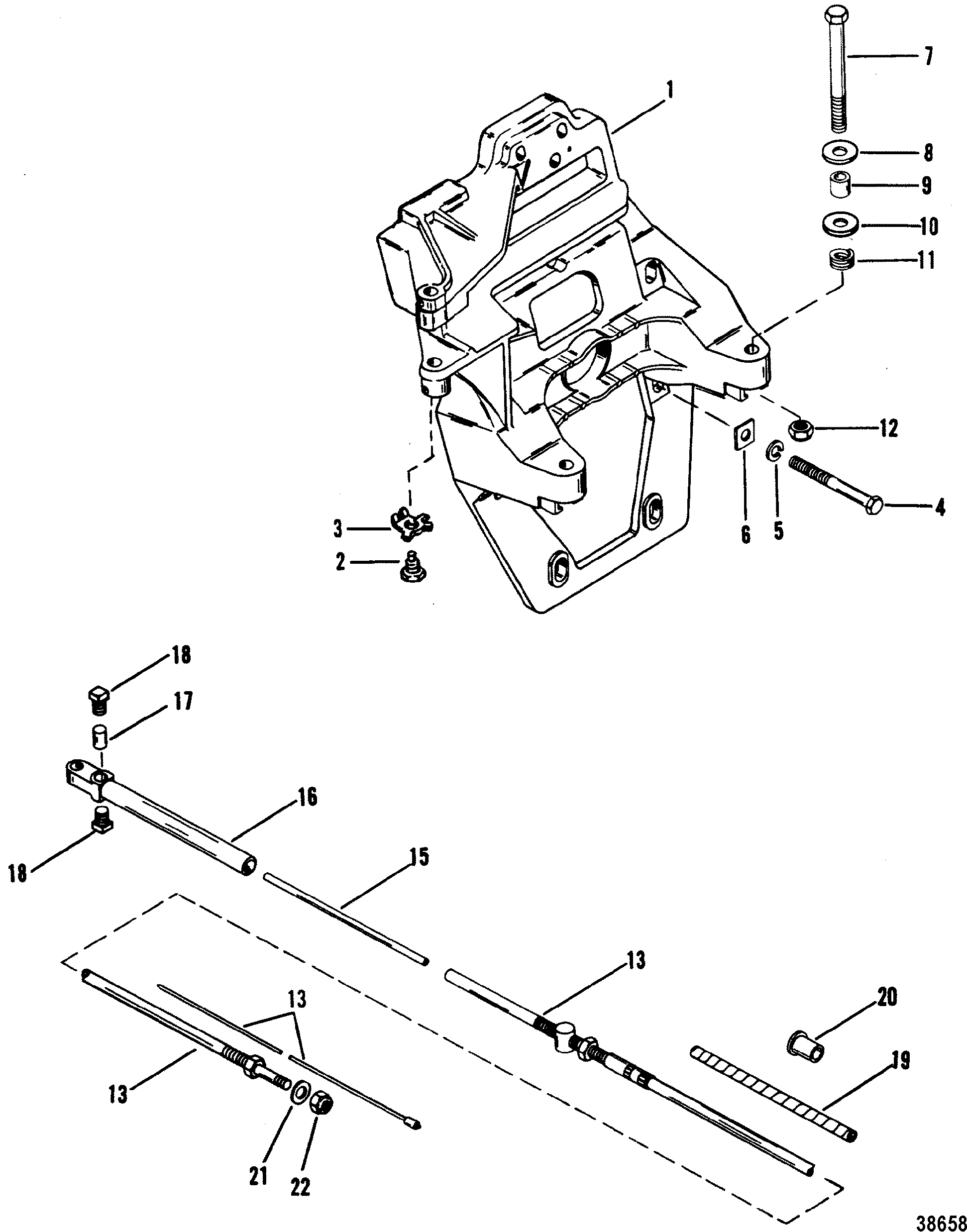

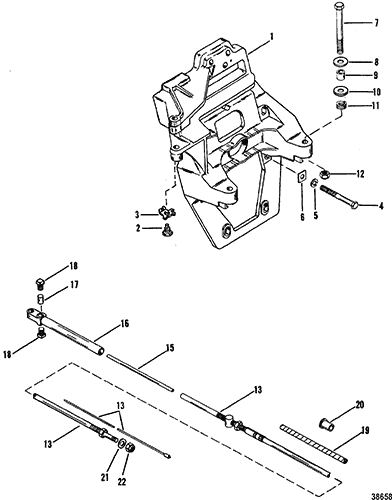

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	44117A8					PLATE ASSEMBLY, Transom	1
2	10-42253					BOLT	2
3	14-42254					WASHER	2
4	10-37268					SCREW, (.437-14 x 4.250)	2		(OLD DESIGN)
5	13-32993					LOCKWASHER	2	13-37272	(OLD DESIGN)
6	12-37271					WASHER	2		(OLD DESIGN)
7	10-97934			700-19310		SCREW, (.500-20 x 5.370) Special	2
8	12-35777			700-19320		WASHER, (.5156 x 1.375 x .125) Aluminium	2
9	23-99299			700-19340		SPACER, (.520 x .870 x .630)	2
10	12-32834			700-30020		WASHER, (.9375 x 1.750 x .172)	2
11	13-33734			700-19330		LOCKWASHER	2	13-33734A1
12	11-863332			700-19350		NUT, (.500-20)	2	11-99298
13	865437A02		676-9-72156			CABLE ASSEMBLY	1	815471A3
15	32-17994					TUBE	1		(OLD DESIGN) No longer made, limited availability
-	43433A01					GUIDE KIT	1
16	43433		676-9-72150	700-21430		GUIDE	1
17	43436			700-21432		ANCHOR	1
18	10-20518		676-9-72164	700-21433		SET SCREW, (#8-32)	2
19	90412					WRAPPING, (1.16 Feet Bulk)	1
20	14705			700-21463		INSERT	1
21	12-815472			700-32600		WASHER	1
22	11-54947					NUT, (.312-24)	1
22	11-49910			700-21162		NUT, (.375-24)	1
