Bravo Three - Serial 0M100001 Thru 0W249999 - Gear Housing (Bravo Three)

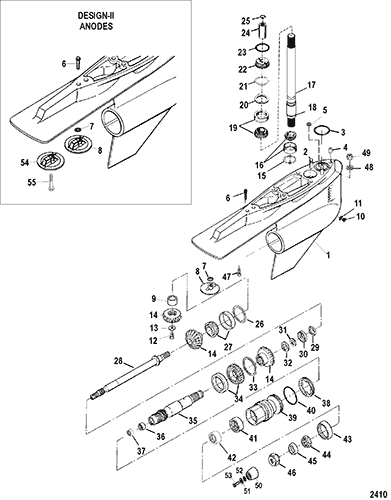

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears (Standard)
- Gear Housing (Bravo One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump - Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump - Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump - Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump - Motor (Top Mt Reservoir) (Design III - 14336A31)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Gear Housing (Bravo Three)
- Special Tools-Gear Housing (Bravo Two)
- Special Tools-Transom
- Sterndrive Unit Chart (Gasoline) Bravo I-II-III
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (Standard)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1656-8866G02 | GEAR HOUSING ASSEMBLY, (15/19) (Complete) | 1 | 1656-8866A65 | (DESIGN-I)(1.36:1 - 1.50:1 Ratio) | ||||
| - | 1656-8866G02 | GEAR HOUSING ASSEMBLY, Complete (15/19) (Complete) | 1 | (DESIGN-II)(1.36:1 - 1.50:1 Ratio) | |||||
| - | 1656-8866G08 | GEAR HOUSING ASSEMBLY, (18/25) (Complete) | 1 | 1656-8866A66 | (DESIGN-I)(1.65:1 Ratio) | ||||
| - | 1656-8866G08 | GEAR HOUSING ASSEMBLY, Complete (18/25) (Complete) | 1 | 1656-8866G03 | (DESIGN-II)(1.65:1 Ratio) | ||||
| - | 1656-8866G09 | GEAR HOUSING ASSEMBLY, (16/27) (Complete) | 1 | 1656-8866A67 | (DESIGN-I)(1.81:1 - 2.00:1 - 2.20:1 Ratio) | ||||
| - | 1656-8866G09 | GEAR HOUSING ASSEMBLY, Complete (16/27) (Complete) | 1 | 1656-8866G04 | (DESIGN-II)(1.81:1 - 2.00:1 - 2.20:1 Ratio) | ||||
| - | 1656-8866G10 | GEAR HOUSING ASSEMBLY, (13/24) (Complete) | 1 | 1656-8866A68 | (DESIGN-I)(2.43:1 Ratio) | ||||
| - | 1656-8866G10 | GEAR HOUSING ASSEMBLY, (13/24) (Complete) | 1 | 1656-8866G05 | (DESIGN-II)(2.43:1 Ratio) | ||||
| 1 | 1656-8866G01 | GEAR HOUSING ASSEMBLY, Basic | 1 | 1656-8866A38 | (DESIGN-I) | ||||
| 1 | 1656-8866G01 | GEAR HOUSING ASSEMBLY, Basic, Basic | 1 | (Design-II) | |||||
| 2 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 3 | 25-33465 | O-RING | 1 | ||||||
| 4 | 26-805344 | SEAL, (.625 Outside Diameter) | 1 | ||||||
| 5 | 26-455771 | SEAL | 1 | ||||||
| 6 | 10-806327 | SCREW, (.437-14 x 1.750) | 1 | ||||||
| 7 | 13-806210 | LOCKWASHER, (.437) | 1 | ||||||
| 8 | 76214Q5 | ANODE KIT | 1 | ||||||
| 9 | 31-86754T | BEARING ASSEMBLY, Roller | 1 | ||||||
| 10 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||||
| 11 | 12-191833 | WASHER | 1 | 12-191832 | |||||
| 12 | 10-34353 | SCREW, (.375-16 x 1.00) | 1 | ||||||
| 13 | 12-805068 | WASHER | 1 | ||||||
| 14 | 43-805448A1 | GEAR SET, (15/19) | 1 | (1.36:1 - 1.50:1 Ratio) | |||||
| 14 | 43-824517A1 | GEAR SET, (18/25) | 1 | (1.65:1 Ratio) | |||||
| 14 | 43-822535A1 | GEAR SET, (16/27) | 1 | (1.81:1 - 2.00:1 - 2.20:1 Ratio) | |||||
| 14 | 43-828336A1 | GEAR SET, (13/24) | 1 | (2.43:1 Ratio) | |||||
| 15 | 15-92914A1 | SHIM KIT | AR | ||||||
| 16 | 31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | |||||
| 17 | 45-858517A3 | DRIVESHAFT ASSEMBLY, (16.085 Long) | 1 | ||||||
| 18 | 31-815901 | RACE, Bearing | 1 | ||||||
| 19 | 31-86748A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 20 | 14-86739 | TAB WASHER | 1 | ||||||
| 21 | 15-86749A1 | SHIM KIT | AR | ||||||
| 22 | 23-92916 | SPACER | 1 | ||||||
| 23 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | ||||
| 24 | 88243A3 | COUPLING ASSEMBLY | 1 | ||||||
| 25 | 53-88242 | RING, Retaining | 1 | ||||||
| 26 | 15-87157A1 | SHIM KIT | AR | ||||||
| 27 | 31-86752A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 28 | 44-865322T | PROPELLER SHAFT (INNER) | 1 | 44-805073T | SN# 0M179451 & Below | ||||
| 28 | 44-865322T | PROPELLER SHAFT, Inner | 1 | SN# 0M179452 & Up | |||||
| 29 | 31-805322 | BEARING, Caged Roller | 1 | ||||||
| 30 | 23-8050721 | BUSHING | 1 | 23-805072 | |||||
| 31 | 15-805627A1 | SHIM ASSEMBLY | AR | ||||||
| 32 | 53-805096 | RING, Retaining | 1 | ||||||
| 33 | 15-805078A1 | SHIM ASSEMBLY | AR | ||||||
| 34 | 31-805182A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 35 | 44-865315A02 | PROPELLER SHAFT, Outer | 1 | 44-805074A2 | |||||
| 36 | 31-57410 | BEARING, Roller | 1 | ||||||
| 37 | 26-861695 | SEAL | 1 | no longer made, limited availability | |||||
| 38 | 8M2013382 | RETAINER | 1 | 805330 | |||||
| 39 | 865876A01 | CARRIER ASSEMBLY, Bearing | 1 | 805329A1 | |||||
| 40 | 25-805331 | O-RING | 1 | ||||||
| 41 | 31-805079T | BEARING, Roller | 1 | ||||||
| 42 | 26-861694 | SEAL, Oil | 1 | ||||||
| 43 | 805100 | THRUST HUB (FRONT) | 1 | 805100T | |||||
| 44 | 11-859131 | PROP NUT, Front | 1 | ||||||
| 45 | 805101T | THRUST HUB (REAR) | 1 | ||||||
| 46 | 11-862907 | PROP NUT, Rear | 1 | ||||||
| 47 | 10-90084 | 525-10-90084 | SCREW, (.437-14 x 1.500) | 1 | |||||
| 48 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 2 | ||||||
| 49 | 11-35053 | NUT, (.437-20) | 2 | ||||||
| 50 | 865182A01 | ANODE KIT, Aluminium, Propeller Shaft | 1 | ||||||
| 50 | 865182A02 | ANODE KIT, Magnesium, Propeller Shaft | 1 | ||||||
| 51 | 12-814806 | 700-21662 | WASHER, Flat | 1 | |||||
| 52 | 13-72521 | LOCKWASHER, Internal Tooth | 1 | ||||||
| 53 | 10-865323 | SCREW | 1 | ||||||
| 54 | 762144 | ANODE | 1 | (DESIGN-II) SN# 0M179452 & Up | |||||
| 55 | 10-865321 | SCREW, (.437-14 x 1.250) | 1 | (DESIGN-II) SN# 0M179452 & Up | |||||
| - | 26-76868A04 | SEAL KIT | 1 | 26-76868A2 | |||||
| - | 888761Q01 | ANODE KIT, Aluminium | AR | 888761A1 | (Bravo III) SN# 0M17945 & Below | ||||
| - | 888761Q04 | ANODE KIT, Aluminium | 1 | 888761Q02 | (Bravo III) SN# 0M179452 & Up | ||||
| - | 888760Q03 | ANODE KIT, Magnesium | AR | 888760A1 | (Bravo III) SN# 0M17945 & Below | ||||
| - | 888760Q04 | ANODE KIT, Magnesium | 1 | 888760Q02 | (Bravo III) SN# 0M179452 & Up |
