Bravo Three - Serial 0M100001 Thru 0W249999 - Sterndrive Unit Chart (Gasoline) Bravo I-II-III

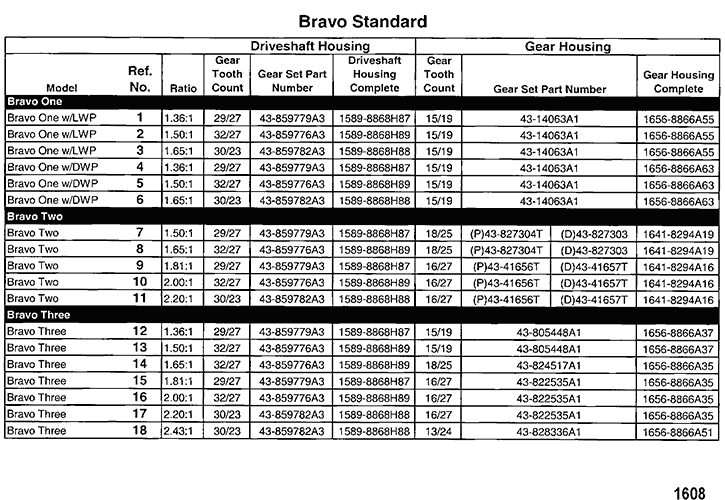

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 5-5C31100LP         STERNDRIVE UNIT COMPLETE (Complete) 1   This Part is No Longer Available (Bravo One) (WITH LWP) (1.36:1 Ratio)
1 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
1 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
1 1656-8866A55         GEAR HOUSING ASSEMBLY (Complete) 1

1 43-14063A1         GEAR SET, (15/19) 1

2 5-5C31200LP         STERNDRIVE UNIT COMPLETE (Complete) 1   This Part is No Longer Available (Bravo One) (WITH LWP) (1.50:1 Ratio)
2 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
2 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
2 1656-8866A55         GEAR HOUSING ASSEMBLY (Complete) 1

2 43-14063A1         GEAR SET, (15/19) 1

3 5-5C31300LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo One) (WITH LWP) (1.65:1 Ratio)
3 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H88
3 43-883479A2         GEAR SET, (30/23) 1 43-859782A3
3 1656-8866A55         GEAR HOUSING ASSEMBLY (Complete) 1

3 43-14063A1         GEAR SET, (15/19) 1

4 5-5231100NP         STERNDRIVE UNIT (Complete) 1
(Bravo One) (WITH DWP) (1.36:1 Ratio)
4 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
4 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
4 1656-8866A63         GEAR HOUSING ASSEMBLY (Complete) 1

4 43-14063A1         GEAR SET, (15/19) 1

5 5-5231200NP         STERNDRIVE UNIT (Complete) 1
(Bravo One) (WITH DWP) (1.50:1 Ratio)
5 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
5 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
5 1656-8866A63         GEAR HOUSING ASSEMBLY (Complete) 1

5 43-14063A1         GEAR SET, (15/19) 1

6 5-5231300NP         STERNDRIVE UNIT (Complete) 1
(Bravo One) (WITH DWP) (1.65:1 Ratio)
6 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H88
6 43-883479A2         GEAR SET, (30/23) 1 43-859782A3
6 1656-8866A63         GEAR HOUSING ASSEMBLY (Complete) 1

6 43-14063A1         GEAR SET, (15/19) 1

7 5-5331200LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo Two) (1.50:1 Ratio)
7 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
7 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
7 1641-8294A19         GEAR HOUSING ASSEMBLY (Complete) 1

7 43-827304T         GEAR, (18/25) 1

7 43-827303         GEAR, DRIVE 1

8 5-5331300LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo Two) (1.65:1 Ratio)
8 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
8 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
8 1641-8294A19         GEAR HOUSING ASSEMBLY (Complete) 1

8 43-827304T         GEAR, (18/25) 1

8 43-827303         GEAR, DRIVE 1

9 5-5331400LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo Two) (1.81:1 Ratio)
9 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
9 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
9 1641-8294A16         GEAR HOUSING ASSEMBLY (Complete) 1

9 43-41656T         GEAR, (16/27) 1

9 43-41657T         GEAR, DRIVE 1

10 5-5331600LP         STERNDRIVE UNIT (Complete) 1
(Bravo Two) (2.00:1 Ratio)
10 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
10 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
10 1641-8294A16         GEAR HOUSING ASSEMBLY (Complete) 1

10 43-41656T         GEAR, (16/27) 1

10 43-41657T         GEAR, DRIVE 1

11 5-5331500LP         STERNDRIVE UNIT (Complete) 1
(Bravo Two) (2.20:1 Ratio)
11 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H88
11 43-883479A2         GEAR SET, (30/23) 1 43-859782A3
11 1641-8294A16         GEAR HOUSING ASSEMBLY (Complete) 1

11 43-41656T         GEAR, (16/27) 1

11 43-41657T         GEAR, DRIVE 1

12 5-5441100LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo Three) (1.36:1 Ratio)
12 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
12 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
12 1656-8866G02         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A37
12 43-805448A1         GEAR SET, (15/19) 1

13 5-5441200LP         STERNDRIVE UNIT (Complete) 1   This Part is No Longer Available (Bravo Three) (1.50:1 Ratio)
13 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
13 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
13 1656-8866G02         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A37
13 43-805448A1         GEAR SET, (15/19) 1

14 5-5441300LP         (Complete) 1   This Part is No Longer Available (Bravo Three) (1.65:1 Ratio)
14 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
14 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
14 1656-8866G09         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A35
14 43-824517A1         GEAR SET, (18/25) 1

15 5-5441400LP         STERNDRIVE UNIT (Complete) 1
(Bravo Three) (1.81:1 Ratio)
15 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H87
15 43-883476A2         GEAR SET, (29/27) 1 43-859779A3
15 1656-8866G09         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A35
15 43-822535A1         GEAR SET, (16/27) 1

16 5-5441600LP         STERNDRIVE UNIT (Complete) 1
(Bravo Three) (2.00:1 Ratio)
16 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H89
16 43-883473A2         GEAR SET, (32/27) 1 43-859776A3
16 1656-8866G09         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A35
16 43-822535A1         GEAR SET, (16/27) 1

17 5-5441500LP         STERNDRIVE UNIT (Complete) 1
(Bravo Three) (2.20:1 Ratio)
17 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H88
17 43-883479A2         GEAR SET, (30/23) 1 43-859782A3
17 1656-8866G09         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A35
17 43-822535A1         GEAR SET, (16/27) 1

18 5-5441700LP         STERNDRIVE UNIT, Bravo III 2.43:1 (Complete) 1   This Part is No Longer Available (Bravo Three) (2.43:1 Ratio)
18 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (Complete) 1 1589-8868H88
18 43-883479A2         GEAR SET, (30/23) 1 43-859782A3
18 1656-8866G10         GEAR HOUSING ASSEMBLY (Complete) 1 1656-8866A51
18 43-828336A1         GEAR SET, (13/24) 1

NS 5-5441700LP         STERNDRIVE UNIT, Bravo III 2.43:1 1   This Part is No Longer Available
