Bravo Three - Serial 0M100001 Thru 0W249999 - Gear Housing (Bravo Two)

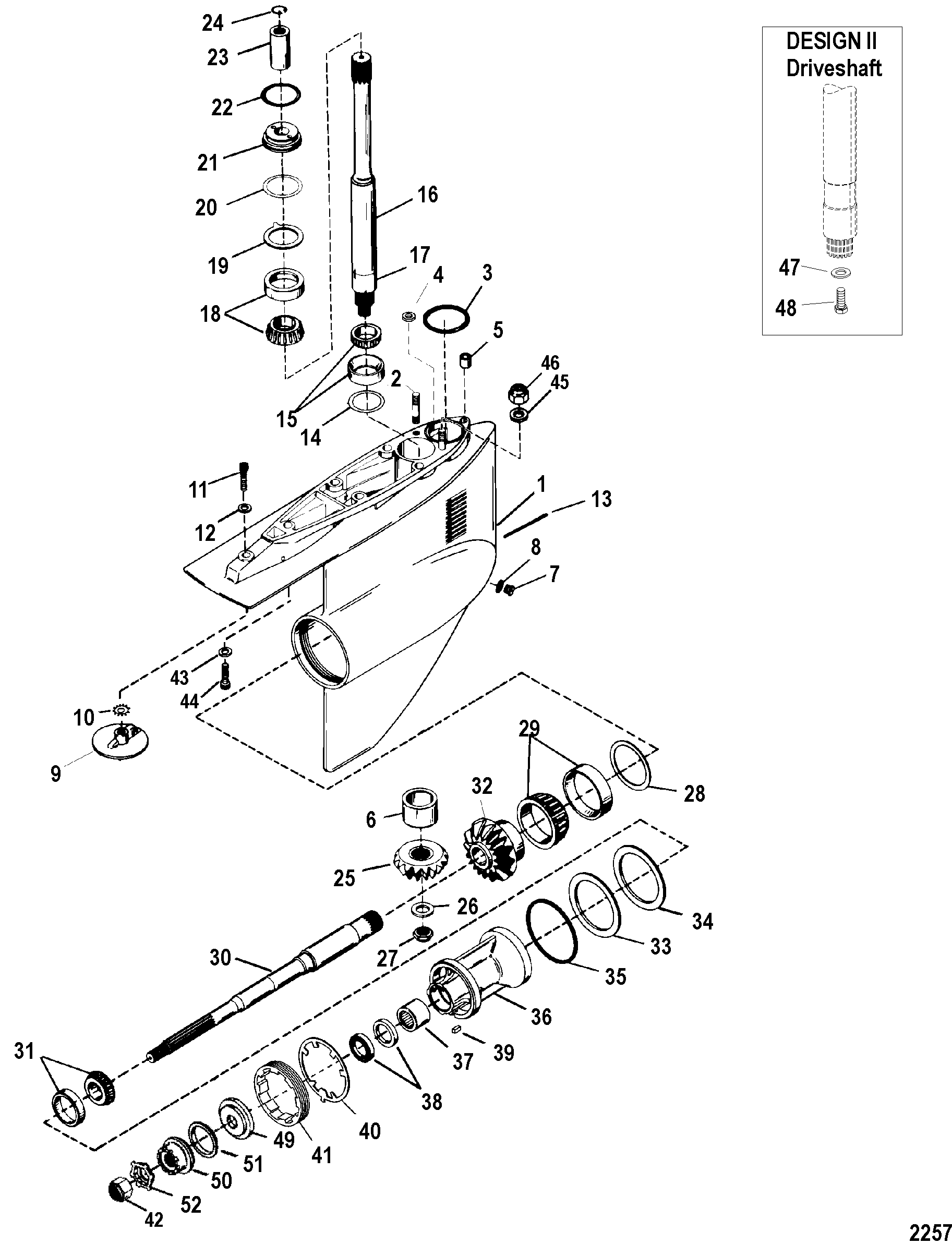

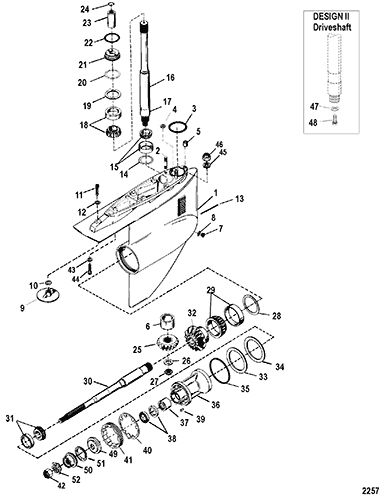

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears (Standard)
- Gear Housing (Bravo One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump - Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump - Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump - Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump - Motor (Top Mt Reservoir) (Design III - 14336A31)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Gear Housing (Bravo Three)
- Special Tools-Gear Housing (Bravo Two)
- Special Tools-Transom
- Sterndrive Unit Chart (Gasoline) Bravo I-II-III
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (Standard)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| _ | 1641-8294A19 | GEAR HOUSING ASSEMBLY (Complete) | 1 | (1.50:1 - 1.65:1 Ratio) | |||||
| _ | 1641-8294A16 | GEAR HOUSING ASSEMBLY (Complete) | 1 | (1.81:1 - 2.00:1 - 2.20:1 Ratio) | |||||
| 1 | 1641-8294A14 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 2 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 3 | 25-33465 | O-RING | 1 | ||||||
| 4 | 26-455771 | SEAL | 1 | ||||||
| 5 | 26-805344 | SEAL, (.625 Outside Diameter) | 1 | ||||||
| 6 | 31-86754T | BEARING ASSEMBLY, Roller | 1 | ||||||
| 7 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 2 | 22-67892A1 | |||||
| 8 | 12-191833 | WASHER | 1 | 12-191832 | |||||
| 9 | 76214Q5 | ANODE KIT | 1 | ||||||
| 10 | 13-806210 | LOCKWASHER, (.437) | 1 | ||||||
| 11 | 10-90084 | 525-10-90084 | SCREW, (.437-14 x 1.500) | 1 | |||||
| 12 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 1 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, TUBE-Speedometer Pickup | 1 | This Part is not sold separately | |||||
| 14 | 15-92914A1 | SHIM KIT | AR | ||||||
| 15 | 31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | |||||
| 16 | 45-888434A1 | DRIVESHAFT ASSEMBLY | 1 | 45-812561A2 | |||||
| 17 | 31-815901 | RACE, Bearing | 1 | ||||||
| 18 | 31-86748A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 19 | 14-86739 | TAB WASHER | 1 | ||||||
| 20 | 15-86749A1 | SHIM KIT | AR | ||||||
| 21 | 23-92916 | SPACER | 1 | ||||||
| 22 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | ||||
| 23 | 88243A3 | COUPLING ASSEMBLY | 1 | ||||||
| 24 | 53-88242 | RING, Retaining | 1 | ||||||
| 25 | 43-41656T | GEAR, (16/27) | 1 | (1.81:1 - 2.00:1 - 2.20:1 Ratio) | |||||
| 25 | 43-827304T | GEAR, (18/25) | 1 | (1.50:1 - 1.65:1 Ratio) | |||||
| 26 | 12-86746 | WASHER | 1 | ||||||
| 27 | 11-20739 | NUT, (.750-16) | 1 | ||||||
| 28 | 15-55499A1 | SHIM ASSEMBLY | AR | ||||||
| 29 | 31-54038A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 30 | 44-62820T1 | PROPELLER SHAFT | 1 | ||||||
| 31 | 31-54036A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 32 | 43-41657T | GEAR, DRIVE | 1 | (1.81:1 - 2.00:1 - 2.20:1 Ratio) | |||||
| 32 | 43-827303 | GEAR, DRIVE | 1 | (1.50:1 - 1.65:1 Ratio) | |||||
| 33 | 860323 | RING, Thrust | 1 | ||||||
| 34 | 23-66093T | RING, Load | 1 | ||||||
| 35 | 25-34821 | O-RING | 1 | ||||||
| 36 | 863913A04 | CARRIER ASSEMBLY, Bearing | 1 | 62813A4 | |||||
| 37 | 31-54042T | BEARING, Roller | 1 | ||||||
| 38 | 26-814242 | SEAL, Oil, Fish-Line Cutter | 1 | ||||||
| 38 | 26-821092 | SEAL, Oil | 1 | ||||||
| 39 | 28-30281 | KEY | 1 | ||||||
| 40 | 14-54167 | TAB WASHER | 1 | ||||||
| 41 | 54163 | RETAINER | 1 | ||||||
| 42 | 11-82671127 | PROP NUT, (1.00-14) Brass | 1 | ||||||
| 43 | 10-90085 | SCREW, (.4375-14 x 2.75) | 1 | ||||||
| 44 | 13-47659 | LOCKWASHER, (.437) | 1 | ||||||
| 45 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 2 | ||||||
| 46 | 11-35053 | NUT, (.437-20) | 2 | ||||||
| 47 | 12-805068 | WASHER, Pinion Gear | 1 | ||||||
| 48 | 10-34353 | SCREW, (.375-16 x 1.00), Pinion Gear | 1 | ||||||
| 49 | 55074T | THRUST HUB | 1 | ||||||
| 50 | 12-55073A2 | WASHER ASSEMBLY | 1 | ||||||
| 51 | 12-55072 | WASHER | 1 | ||||||
| 52 | 14-34817 | TAB WASHER | 1 | ||||||
| - | 26-76868A04 | SEAL KIT | 1 | 26-76868A2 | |||||
| - | 888761Q01 | ANODE KIT, Aluminium (Bravo II) | AR | 888761A1 | |||||
| - | 888760Q03 | ANODE KIT, Magnesium (Bravo II) | AR | 888760A1 |
