Bravo Three - Serial 0M100001 Thru 0W249999 - Universal Joint And Shifter Components (Standard)

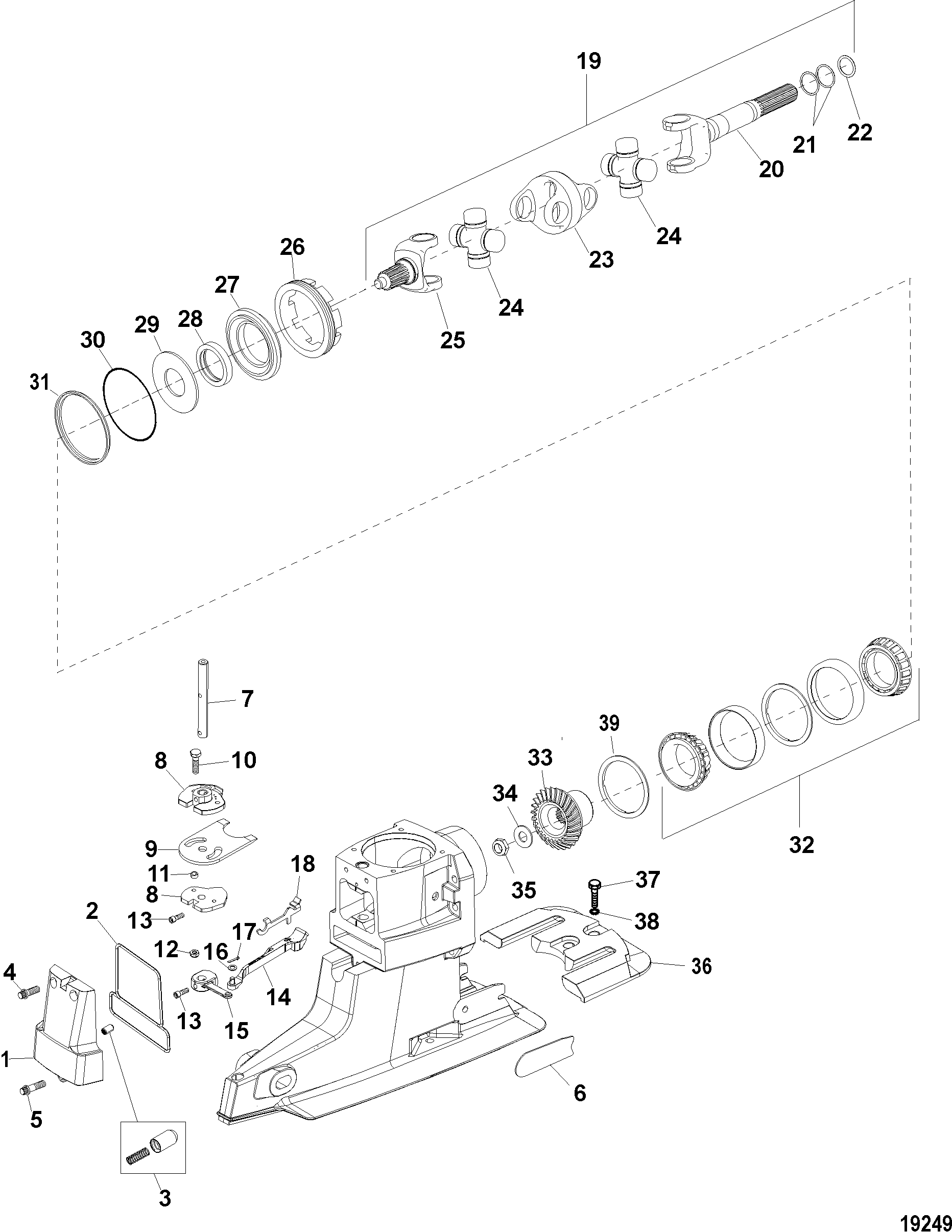

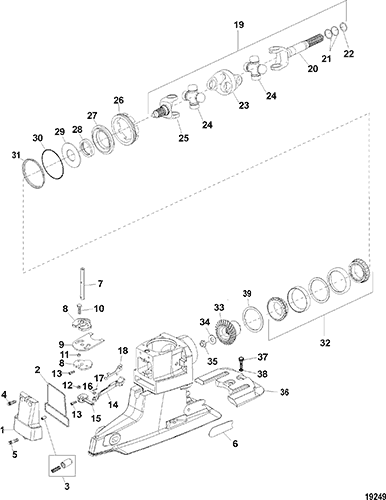

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears (Standard)
- Gear Housing (Bravo One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump - Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump - Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump - Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump - Motor (Top Mt Reservoir) (Design III - 14336A31)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Gear Housing (Bravo Three)
- Special Tools-Gear Housing (Bravo Two)
- Special Tools-Transom
- Sterndrive Unit Chart (Gasoline) Bravo I-II-III
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (Standard)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 12717A1 | COVER ASSEMBLY | 1 | ||||||
| 2 | 12708 | SEAL | 1 | 17 | |||||
| 3 | 865711A02 | DETENT ASSEMBLY | 1 | 14497A2 | |||||
| 4 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | |||
| 5 | 10-87158 | SCREW, (.375-16 x 1.875) | 1 | ||||||
| 6 | 805261A1 | WEAR PAD KIT | 1 | ||||||
| 7 | 12711 | SHAFT | 1 | ||||||
| 8 | 806552A1 | YOKE AND CAM ASSEMBLY | 1 | ||||||
| 9 | 806552 | YOKE, Shifter | 1 | ||||||
| 10 | 10-805733 | SCREW, (.250-28 x 1.00) | 2 | ||||||
| 11 | 23-12706 | SPACER, (.194 x .375) | 2 | ||||||
| 12 | 11-8267139 | NUT, (.250-28) | 2 | ||||||
| 13 | 10-38615 | SCREW, (.250-28 x .750) | 2 | ||||||
| 14 | 861175A2 | SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever | 1 | ||||||
| 15 | NSS | NOT SOLD SEPARATE, LEVER-Shift | 1 | This Part is not sold separately | |||||
| 16 | 12-20583 | WASHER | 1 | ||||||
| 17 | 18-26953 | COTTER PIN | 1 | ||||||
| 18 | 86776 | LATCH | 1 | ||||||
| 19 | 864244A2 | UNIVERSAL JOINT ASSEMBLY, Gray | 1 | 12784A10 | (Meritor Assembly) SN# 0M111207 & Below | ||||
| 19 | 864244A2 | UNIVERSAL JOINT ASSEMBLY, Black | 1 | (GKN Assembly) SN# 0M111208 & Up | |||||
| 20 | 59830A7 | YOKE ASSEMBLY (COUPLER END) | 1 | SN# 0M111207 & Below | |||||
| 20 | 864244A01 | YOKE ASSEMBLY (COUPLER END) | 1 | 865494A01 | SN# 0M111208 & Up | ||||
| 21 | 25-29845 | O-RING, (.924 x .103) | 2 | 17 | |||||
| 22 | 25-35027 | 700-81180 | 525-25-35027 | O-RING, (1.046) | 1 | 17 | |||
| 23 | 393831 | SOCKET, Center | 1 | SN# 0M111207 & Below | |||||
| 23 | 865503T | SOCKET | 1 | 865509T | SN# 0M111208 & Up | ||||
| 24 | 75832T1 | 700-28030 | CROSS AND BEARING | 2 | SN# 0M111207 & Below | ||||
| 24 | 865496A02 | CROSS AND BEARING | 2 | 865496A01 | SN# 0M111208 & Up | ||||
| 25 | 12784 | YOKE (GEAR END) | 1 | SN# 0M111207 & Below | |||||
| 25 | 864245T | YOKE (GEAR END) | 1 | 865495T | SN# 0M111208 & Up | ||||
| 26 | 11-92004 | RING NUT | 1 | ||||||
| 27 | 86779A1 | CARRIER ASSEMBLY | 1 | ||||||
| 28 | 26-807006 | SEAL, Oil | 1 | ||||||
| 29 | 12-41613 | WASHER | 1 | ||||||
| 30 | 25-861844 | O-RING | 1 | ||||||
| 31 | 86780 | RING | 1 | ||||||
| 32 | 31-86763A2 | BEARING ASSEMBLY, Tapered Roller | 1 | SN# 0M198372 & Below | |||||
| 32 | 31-86763A04 | BEARING ASSEMBLY, Tapered Roller | 1 | SN# 0M198373 & Up | |||||
| 33 | 43-883473A2 | GEAR SET, (32/27) | 1 | (SEE STERNDRIVE UNIT CHART FOR APPLICATION) | |||||
| 33 | 43-883476A2 | GEAR SET, (29/27) | 1 | (SEE STERNDRIVE UNIT CHART FOR APPLICATION) | |||||
| 33 | 43-883479A2 | GEAR SET, (30/23) | 1 | (SEE STERNDRIVE UNIT CHART FOR APPLICATION) | |||||
| 34 | 12-44539 | WASHER | 1 | ||||||
| 35 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | 11-97522 | |||
| 36 | 821630Q1 | ANODE ASSEMBLY | 1 | ||||||
| 37 | 10-65210 | SCREW, (.375-16 x 1.00) | 2 | ||||||
| 38 | 13-35479 | LOCKWASHER, (.375) | 2 | ||||||
| 39 | 15-888927028 | SHIM, (.028) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927029 | SHIM, (.029) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927030 | SHIM, (.030) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927031 | SHIM, (.031) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927032 | SHIM, (.032) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927033 | SHIM, (.033) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927034 | SHIM, (.034) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927035 | SHIM, (.035) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927036 | SHIM, (.036) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927037 | SHIM, (.037) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927038 | SHIM, (.038) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927039 | SHIM, (.039) | AR | SN# 0M198373 & Up | |||||
| 39 | 15-888927040 | SHIM, (.040) | AR | SN# 0M198373 & Up | |||||
| - | 26-16709A2 | SEAL KIT | 1 |
