7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Alternator and Bracket (Delco)

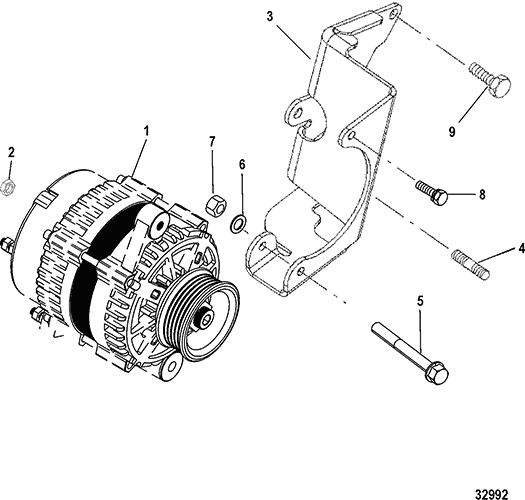

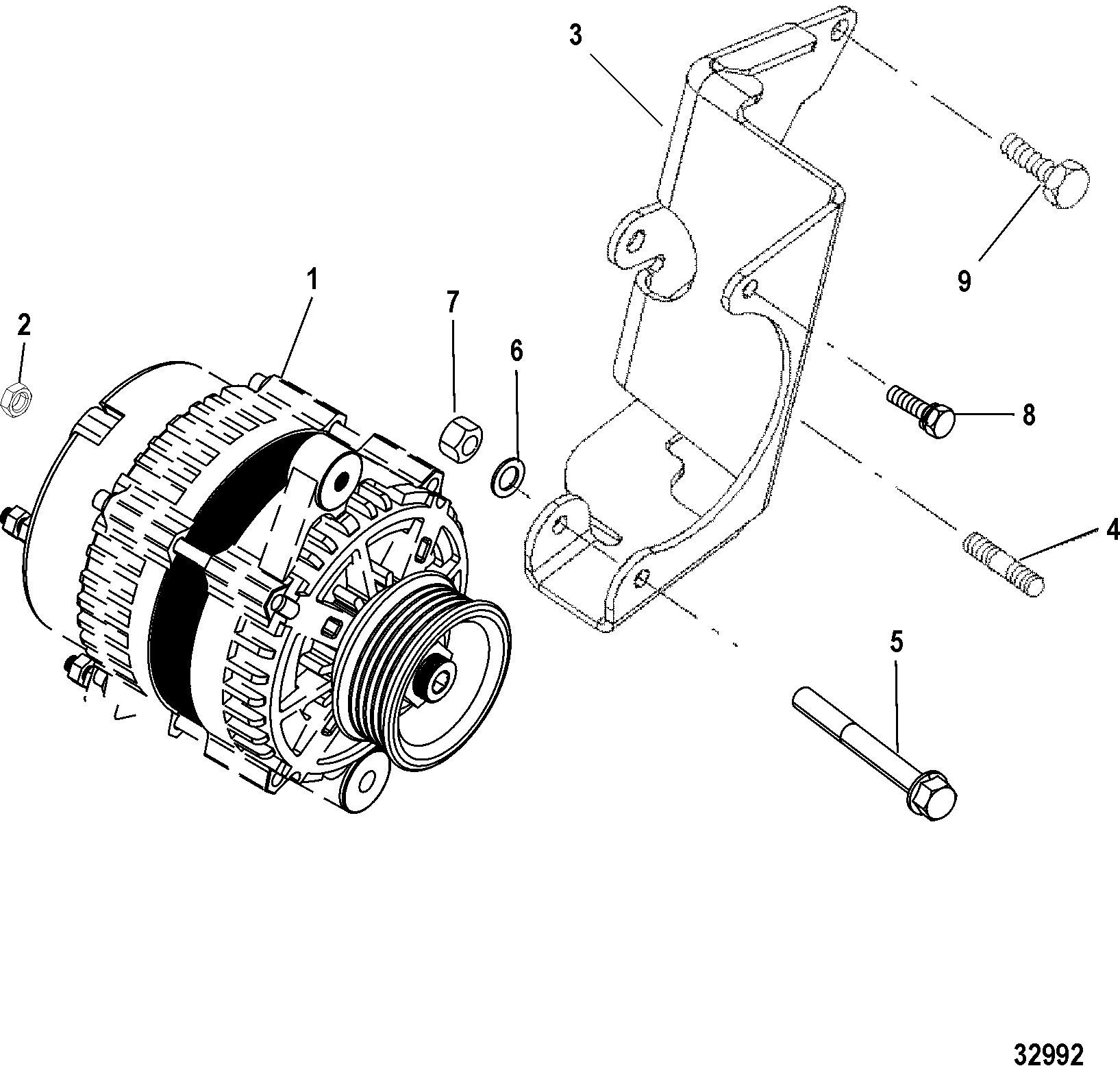

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862031T1 | ALTERNATOR ASSEMBLY (65 Amp) | 1 | 862031T | (Non Serviceable - Replace Complete Assembly) | ||||
| 2 | 11-400212 | NUT, (M6) Stainless Steel | 1 | ||||||
| 3 | 862050T | BRACKET, Alternator | 1 | ||||||
| 4 | 16-806591 | STUD, (7/16-14), Alternator & Seawater Pump Bracket | 1 | ||||||
| 5 | 10-31984 | SCREW, (.312-18 x 1.375) | 2 | ||||||
| 6 | 12-20084 | 700-21664 | WASHER, (.328 x .562 x .062) | 1 | |||||
| 7 | 11-21908 | NUT, (.312-18) Cad Plated | 1 | ||||||
| 8 | 10-40001134 | SCREW, (M8 x 25) | 1 | ||||||
| 9 | 10-17965 | SCREW, (.437-14 x .70) | 2 | ||||||
| NS | 84-862078T1 | HARNESS ASSEMBLY, Engine Wiring | 1 |
