7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Electrical Bracket And Components

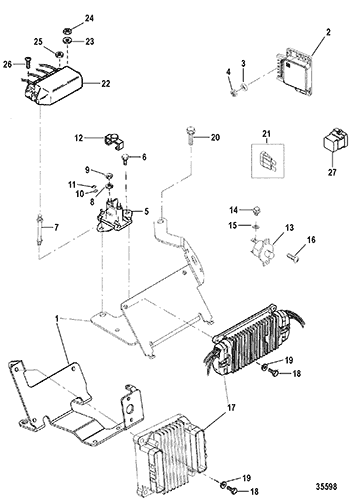

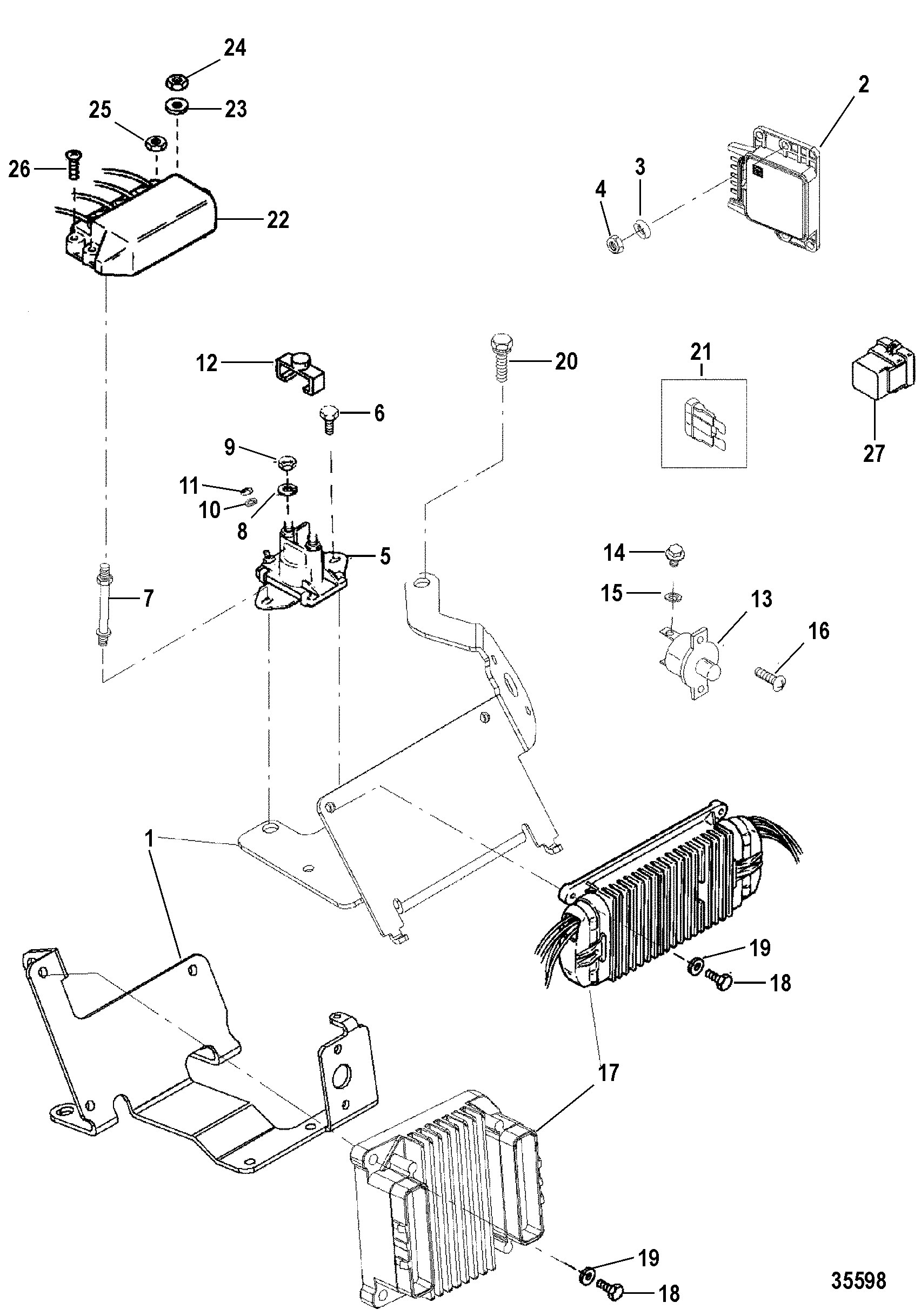

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861096T | BRACKET, Electrical Components | 1 | This Part is NLA from Mercruiser. | |||||
| 1 | 861715T1 | BRACKET, Electrical | 1 | This Part is NLA from Mercruiser. (MEFI-3 SN# 0L086001 & Up 1) | |||||
| 2 | 861535T | MODULE ASSEMBLY, Spark Control | 1 | ||||||
| 3 | 12-20533 | WASHER | 2 | ||||||
| 4 | 11-805562 | NUT, (#10-24) | 2 | ||||||
| 5 | 89-96158T | 676-9-15112 | 700-72400 | SOLENOID | 1 | ||||
| 6 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 7 | 16-805459 | STUD, Mercathode Mounting | 2 | ||||||
| 8 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 9 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 10 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 11 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 12 | 85-97861 | INSULATOR | 1 | ||||||
| 13 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-806950 | |||||
| 14 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 15 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 16 | 10-57583 | SCREW, (#8-32 x .375) | 2 | ||||||
| 17 | 861736R1 | ECM, Engine Control Module | 1 | This Part is NLA from Mercruiser. (MEFI-2 SN# 0L086000 & Below) | |||||
| 17 | 891897A01 | ECM, Engine Control Module | 1 | 861720T2 | MEFI-3 SN# 0L086001 & Up 1 | ||||
| 18 | 10-76596 | SCREW, (.250-20 x 1.250) | 2 | ||||||
| 18 | 10-28636 | SCREW, (.250-20 x .750) | 3 | MEFI-3 SN# 0L086001 & Up 1 | |||||
| 19 | 12-20533 | WASHER | 2 | ||||||
| 20 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 21 | 88-804642 | FUSE, 15 Ampere | 1 | 805704 | No longer made, limited availability | ||||
| 21 | 88-804641 | FUSE, 10 Ampere | 1 | 805703 | |||||
| 22 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 23 | 12-56681 | WASHER, (.203 x .500 x .032) | 2 | ||||||
| 24 | 11-46438 | NUT, (#10-32) | 2 | 11-68219/tr> | |||||
| 25 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 26 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 27 | 86-865202T | RELAY, FUEL PUMP | 1 | 807057T | |||||
| 27 | 86-865202T | RELAY, IGNITION SYSTEM | 1 | 807057T |
