7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Power Steering Components

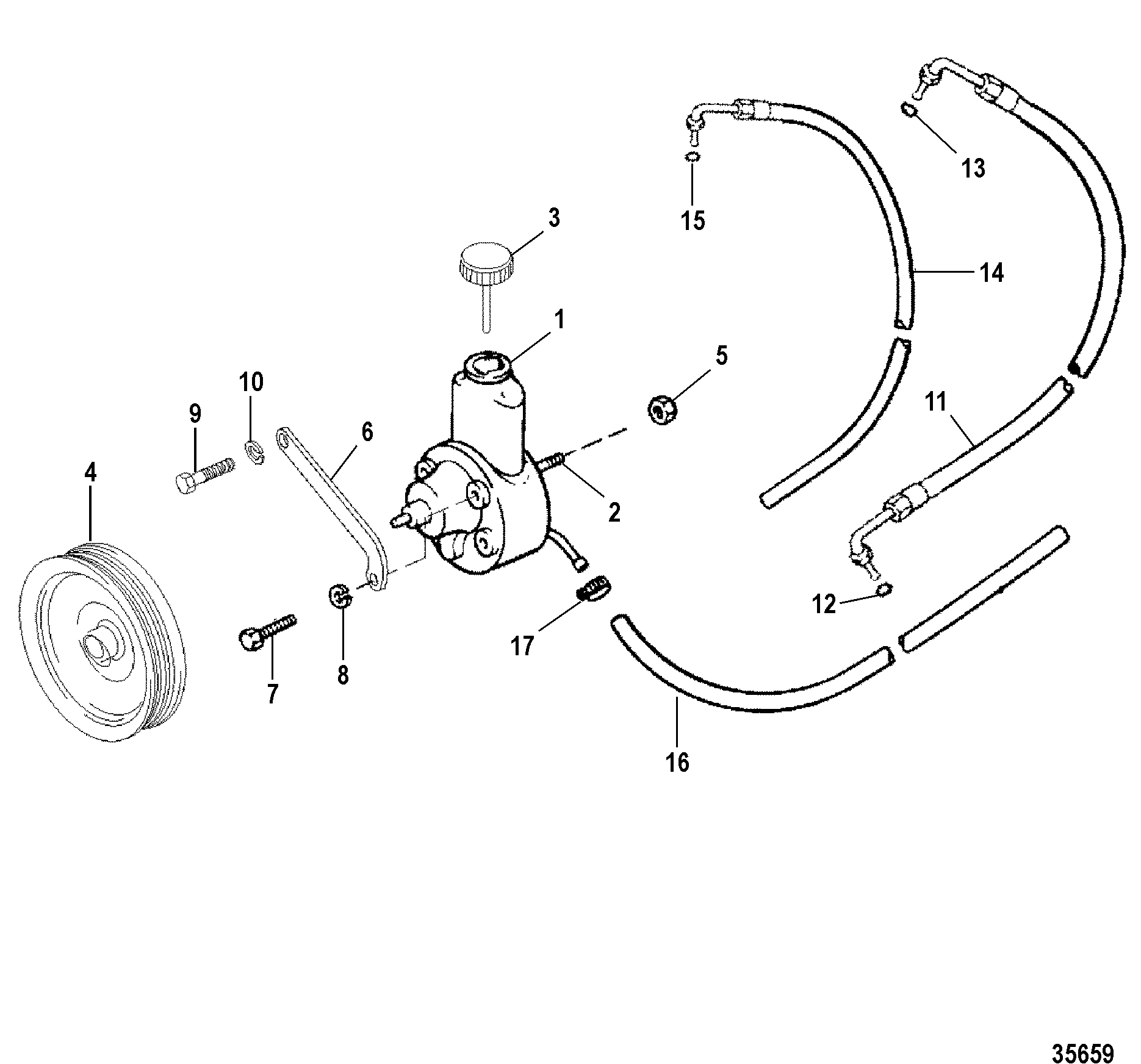

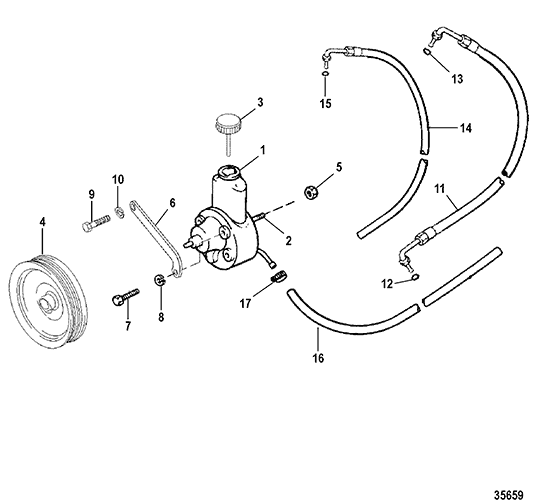

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY | 1 | Pump DOES NOT come with pulley | |||||
| 2 | 16-41877 | STUD, (M10) | 2 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 861578 | PULLEY | 1 | Pulley NOT included with pump | |||||
| 5 | 11-90517 | NUT, (M10) | 2 | ||||||
| 6 | 861048 | BRACE | 1 | ||||||
| 7 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 9 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 10 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | |||||
| 11 | 32-86131720 | HOSE | 1 | (FITTINGS ON BOTH ENDS) | |||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 13 | 25-806232 | O-RING, (.239 x .064) | 1 | ||||||
| 14 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return | 1 | (FITTING ON ONE END) | |||||
| 15 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 16 | 32-5251914 | HOSE, (53.00 Inches Bulk), Pump to Oil Cooler - (40 IN.) | 1 | ||||||
| 17 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 3 | ||||||
| NS | 19-8079921 | COVER, Hose Clamp End | AR | No longer made, limited availability 3 | |||||
| NS | 22-806231001 | COUPLER, Power Steering Metric (Shipping) | 1 | 22-806231 |
