7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Standard Cooling System

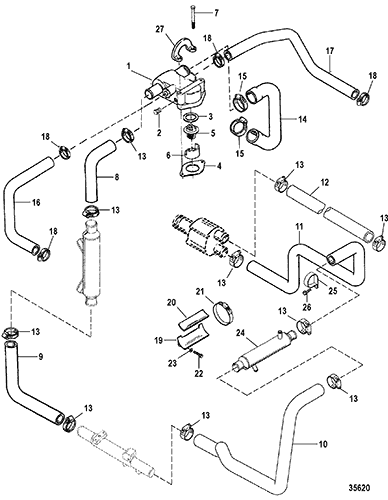

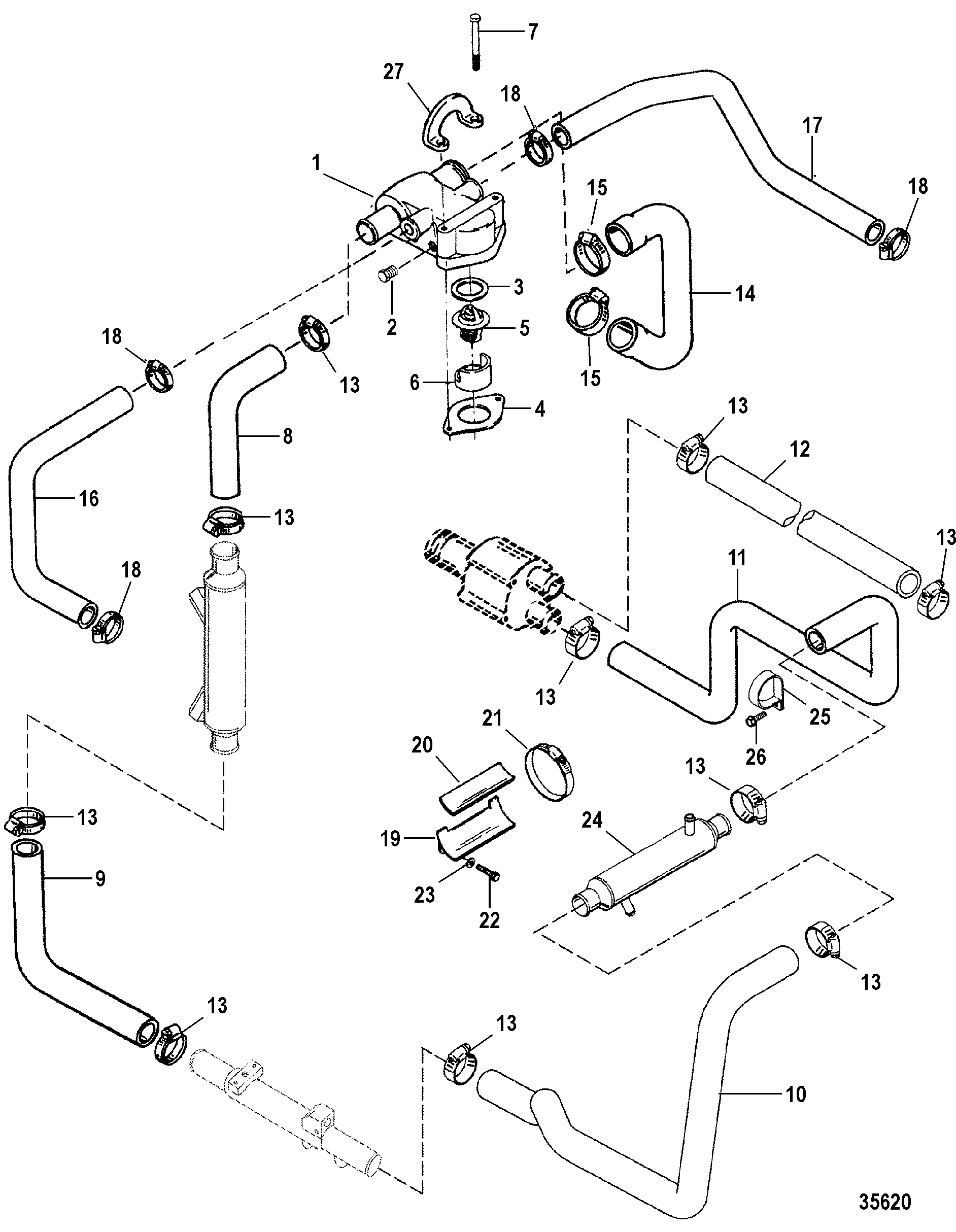

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0061381 | HOUSING ASSEMBLY, Thermostat | 1 | 861006A1 | |||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | 700-32700 | GASKET | 1 | 4 | ||||
| 4 | 27-530451 | GASKET | 1 | 4 | |||||
| 5 | 807252T2 | 676-9-43002 | 700-13100 | THERMOSTAT, 71°C (160°F) | 1 | ||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-35787 | SCREW, (.375-16 x 2.250) | 2 | ||||||
| 8 | 32-8074073 | HOSE | 1 | 32-8074072 | 1 | ||||
| 9 | 32-807989 | HOSE | 1 | No longer made, limited availability | |||||
| 10 | 32-808045 | 676-9-44094 | HOSE, Fuel Cooler to Transmission Oil Cooler | 1 | |||||
| 11 | 32-808044 | HOSE, Molded | 1 | ||||||
| 12 | 32-865672079 | HOSE, (96.00 Inches Bulk) (38 IN.) | 1 | 32-1743579 | |||||
| 13 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 10 | ||||||
| 14 | 32-861183 | HOSE | 1 | 1 | |||||
| 15 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 16 | 32-897491 | HOSE | 1 | ||||||
| 17 | 32-861318 | HOSE | 1 | ||||||
| 18 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 4 | ||||||
| 19 | 805546A2 | BRACKET, Oil Cooler | 1 | ||||||
| 20 | 772233 | PAD | 1 | ||||||
| 21 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 1 | ||||||
| 22 | 10-816585 | SCREW, (.375-18 x .875) | 1 | Metal Cooler | |||||
| 22 | 8M2016106 | SCREW, (.312 x 1.25) | 1 | Composite Cooler (Included with 861554T02) | |||||
| 23 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 24 | <861554T01 | COOLER | 1 | 861554T | |||||
| 25 | 54-47715 | CLIP | 1 | ||||||
| 26 | 10-35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) | 1 | ||||||
| 27 | 12552 | 700-13237 | LIFTING EYE | 1 | |||||
| NS | 19-8079923 | COVER, Hose Clamp End | AR | 3 | |||||
| - | 27-802567A98 | GASKET SET, Engine Overhaul | 1 |
