8.2L Mag (Base or HO) - Serial 1A351597 and Up - Exhaust Manifold, Elbow And Riser

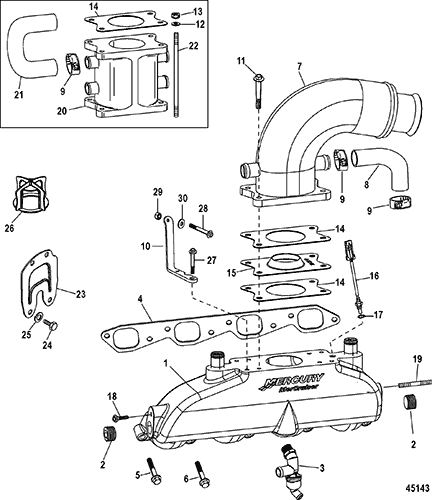

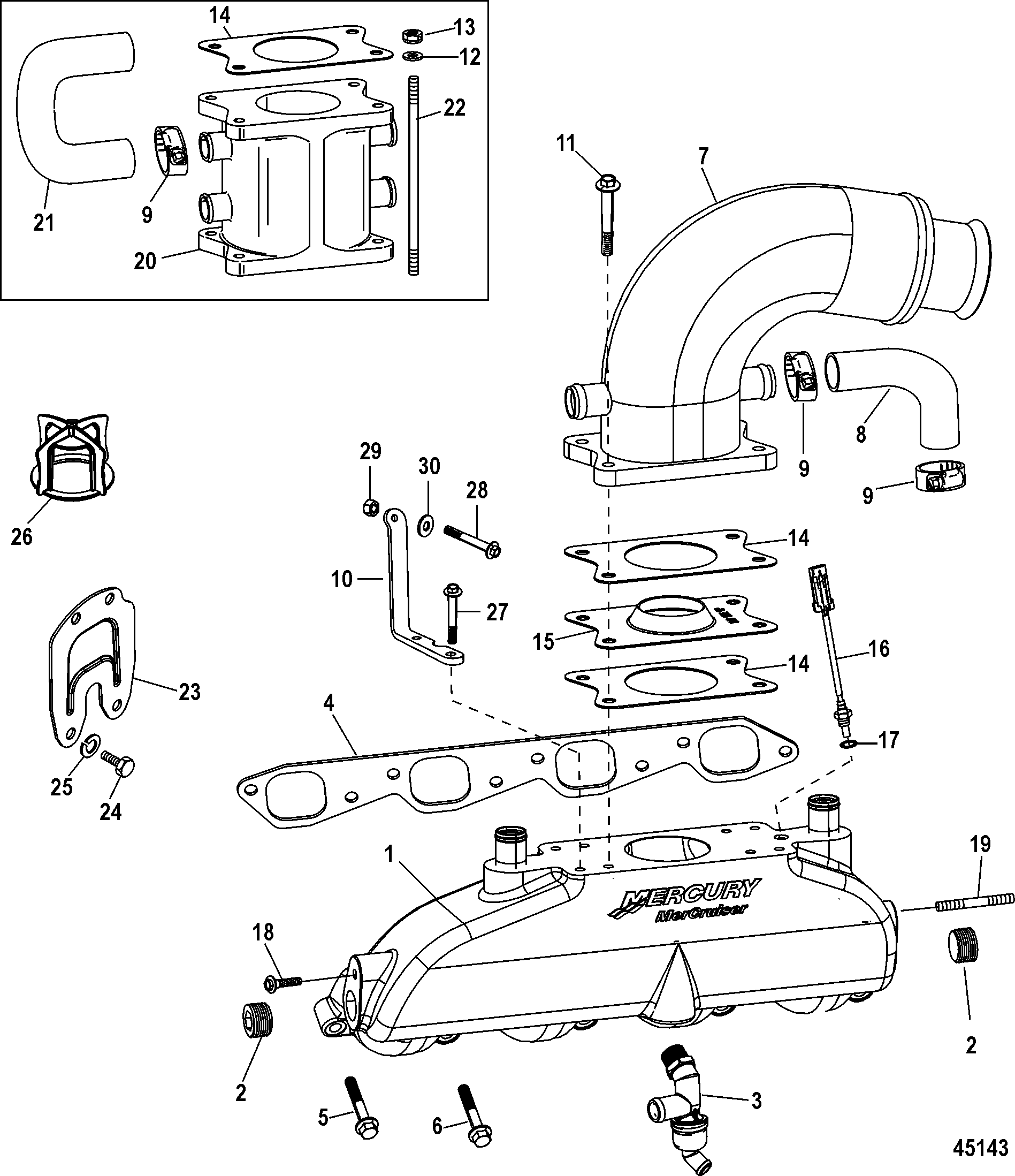

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 866178T01 | MANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust | 2 | |||||
| 2 | 22-12524 | PLUG, (.375-18 x .475) Brass | 1 | |||||
| 3 | 8M0050599 | FITTING ASSEMBLY, Drain | 1 | Exhaust Manifold (Port) | ||||
| 3 | 22-865828A02 | FITTING ASSEMBLY, Drain - Stainless Steel | 1 | Exhaust Manifold (Starboard) | ||||
| 4 | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold to Cylinder Head | 2 | 2 | ||
| 5 | 10-8M0058302 | SCREW, (.375-16 x 1.75) | 8 | 10-8M2017590 | ||||
| 6 | 10-8M0058303 | SCREW, (.375-16 x 3.0) | 8 | 10-8M2017591 | ||||
| 7 | 865331A02 | ELBOW, Exhaust | 2 | Standard Rise | ||||
| 7 | 865332A02 | ELBOW, Exhaust | 2 | 2 Inch Rise | ||||
| 8 | 32-863095 | HOSE, Elbow to Manifold | 4 | |||||
| 9 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 8 | |||||
| 10 | 8M2020215 | BRACKET, Support, Cylinder Head to Reservoir | 1 | |||||
| 10 | 8M2020215 | BRACKET, Support, Cylinder Head to Eye Bracket | 1 | |||||
| 11 | 10-4010725 | SCREW, (M8 x 25) | 8 | |||||
| 12 | 12-12038 | WASHER | 8 | |||||
| 13 | 11-4002030 | NUT, (M8) | 8 | |||||
| 14 | 27-862356 | GASKET, Elbow to Manifold | 4 | |||||
| 15 | 8M2000433 | GASKET, Turbulator, Exhaust | 2 | |||||
| 16 | 885342002 | SENSOR ASSEMBLY, Temperature | 1 | |||||
| 17 | 25-627021 | O-RING, (.301 x .070) | 1 | |||||
| 18 | 10-4010716 | SCREW, (M8 x 16) | 1 | |||||
| 19 | 16-424632 | STUD, (M8 x 37.1) | 1 | |||||
| 20 | 866768T | RISER, (6 Inch) | 2 | |||||
| 21 | 32-863102 | HOSE | 4 | |||||
| 22 | 16-863121 | STUD, (M8 x 194) | 8 | |||||
| NS | 19-8079923 | COVER, Hose Clamp End | 8 | |||||
| 23 | 861776A2 | PLATE KIT | 1 | |||||
| 24 | 10-98794 | 676-9-78129 | 700-28300 | SCREW, (.375-16 x 1.00) | 4 | |||
| 25 | 13-41471 | LOCKWASHER, (.375) | 4 | |||||
| 26 | 860222A1 | RESONATOR, Exhaust | 1 | |||||
| 27 | 10-4010720 | SCREW, (M8 x 20), Support Bracket to Manifold | 4 | |||||
| 28 | 10-82130025 | SCREW, (M6 x 25), Support Bracket to Reservoir Bracket | 1 | |||||
| 28 | 10-82130025 | SCREW, (M6 x 25), Support Bracket to Lube Bracket | 1 | |||||
| 29 | 11-401376 | NUT, (M6) | 2 | |||||
| 30 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 |
