8.2L Mag (Base or HO) - Serial 1A351597 and Up - Wiring Harness And Lifting Brackets

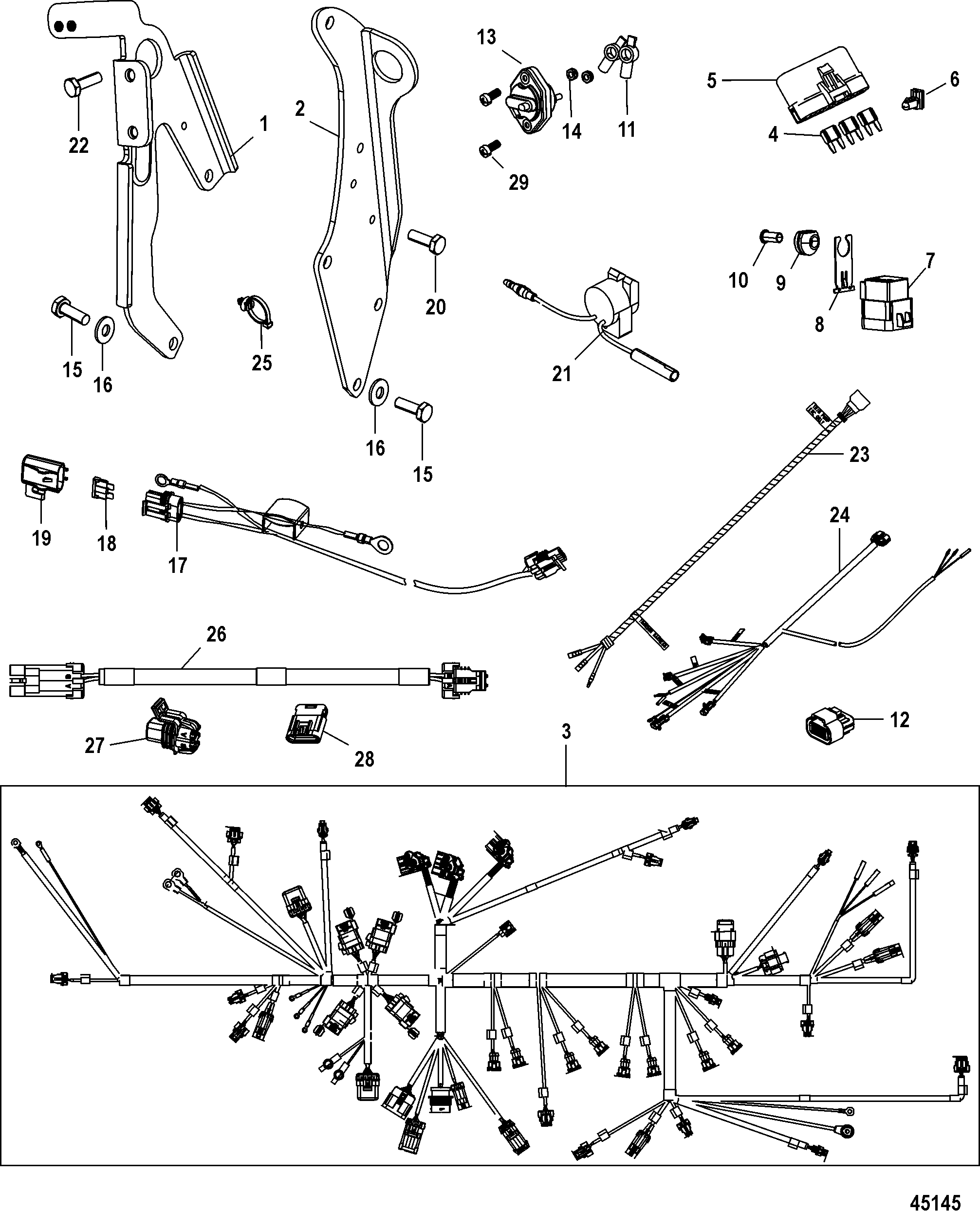

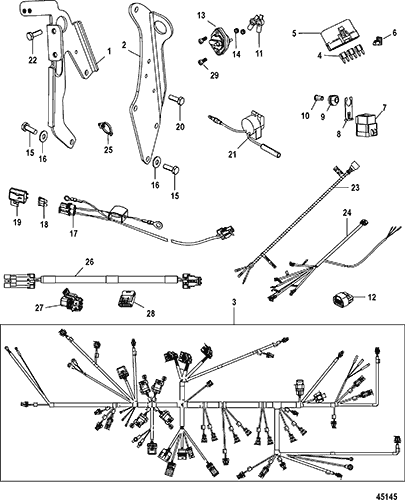

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0050591 | BRACKET, Lifting, Front | 1 | |||||
| 2 | 8M0050537 | BRACKET, Lifting, Rear | 1 | |||||
| 3 | 84-8M0045252 | HARNESS ASSEMBLY | 1 | Mechanical | ||||
| 3 | 84-8M0045253 | HARNESS ASSEMBLY | 1 | Digital Throttle & Shift | ||||
| 4 | 88-832969T15 | FUSE, Mini - Blue - 15 Ampere | 2 | Mechanical Throttle & Shift | ||||
| 4 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | Mechanical Throttle & Shift | |||
| 4 | 88-83296910 | FUSE, Mini - Red - 10 Ampere | 5 | Mechanical and Digital Throttle & Shift | ||||
| 4 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 5 | 88-83296920 | Digital Throttle & Shift | |||
| 5 | 858754 | COVER, Fuse | 2 | |||||
| 6 | 54-879962 | CLIP | 2 | |||||
| 7 | 882751A1 | 676-9-15210 | 700-73040 | RELAY ASSEMBLY | 4 | Mechanical Throttle & Shift | ||
| 7 | 882751A1 | 676-9-15210 | 700-73040 | RELAY ASSEMBLY | 5 | Digital Throttle & Shift | ||
| 8 | 828102 | BRACKET | 4/5 | |||||
| 9 | 25-818967 | GROMMET | 4/5 | |||||
| 10 | 23-818968 | BUSHING | 4/5 | |||||
| 11 | 85-89919 | BOOT, Insulator - Black | 2 | |||||
| 12 | 859318T1 | TERMINATOR, 10 Pin (CAN 1 and 2) | 1 | Mechanical Throttle & Shift | ||||
| 12 | 8M0055652 | TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H) | 1 | Digital Throttle & Shift | ||||
| 13 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-865827T | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | |||
| 14 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | |||||
| 15 | 10-47461 | SCREW, (.437-14 x 1.00) | 5 | |||||
| 16 | 12-22248 | WASHER, (.453 x .875 x .060) | 5 | |||||
| 17 | 84-888416T04 | HARNESS ASSEMBLY | 1 | |||||
| 18 | 862646 | FUSE, Tan - 5 Ampere | 1 | |||||
| 19 | 828054 | COVER, Fuse | 1 | |||||
| 20 | 10-4010720 | SCREW, (M8 x 20), Rear Lifting Eye to Shift Bracket | 2 | |||||
| 21 | 816492A15 | ALARM KIT | 1 | |||||
| 22 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel, Front Lifting Eye to Remote Oil | 2 | |||||
| 23 | 84-865774T01 | HARNESS ASSEMBLY, Trim Pump | 1 | |||||
| 24 | 84-865677T01 | HARNESS ASSEMBLY, Transom Harness | 1 | |||||
| 25 | 54-899145 | CLIP, Tie Strap | 1 | |||||
| 26 | 8M0050593 | HARNESS, Adaptor, Exhaust Temperature | 1 | |||||
| 27 | 8M2020214 | CAP ASSEMBLY, Weather | 1 | |||||
| 28 | 8M2020357 | CAP ASSEMBLY, Weather | 1 | |||||
| 29 | 10-830861 | SCREW, (#8-32 x .625) | 2 |
