8.2L Mag (Base or HO) - Serial 1A351597 and Up - Seawater Pump

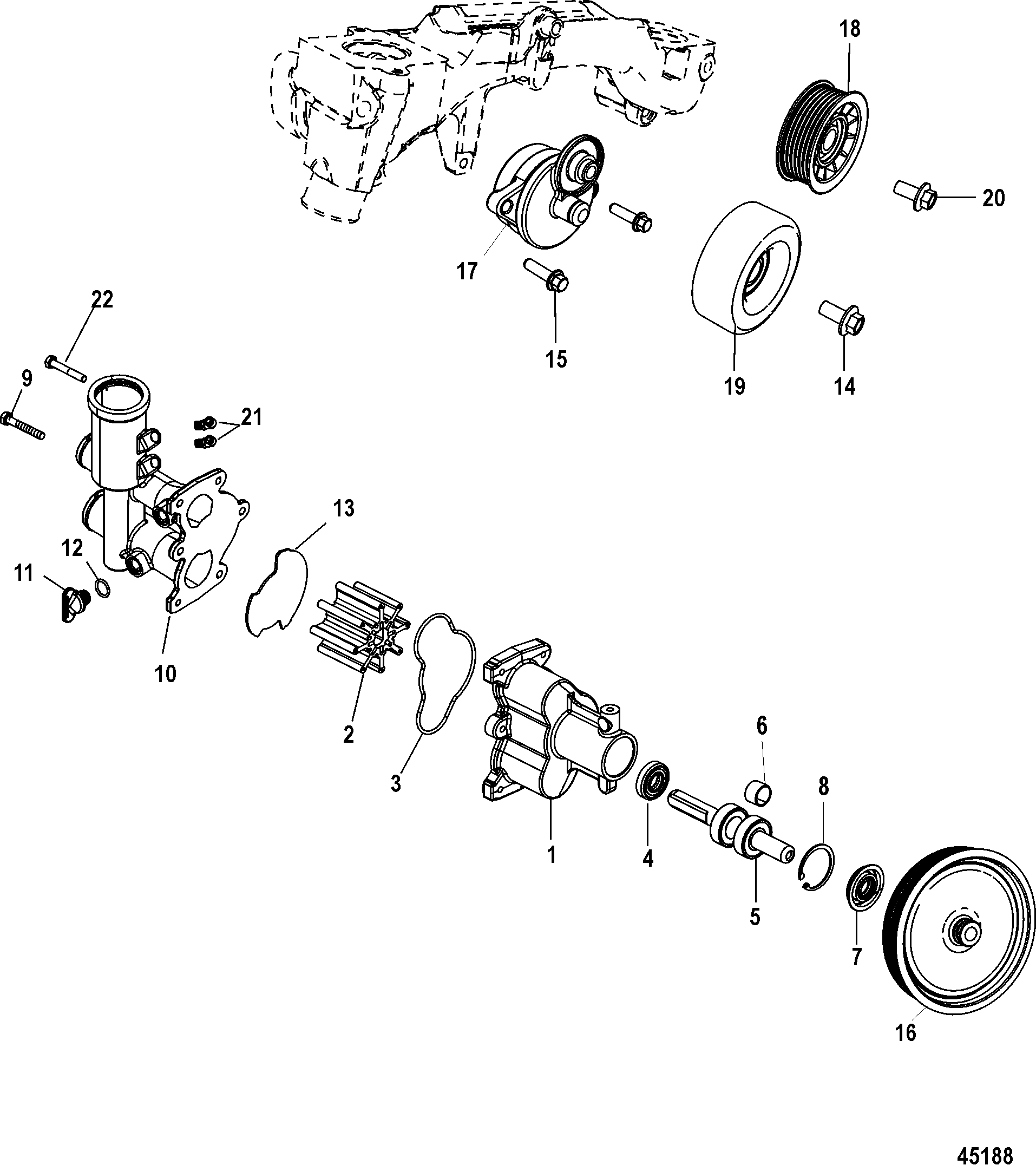

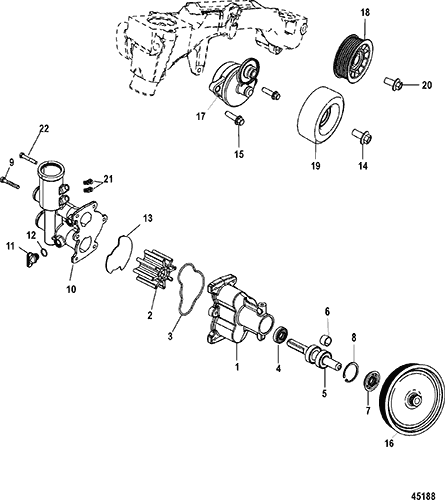

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 46-862914T10 | PUMP KIT, Sea Water, Without Air Fittings | 1 | ||||||
| - | 46-862914T11 | PUMP KIT, Sea Water, With Air Fittings | 1 | ||||||
| 1 | 46-862914A13 | HOUSING ASSEMBLY, Impeller | 1 | ||||||
| 2 | 47-8M0104229 | IMPELLER | 1 | ||||||
| 3 | 8M2021987 | O-RING, Formed | 1 | ||||||
| - | 8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | ||||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY, Impeller | 1 | 862235A1 | |||||
| 6 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | |||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | NSS | NOT SOLD SEPARATE, SNAP RING | 1 | This Part is not sold separately | |||||
| 9 | 10-4000328 | SCREW, (M6 x 16) | 6 | ||||||
| 10 | 863674A04 | COVER KIT, Impeller Housing | 1 | ||||||
| 11 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 2 | ||||||
| 12 | 25-26802 | SEAL | 2 | 25-8M2000926 | 2 | ||||
| 13 | 8M2014176 | PLATE, Wear | 1 | ||||||
| 14 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 15 | 10-88552630 | SCREW, (M8 x 30) | 2 | ||||||
| 16 | 879172T78 | PULLEY | 1 | ||||||
| 17 | 865597T | TENSIONER, Belt | 1 | ||||||
| 18 | 807757T | PULLEY ASSEMBLY, Idler - Black | 1 | ||||||
| 19 | 865777 | PULLEY, Idler, Non-Grooved | 1 | ||||||
| 20 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 21 | 22-863719 | FITTING, Orange - Straight | 1 | ||||||
| 21 | 22-863718 | FITTING, Gray - Straight | 1 | ||||||
| 22 | 10-865152 | SCREW, (M6) | 2 |
