200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Coil Plate Assembly

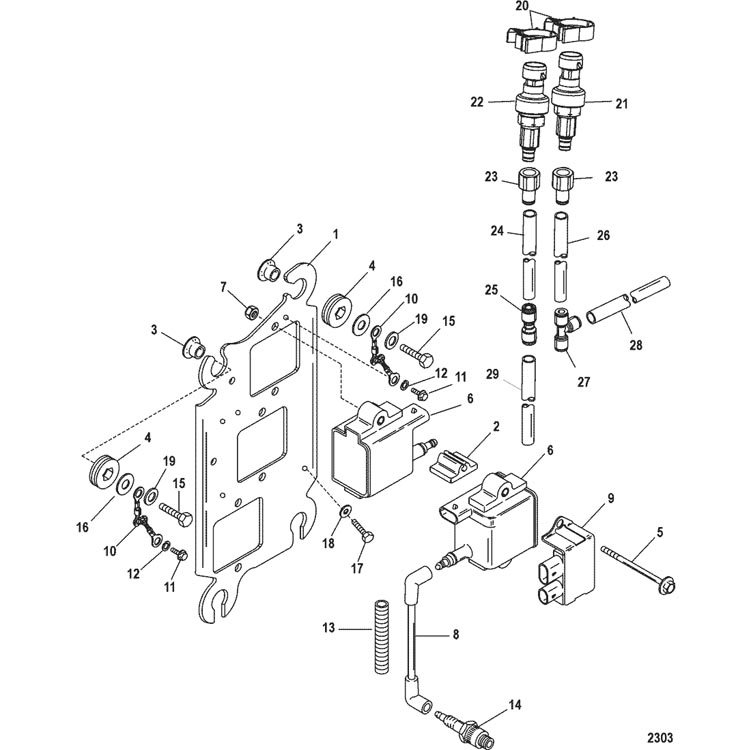

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components(Complete Powerhead and Lower Unit)
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0011731 | PLATE, Coil | 1 | 8506753 | |||||
| 2 | 850676F1 | SPACER | 6 | ||||||
| 3 | 23-8502341 | BUSHING | 4 | ||||||
| 4 | 25-833155 | GROMMET | 4 | ||||||
| 5 | 10-850898 | SCREW, (.250-20 x 3.250) | 6 | ||||||
| 6 | 339-856991A1 | COIL KIT | 6 | ||||||
| 7 | 11-814101 | NUT, (.250-20) Stainless Steel | 6 | ||||||
| 8 | 84-881908T | CABLE SET, Hi Tension | 1 | 821945T74 | |||||
| 9 | 859595T | DRIVER, Dual Coil | 3 | ||||||
| 10 | 84-858414A1 | CABLE ASSEMBLY, Braided | 2 | ||||||
| 11 | 10-82129110 | SCREW, (M6 x 10) | 2 | ||||||
| 12 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 13 | 32-828547353 | CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) | 1 | ||||||
| 14 | 33-889597Q | SPARK PLUG | 6 | 8556721 | |||||
| 15 | 10-60411 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 16 | 12-49436 | WASHER | 4 | ||||||
| 17 | 10-82129114 | SCREW, (M6 x 14) | 2 | ||||||
| 18 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 19 | 12-8M0042642 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | 70132 | |||||
| 20 | 54-883066 | CLIP, (.865) | 2 | ||||||
| 21 | 881879A7 | SENSOR KIT, (0-50 PSI) | 1 | ||||||
| 22 | 881879T11 | SENSOR, (0 - 100 PSI) | 1 | 881879A6 | |||||
| 23 | 22-892403 | FITTING | 1 | 859431 | |||||
| 24 | 32-85944975 | TUBING, (72.00 Inches Bulk) (Cut to 14 -1/2 In.) | 1 | ||||||
| 25 | 22-859747 | COUPLER | 1 | ||||||
| 26 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 15 IN.) | 1 | ||||||
| 27 | 22-875207 | TEE, Fitting | 1 | ||||||
| 28 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 5 IN.) | 1 | ||||||
| 29 | 32-85944975 | TUBING, (72.00 Inches Bulk) (Cut to 52 IN.) | 1 |
