200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Gear Housing, Propeller Shaft Torque Master

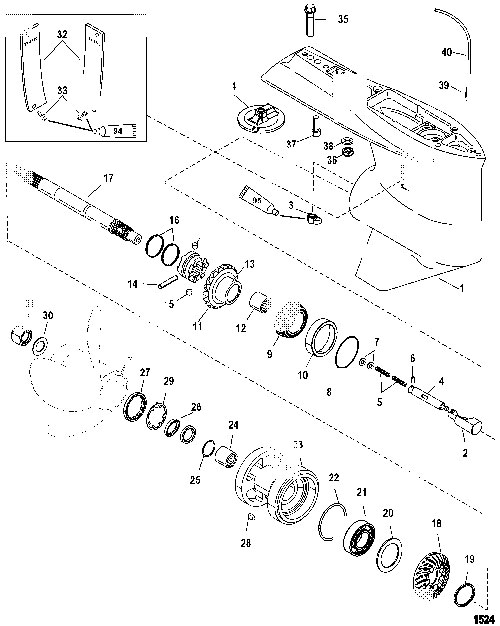

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1686-827214T23         GEAR HOUSING ASSEMBLY, Complete 1   No Longer Available
1 1686-827214T25         GEAR HOUSING ASSEMBLY, Basic 1
2 89594A1         FOLLOWER ASSEMBLY 1
3 789562         SHIFT CAM 1
4 79911A1         ROD 1
5 24-79910         SPRING 2
6 17-8M0084245         PIN 1 78906
7 12-78910         WASHER AR
8 15-47397A1         SHIM SET AR
9 31-78172A1         BEARING ASSEMBLY, Tapered Roller 1
10 NSS         Cup 1   Not Sold Separate
11 43-44104A7         GEAR SET 1
12 31-549281         BEARING, Roller 1
13 52-42672T         RATCHET 1
14 17-42671         PIN, Cross 1
15 17-78909         PIN, Detent 2
16 24-78962         SPRING 2
17 44-840451A03         PROPELLER SHAFT 1
- 840389K06         PROP HUB KIT 1
- 840382A02         SNUBBER STRIP KIT 1
18 43-822824A1         GEAR ASSEMBLY, Reverse 1
19 23-822823         THRUST RING 1
20 681001         RING, Thrust 1
21 30-88957T         BEARING, Ball 1
22 25-31534         O-RING 1
23 848840A1         CARRIER ASSEMBLY, Bearing 1 848840T1
24 31-817072         BEARING, Roller 1
25 53-817071         RING, Snap 1
26 26-815565         SEAL, Oil 2
27 8M2011027         RETAINER 1 79448
28 28-30281         KEY 1
29 14-79447         TAB WASHER 1
30 13-423511         LOCKWASHER, Toothed 1
31 11-52707Q1         PROP NUT KIT, (.750-16) 1
32 832066A1         PLATE KIT, Water Inlet 1
33 10-188642         SCREW, (#8-32 x .500) 4
34 97-76214Q5         ANODE KIT 1
35 10-66024         SCREW, (.437-14 x 1.75) 1
36 11-859116         NUT, (.437-20) 2
37 10-30206         SCREW, (.375-16 x 1.00) Stainless Steel 1
38 12-822836         WASHER, (.445 x .805 x .108) 2
39 22-881866         FITTING 1
40 32-85944975         TUBING, (72.00 Inches Bulk), Cut to 7 Inches 1
- 26-89238A3         SEAL KIT, Gear Housing 1
