200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Cylinder Head

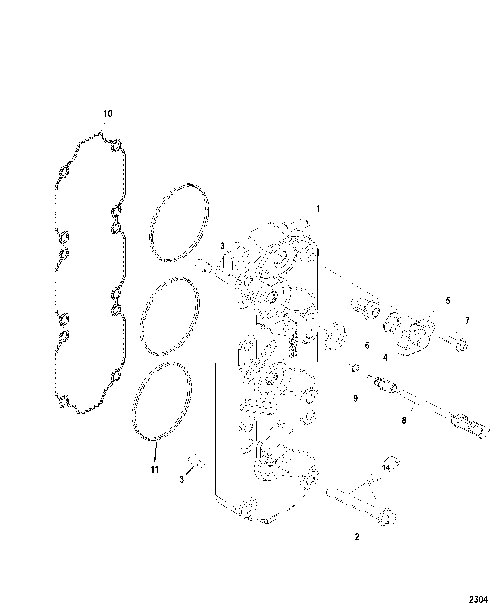

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components(Complete Powerhead and Lower Unit)
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840285T1 | CYLINDER HEAD | 1 | ||||||
| 1 | 840286T1 | CYLINDER HEAD | 1 | ||||||
| 2 | 10-878217 | SCREW, (.375-16 x 2.750) | 24 | ||||||
| 3 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 4 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 4 | 27-62386001 | GASKET | 2 | ||||||
| 5 | 8M0039353 | COVER | 2 | 8307372 | |||||
| 6 | 833072003 | THERMOSTAT, 62° Celsius (143° Fahrenheit) | 2 | 833072 | |||||
| 6 | 833072003 | THERMOSTAT, 62°C (143°F) | 2 | ||||||
| 7 | 10-82130025 | SCREW, (M6 x 25) | 4 | ||||||
| 8 | 885342002 | SENSOR ASSEMBLY | 2 | 885342001 | |||||
| 9 | 25-896699 | O-RING, (.351 x .072) | 2 | 888814 | |||||
| 10 | 8584521 | SEAL, Cylinder Head | 2 | ||||||
| 11 | 8597721 | SEAL, Cylinder Bore | 6 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
