200XS DFI 2.5L - Serial 0T818181 Thru 1E000796 - Key Switch/Instrumentation/Accessories

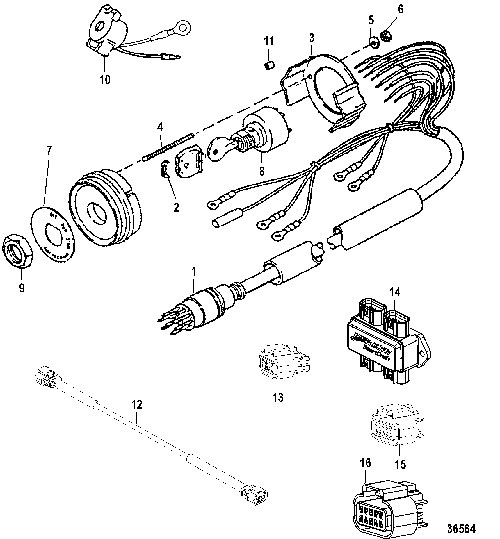

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components(Complete Powerhead and Lower Unit)
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-816626A15 | HARNESS ASSEMBLY, Key Switch (15.00 Feet) | 1 | ||||||
| 2 | 90468A1 | COVER ASSEMBLY, Key | 2 | ||||||
| 3 | 76424 | BRACKET | 1 | ||||||
| 4 | 16-55422 | STUD, (#10-32 x 2.00) | 2 | ||||||
| 5 | 12-24676 | WASHER, (.200 x .440 x .032) | 2 | ||||||
| 6 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 7 | 816479A3 | PLATE KIT | 2 | ||||||
| 8 | 87-88107A5 | SWITCH KIT, Key | 1 | ||||||
| 9 | 11-879755 | NUT, Special - Black Nylon | 1 | ||||||
| 10 | 8M3001068 | ALARM ASSEMBLY, Audio Warning | 1 | 816492A1 | |||||
| 10 | 8M0089727 | ALARM | 1 | 816492A2 | |||||
| 11 | 23-8127111 | SPACER, (.375) | 2 | ||||||
| 11 | 23-812711 | SPACER, (.250) | 2 | ||||||
| - | 894911 | KEY, Ignition (1A) | 1 | ||||||
| - | 894912 | KEY, Ignition (1B) | 1 | ||||||
| - | 894913 | KEY, Ignition (1C) | 1 | ||||||
| - | 894914 | KEY, Ignition (1D) | 1 | ||||||
| - | 894915 | KEY, Ignition (1E) | 1 | ||||||
| - | 894916 | KEY, Ignition (1F) | 1 | ||||||
| - | 894917 | KEY, Ignition (2A) | 1 | ||||||
| - | 894918 | KEY, Ignition (2B) | 1 | ||||||
| - | 894919 | KEY, Ignition (2C) | 1 | ||||||
| - | 8949110 | KEY, Ignition (2D) | 1 | ||||||
| - | 8949111 | KEY, Ignition (2E) | 1 | ||||||
| - | 8949112 | KEY, Ignition (2F) | 1 | ||||||
| 12 | 84-879981T20 | HARNESS ASSEMBLY, (SC1000R-20) | 1 | ||||||
| 13 | 859318T1 | TERMINATOR, 10 Pin (CAN 1 and 2) | 1 | ||||||
| 14 | 878492T14 | JUNCTION BOX, 4 Way | 1 | 878492T4 | |||||
| 15 | 859318T2 | CAP, Weather - 10 Pin | 1 | ||||||
| 16 | 84-879979T11 | HARNESS ASSEMBLY, Tachometer (SC1000-3) | 1 | 879979T1 | |||||
| - | 32-8M0038610 | HOSE ASSEMBLY, Fuel | 1 | No Longer Available |
