300 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Fuel Supply Module

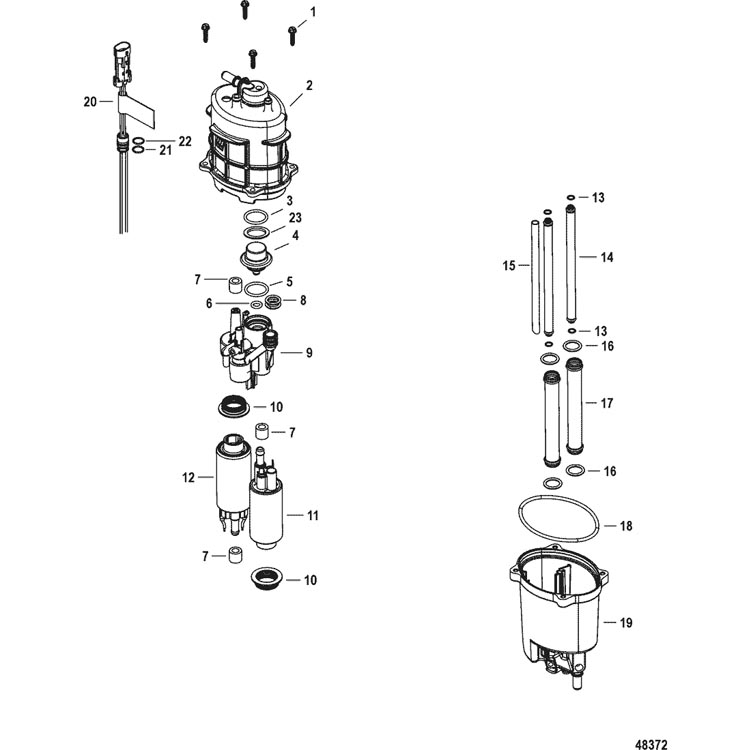

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 8M0102455         MODULE, Fuel Supply 1
1 10-8M0053756         SCREW, Plastite W/ HX WSR HD 4
2 8M0053726         FSM TOP HOUSING 1
3 NSS         O-ring 1   Not Sold Separate
4 8M0053749         REGULATOR ASSEMBLY 1
5 NSS         O-ring 1   Not Sold Separate
6 NSS         O-ring 1   Not Sold Separate
7 NSS           3   Not Sold Separate
8 NSS           2   Not Sold Separate
9 8M0053727         FSM CAP 1
10 NSS           2   Not Sold Separate
11 8M0103289         PUMP ASSEMBLY, Low Pressure 1
12 8M0103288         PUMP ASSEMBLY, High Pressure 1
13 NSS         O-ring 4   Not Sold Separate
14 32-8M0053735         TUBE 2
15 32-8M0053755         TUBE 1
16 NSS         O-ring 4   Not Sold Separate
17 32-8M0053734         TUBE 2
18 NSS         Seal 1   Not Sold Separate
19 8M0053725         FSM BOTTOM HOUSING 1
20 84-8M0103287         HARNESS ASSEMBLY, FSM 1
21 NSS         O-ring 1   Not Sold Separate
22 NSS         O-ring 1   Not Sold Separate
23 NSS         Spacer 1   Not Sold Separate
- 8M0057679         FSM SEAL KIT 1
