300 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Rear Cowl

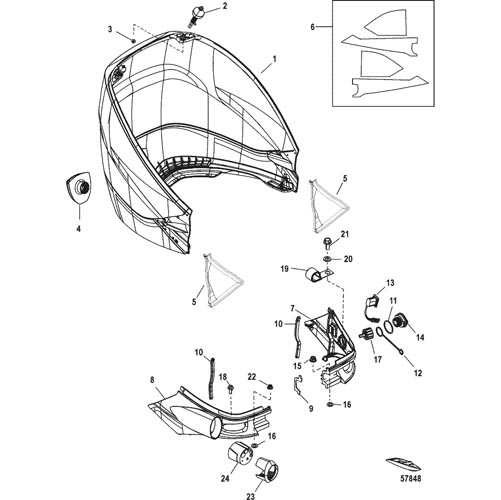

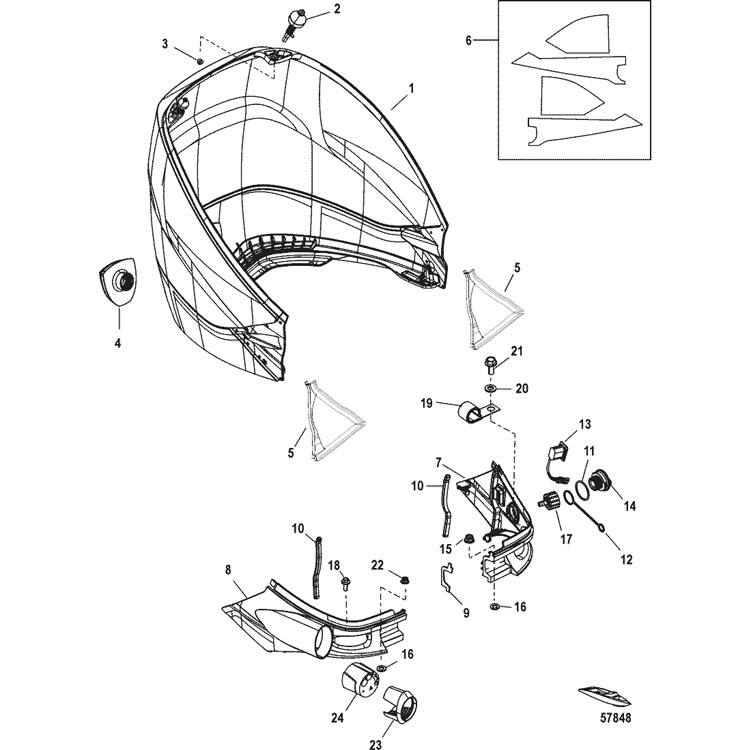

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 100-8M0100175         REAR COWL ASSEMBLY, Black Non-Decaled 1
2 17-888961A01         PIN ASSEMBLY 2
3 11-892233         NUT, (M6) Stainless Steel 2
4 885360         IDLE RELIEF 1
5 8M0100563         SEAL ASSEMBLY, Rear Cowl, Port and Starboard 1
6 NSS         SEAL, Starboard 1   Not Sold Separate
- 100-8M0100172         FRONT COWL ASSEMBLY, Port and Starboard, Mercury 1
7 NSS         Front Cowl, Port 1   Not Sold Separate
8 NSS         Front Cowl, Starboard 1   Not Sold Separate
9 27-892315         GASKET 1
10 8M0043266         SEAL 2
11 25-888957         O-RING 1
12 889823001         TETHER 1
13 87-8M0042300         SWITCH, Trim 1
14 22-888958001         PLUG, Flush 1
15 11-892233         NUT, (M6) Stainless Steel 1
16 12-4002316         WASHER 2
17 22-885361A01         FITTING ASSEMBLY, Flush 1
18 10-4006731         SCREW, (M6 x 16) 1
19 54-858951A01         CLAMP KIT 1
20 12-4002316         WASHER 1
21 10-4006731         SCREW, (M6 x 16) 1
22 11-892233         NUT, (M6) Stainless Steel 1
23 8M0043519         ADAPTOR 1
24 25-897169         GROMMET 1
25 8M4501634         SOUND BLANKET KIT 1
