300 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Gear Housing, Driveshaft, 4.80 Torpedo

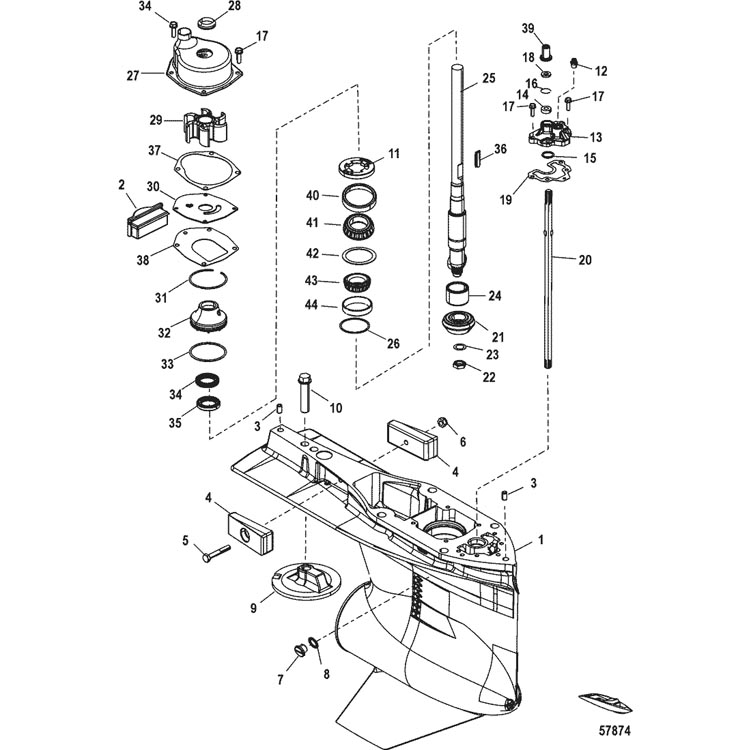

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1600-880686T13 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1600-880686T14 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1600-880686T54 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1600-880686T55 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 1 | 1600-8M0056631 | GEAR HOUSING ASSEMBLY, Basic | 1 | ||||||
| 2 | 8M0010459 | FILLER BLOCK | 1 | ||||||
| 3 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 4 | 97-826134Q | ANODE | 2 | ||||||
| 5 | 10-4000333 | SCREW, (M6 x 40) | 1 | ||||||
| 6 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 7 | 10-79953A04 | PLUG ASSEMBLY, (.375-16 x .250) | 1 | ||||||
| 8 | 26-830749 | SEAL | 1 | ||||||
| 9 | 97-76214Q5 | ANODE KIT | 1 | ||||||
| 10 | 10-806327 | SCREW, (.437-14 x 1.750) | 1 | ||||||
| 11 | 8245191 | RETAINER | 1 | ||||||
| 12 | 22-881866 | FITTING | 1 | ||||||
| 13 | 8M0047129 | COVER ASSEMBLY | 1 | ||||||
| 14 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 15 | 25-896522 | O-RING, (799 x .103) | 1 | ||||||
| 16 | 53-8M0046563 | RETAINING RING | 1 | ||||||
| 17 | 10-8M4503518 | SCREW , (M6 X 1.0 X 20) | 4 | ||||||
| 18 | 12-77674 | WASHER | 1 | ||||||
| 19 | 27-880729 | 700-37860 | GASKET | 1 | |||||
| 20 | 824145 | SHIFT SHAFT | 1 | ||||||
| 21 | NSS | Pinion Gear 13 Teeth | 1 | Not Sold Separate | |||||
| 22 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 23 | 12-92721 | WASHER | 1 | ||||||
| 24 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 25 | 45-888572 | DRIVESHAFT | 1 | ||||||
| 25 | 45-888573 | DRIVESHAFT | 1 | ||||||
| 26 | 15-8M0063268 | SHIM SET | AR | ||||||
| 27 | 817275A09 | HOUSING, Water Pump-Complete | 1 | ||||||
| 28 | 26-861415A1 | SEAL KIT | 1 | ||||||
| 29 | 47-43026T2 | 676-9-43507 | 700-89630 | IMPELLER | 1 | ||||
| 30 | 8172761 | FACEPLATE | 1 | ||||||
| 31 | 53-880719 | RING, Retaining | 1 | ||||||
| 32 | 8M0007131 | CARRIER ASSEMBLY, Oil Seal | 1 | ||||||
| 33 | 25-896523 | O-RING, (2.175 x .103) | 1 | ||||||
| 34 | NSS | Oil Seal | 1 | Not Sold Separate | |||||
| 35 | NSS | Oil Seal | 1 | Not Sold Separate | |||||
| 36 | 28-8M0032833 | KEY | 1 | ||||||
| 37 | 27-8172771 | GASKET | 1 | ||||||
| 38 | 27-430331 | GASKET | 1 | ||||||
| 39 | 43585 | COUPLING | 1 | ||||||
| 40 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 41 | NSS | Roller Bearing | 1 | Not Sold Separate | |||||
| 42 | 15-8M0063267 | SHIM SET | 1 | ||||||
| 43 | 31-48939A2 | BEARING, Tapered Roller | 1 | ||||||
| 44 | NSS | CUP | 1 | Not Sold Separate | |||||
| - | 26-830749A01 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 47-8M0100526 | REPAIR KIT, Water Pump Impeller | 1 | 43026Q06 | |||||
| - | 817275A08 | REPAIR KIT, Water Pump-Upper | 1 |
