300 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Top Cowl

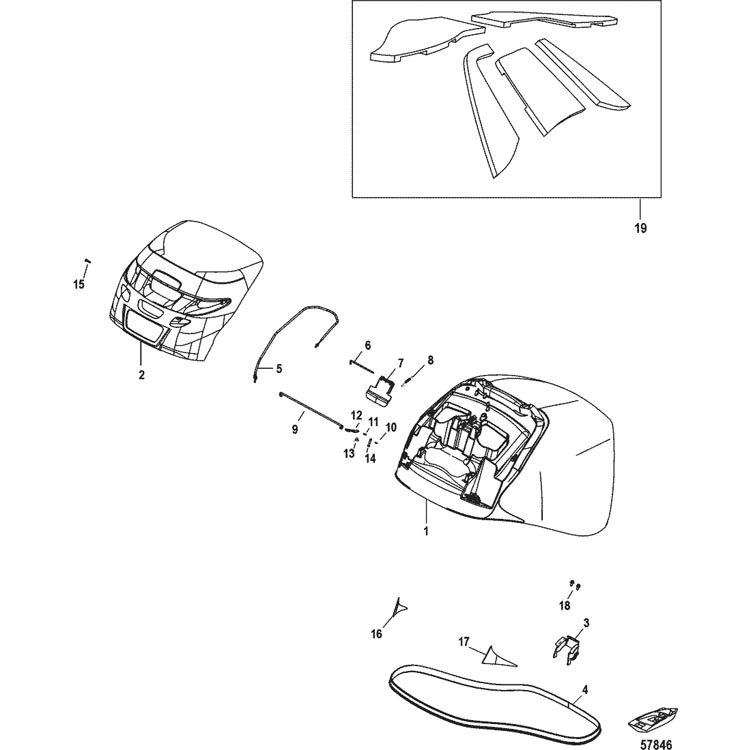

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 100-8M0100179         TOP COWL ASSEMBLY, Mercury Pro, Decaled 1
1 100-8M0100220         TOP COWL ASSEMBLY, Mercury, Non-Decaled 1
2 885354T01         CAP, Air Dam, Mercury, Black 1
3 888971         FRONT LATCH RECEIVER 1
4 8M0043229         SEAL 1
5 8M0080461         CABLE, Latch 1
6 17-888959         PIN, Hinge 1
7 888956         LATCH, Hand Lever 1
8 24-895373         SPRING 1
9 888955         LINK, Latch Connecting 1
10 18-26953         COTTER PIN 2
11 12-89302         WASHER, (.203 x .406 x .040) 2
12 888952         LINKAGE ARM 2
13 24-888953         SPRING 2
14 17-822417         PIN 2
15 10-897678020         SCREW, (M4 x 20mm) 6
16 8M0033614         APPLIQUE, Port, Mercury 1
17 8M0033615         APPLIQUE, Starboard, Mercury 1
18 10-88552512         SCREW, (M6 x 12 MM) Stainless Steel 2
19 8M4501639         SOUND BLANKET KIT 1
