4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - CARBURETOR (MERCARB-2 BARREL)

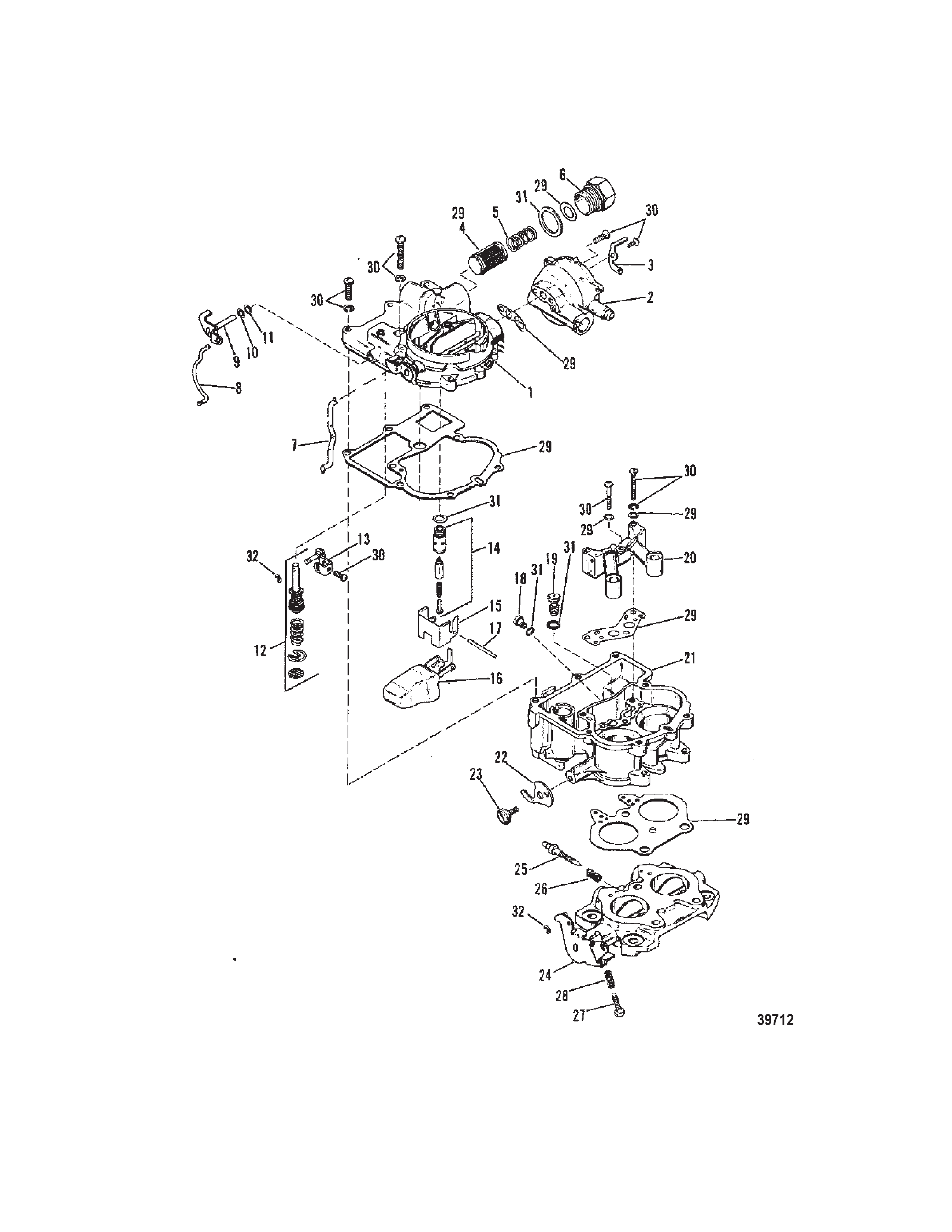

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 3304 | 9565A7 | CARBURETOR | 1 | [1] | |
| 1 | N.S.S. | Not Sold Separate AIR HORN | 1 | |||
| 2 | N.S.S. | Not Sold Separate CHOKE HOUSING | 1 | |||
| 3 | 3302 | 9037 | ARM Choke | 1 | ||
| 4 | 3302 | 9033 | STRAINER | 1 | ||
| 5 | 3302 | OEM: 525-3302-9032 | SPRING | 1 | ||
| 6 | 3302 | 9034 | CONNECTOR | 1 | ||
| 7 | 3302 | 9042 | ROD Choke | 1 | ||
| 8 | 3302 | 9041 | ROD Pump | 1 | ||
| 9 | 3302 | 9035 | LEVER | 1 | ||
| 10 | 3302 | 9039 | WASHER | 1 | ||
| 11 | 3302 | 9040 | WASHER | 1 | ||
| 12 | 3302 | 9655 | PUMP KIT Accelerator | 1 | [2] | |
| 13 | 3302 | 9036 | ARM | 1 | ||
| 14 | 3302 | OEM: 525-3302-9407, GLM: 700-40750 | SEAT KIT Inlet | 1 | ||
| 15 | 3302 | 9038 | PLATE Baffle | 1 | ||
| 16 | 3302 | OEM: 525-3302-9031, Sierra: 676-18-7202 | FLOAT | 1 | ||
| 17 | 3302 | 9030 | PIN Float | 1 | ||
| 18 | 3302 | OEM: 525-3302-810923 | JET Main Main | 1 | ||
| 19 | 3302 | OEM: 525-3302-9435 | JET Power | 1 | ||
| 20 | 3302 | 9436 | VENTURI | 1 | ||
| 21 | N.S.S. | Not Sold Separate CARBURETOR BODY | 1 | |||
| 22 | 3302 | OEM: 525-3302-9048 | CAM | 1 | ||
| 23 | 3302 | OEM: 525-3302-9049 | SHAFT | 1 | ||
| 24 | N.S.S. | Not Sold Separate FLANGE ASSEMBLY | 1 | |||
| 25 | 3302 | OEM: 525-3302-9052 | SCREW | 1 | ||
| 26 | 3302 | OEM: 525-3302-9053 | SPRING | 1 | ||
| 27 | 3302 | OEM: 525-3302-9060 | SCREW | 1 | ||
| 28 | 3302 | OEM: 525-3302-9054 | SPRING | 1 | ||
| 29 | 3302 | 9061 | GASKET SET | 1 | ||
| 30 | 3302 | 810930 | SCREW KIT | 1 | ||
| 31 | 3302 | OEM: 525-3302-9044 | PACKING SET | 1 | ||
| 32 | 3302 | 9658 | E-RING | 2 | ||
| - | 3302 | OEM: 530-804844002, Sierra: 676-18-7098-1, GLM: 700-76086 | CARBURETOR REPAIR KIT | 1 | [2] |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
9565A 7QS
[2] - Alternate part numbers:
804844002Kit
9655Service Part
