4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - INTAKE MANIFOLD AND FRONT COVER

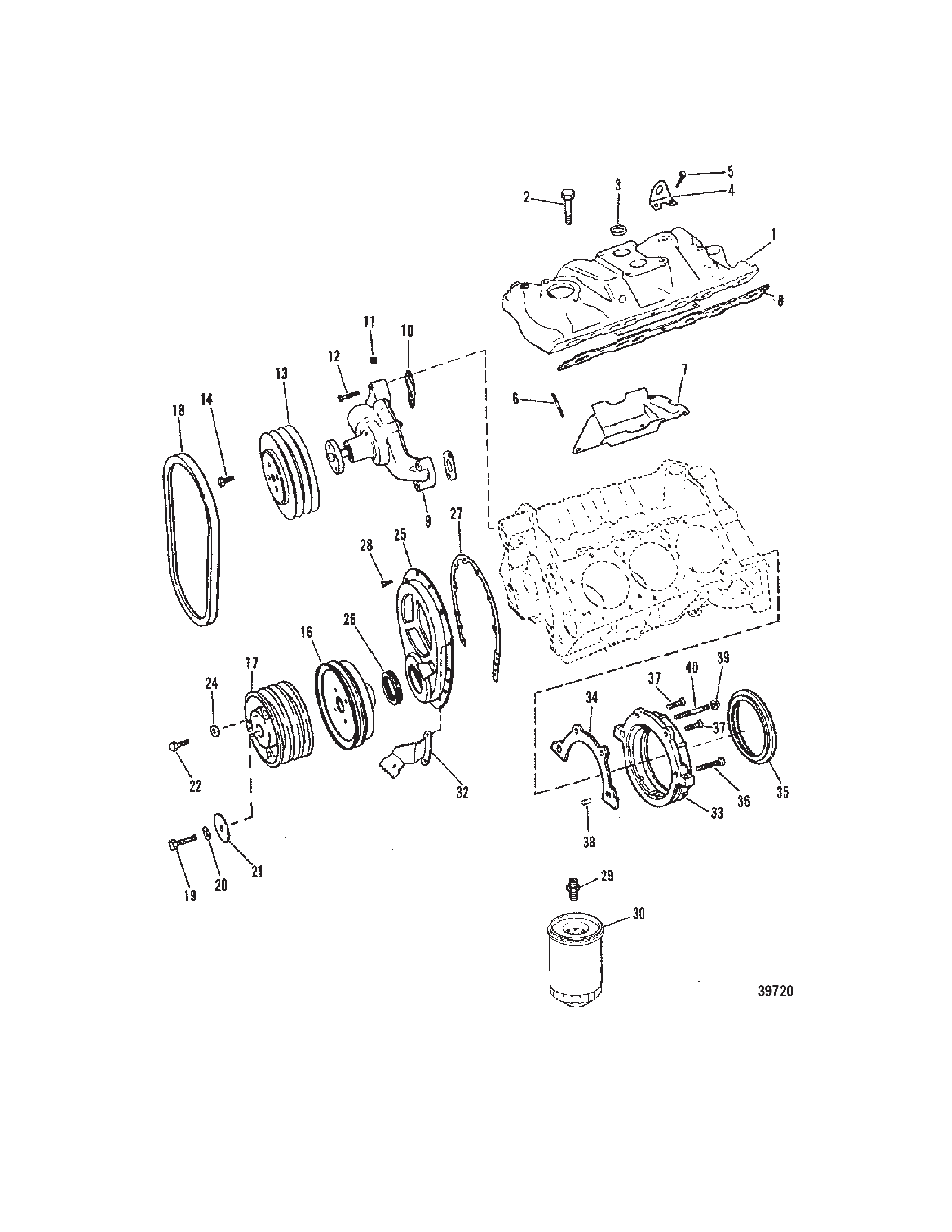

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 11974 | MANIFOLD Intake (2 BARREL) | 1 | ||
| 1 | 0000 | 42752 | MANIFOLD Intake (4 BARREL) | 1 | ||
| 2 | 0010 | OEM: 525-10-11976 | SCREW (.375-16 x 1.00) | 8 | ||
| 2 | 0010 | 11975 | BOLT (3/8-16 x 1.25) | 4 | ||
| 3 | 0022 | OEM: 525-22-75983 | PLUG | 1 | ||
| 4 | 0000 | 42453 | BRACKET (FRONT) | 1 | ||
| 4 | 0000 | 42745 | BRACKET (REAR) | 1 | ||
| 5 | 0010 | OEM: 525-10-34354, GLM: 700-22447 | SCREW (.375-16 x 1.50) | 1 | ||
| 6 | N.S.S. | Not Sold Separate STUD (GM#3959544) | 4 | |||
| 7 | 0000 | 42753 | GUARD | 1 | ||
| 8 | 0027 | OEM: 525-27-11977, Sierra: 676-18-4408, GLM: 700-30351 | GASKET SET | 1 | [1] | |
| 9 | 0000 | 811841 | PUMP ASSEMBLY Water | 1 | ||
| 10 | 0027 | OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 | GASKET | 2 | [1] | |
| 11 | 0022 | OEM: 525-22-48336 | PLUG Water Pump | 1 | ||
| 12 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 1 | ||
| 12 | 0010 | OEM: 525-10-47688 | SCREW (.375-16 x 2.750) | 1 | ||
| 12 | 0010 | 52200 | SCREW (1.625 In.) (1-1/2") | 1 | ||
| 12 | N.S.S. | Not Sold Separate STUD (GM#3759755) | 1 | |||
| 13 | 0000 | 19692T | PULLEY (7 In. Diameter) | 1 | ||
| 14 | 0010 | OEM: 525-10-47277 | SCREW (.312-24 x .750) | 4 | ||
| 16 | 0000 | 11990 | BALANCER | 1 | ||
| 17 | 0000 | 90081T1 | PULLEY | 1 | ||
| 18 | 0057 | 48120A1 | V BELT (46 Inch) | 1 | ||
| 19 | 0010 | 32515 | SCREW (.437-20 x 2.50) | 1 | ||
| 20 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 1 | ||
| 21 | 0012 | 35332 | WASHER | 1 | ||
| 22 | 0010 | OEM: 525-10-53833 | BOLT (.375-24 x 2.00) | 3 | ||
| 24 | 0012 | OEM: 525-12-34714 | WASHER | 3 | ||
| 25 | 0000 | 60660 | COVER | 1 | ||
| 26 | 0026 | OEM: 525-26-97335, Sierra: 676-18-1213 | SEAL Oil | 1 | [1] | |
| 27 | 0027 | OEM: 525-27-14250, Sierra: 676-18-0976, GLM: 700-30530 | GASKET | 1 | [1] | |
| 28 | 0010 | OEM: 525-10-35366 | SCREW | 10 | ||
| 29 | 0000 | 11972 | ADAPTER W/O REMOTE OIL FILTER | 1 | ||
| 30 | 0000 | 41815 | FILTER Oil | 1 | [2] | |
| 32 | 0000 | OEM: 525-75435A1 | POINTER | 1 | ||
| 33 | 0000 | OEM: 525-14239 | RETAINER Oil Seal (REAR) | 1 | ||
| 34 | 0027 | 14241 | GASKET | 1 | [1] | |
| 35 | 0026 | OEM: 525-26-14240, Sierra: 676-18-0519, GLM: 700-85790 | SEAL Oil (REAR) | 1 | [1] | |
| 36 | 0010 | 14243 | BOLT (.250-20 x 1.750) | 1 | ||
| 37 | 0010 | OEM: 525-10-14242 | BOLT (.250-20 x .875) | 2 | ||
| 38 | 0017 | OEM: 525-17-14263 | PIN Dowel | 1 | ||
| 39 | 0011 | OEM: 525-11-11996 | NUT | 1 | ||
| 40 | 0016 | OEM: 525-16-14827 | STUD (.250-20 x 2.180) | 1 |
PART NOTES:
[1] - 11977A92 GASKET SET, ENGINE OVERHAUL
[2] - Alternate part numbers:
41815Service Part
883702KMPP
883702QQS
