4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - CRANKSHAFT AND PISTONS

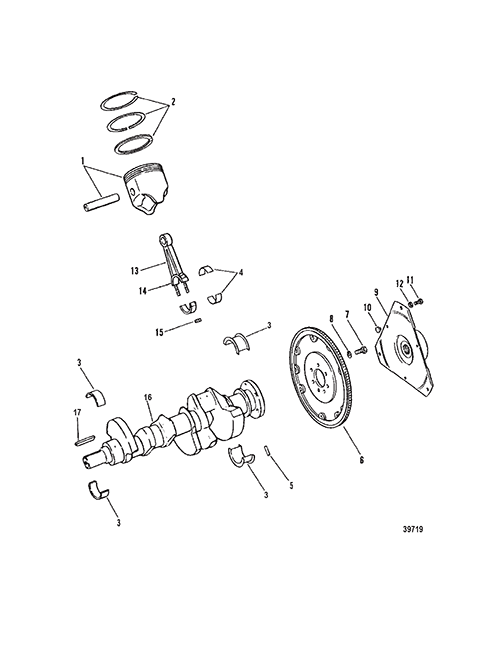

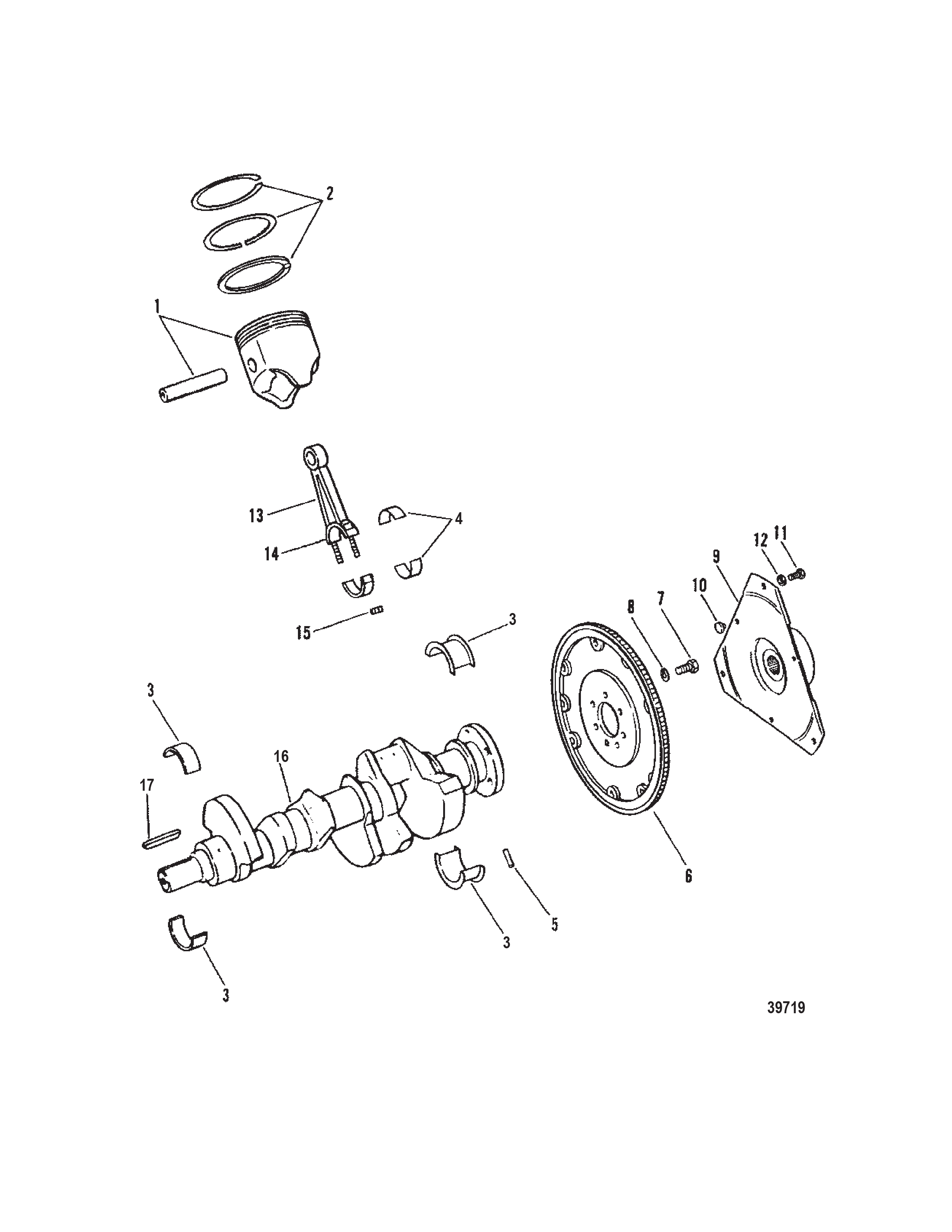

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0735 | 9686 | PISTON ASSEMBLY (Standard) | (SEE NOTE) | 6 | |
| 1 | 0735 | 9687 | PISTON ASSEMBLY (.030 O.S.) | AR | ||
| 2 | 0039 | OEM: 525-39-17464, Sierra: 676-18-3937 | RING SET Piston (Standard) | (SEE NOTE) | 6 | |
| 2 | 0039 | OEM: 525-39-17465, Sierra: 676-18-3938 | RING Piston (.030 O.S.) | AR | ||
| 3 | 0023 | OEM: 525-23-818465, Sierra: 676-18-1300 | BEARING SET 5 Pair (Standard) | 1 | ||
| 3 | 0023 | OEM: 525-23-818466 | BEARING SET 5 Pair (.001 U.S.) | AR | ||
| 3 | 0023 | OEM: 525-23-818467 | BEARING SET 5 Pair (.010 U.S.) | AR | ||
| 3 | 0023 | OEM: 525-23-818468 | BEARING SET 5 Pair (.020 U.S.) | AR | ||
| 4 | 0023 | 11992 | BEARING (Standard - PAIR) | 6 | ||
| 4 | 0023 | OEM: 525-23-11993 | BEARING (.001 U.S. - PAIR) | AR | ||
| 4 | 0023 | 811858 | BEARING (.010 U.S. - PAIR) | AR | ||
| 4 | 0023 | OEM: 525-23-811859 | BEARING (.020 U.S. - PAIR) | AR | ||
| 5 | 0017 | 35312 | PIN Dowel (1/4 In. Diameter) | 2 | ||
| 6 | 0222 | 9518 | FLYWHEEL | 1 | ||
| 7 | 0010 | 49845 | SCREW (.437-20 x 1.00) | 6 | ||
| 8 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 6 | ||
| 9 | 0000 | 18643A2 | COUPLING ASSEMBLY | 1 | ||
| 10 | 0000 | OEM: 525-18644 | BUMPER Rubber | 3 | ||
| 11 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 3 | ||
| 12 | 0012 | OEM: 525-12-13510 | WASHER | 3 | ||
| 13 | 0614 | 811839 | CONNECTING ROD | 6 | ||
| 14 | 0010 | OEM: 525-10-11969 | BOLT | 12 | ||
| 15 | 0011 | 37493 | NUT (.375-24) | 12 | ||
| 16 | 0429 | 9517A1 | CRANKSHAFT | 1 | ||
| 17 | 0028 | 818485 | KEY | 1 |
