4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - ENGINE MOUNTING

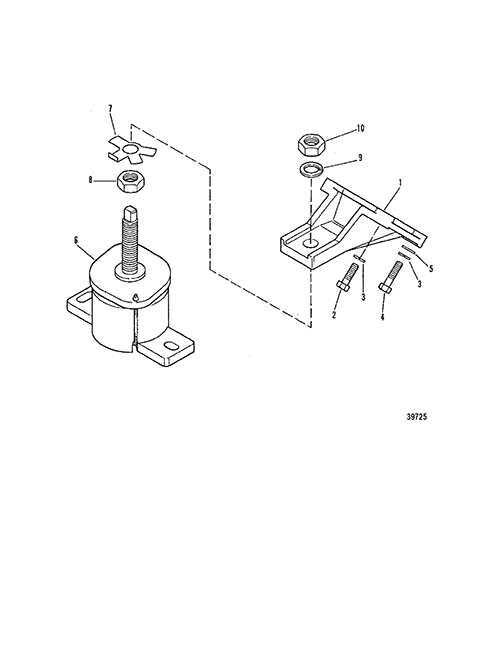

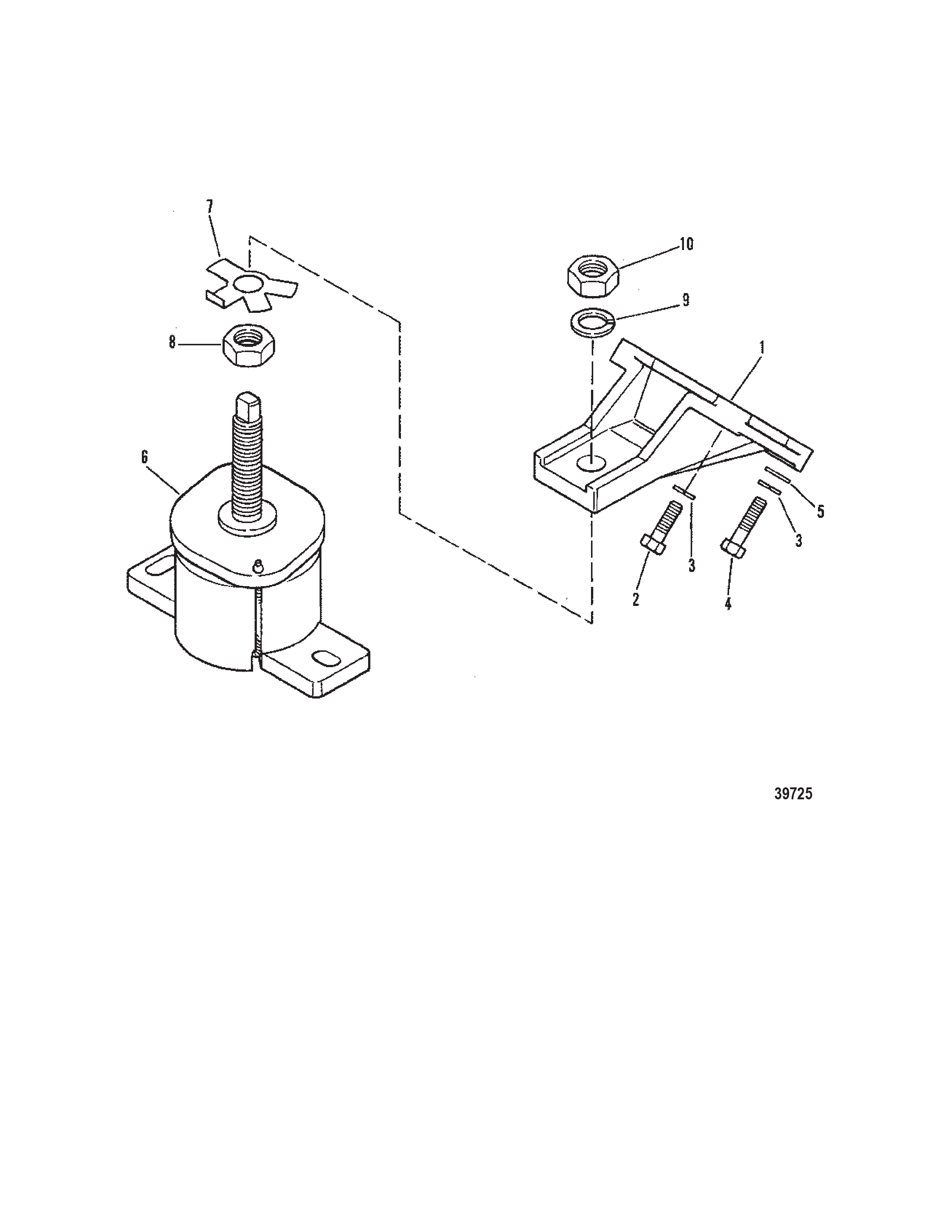

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 18645T | BRACKET (FRONT) | 2 | ||
| 2 | 0010 | OEM: 525-10-68101 | SCREW (.375-16 x 1.375) | 5 | ||
| 3 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 5 | ||
| 4 | 0010 | OEM: 525-10-48424 | SCREW (.375-16 x 1.620) | 1 | ||
| 5 | 0012 | OEM: 525-12-46132 | WASHER | 1 | ||
| 6 | 0000 | 18098A3 | FLUID MOUNT | 2 | ||
| 7 | 0014 | OEM: 525-14-12657 | TAB WASHER | 2 | ||
| 8 | 0011 | OEM: 525-11-20739 | NUT (.750-16) | 2 | ||
| 9 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) | 2 | ||
| 10 | 0011 | OEM: 525-11-20739 | NUT (.750-16) | 2 |
