4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - CYLINDER HEAD AND ROCKER COVER

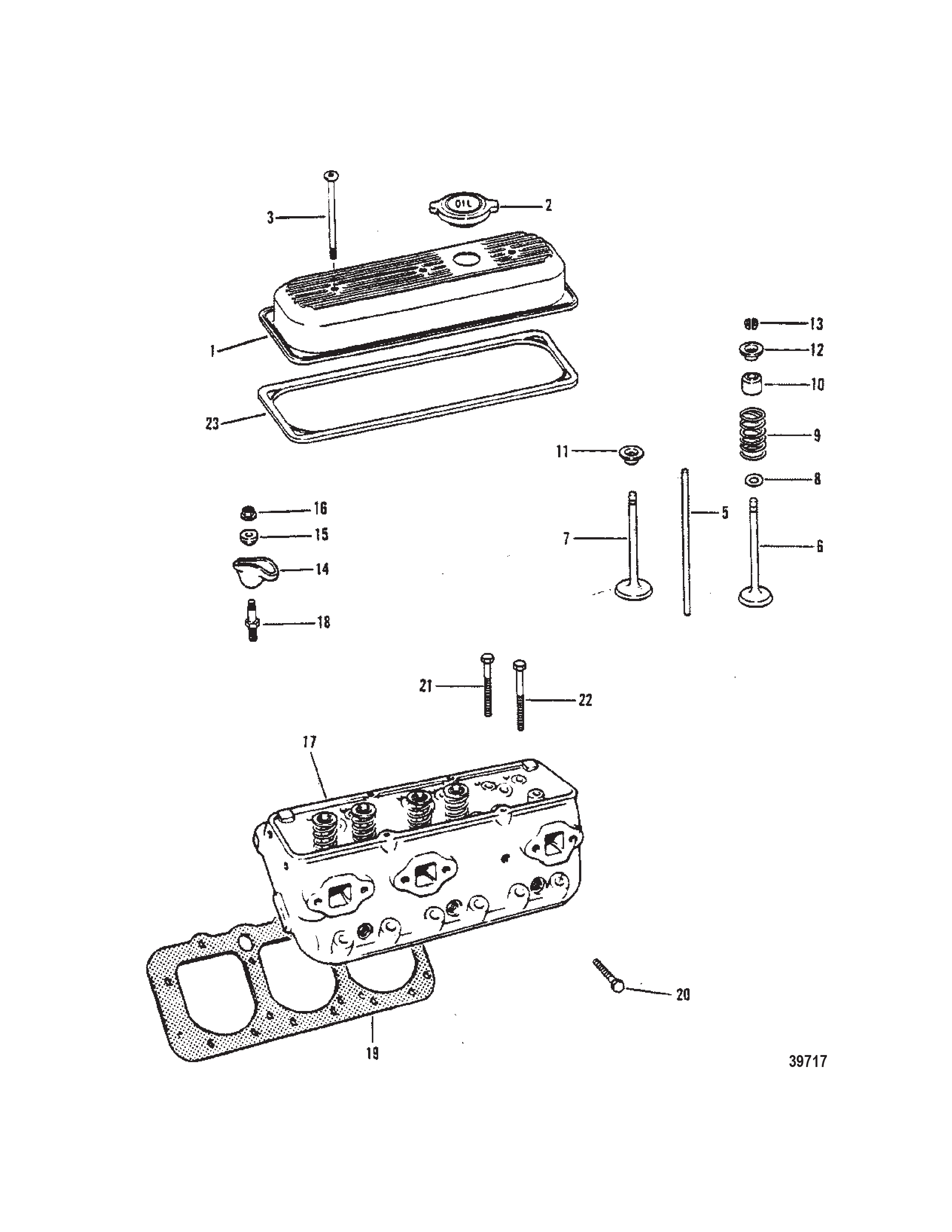

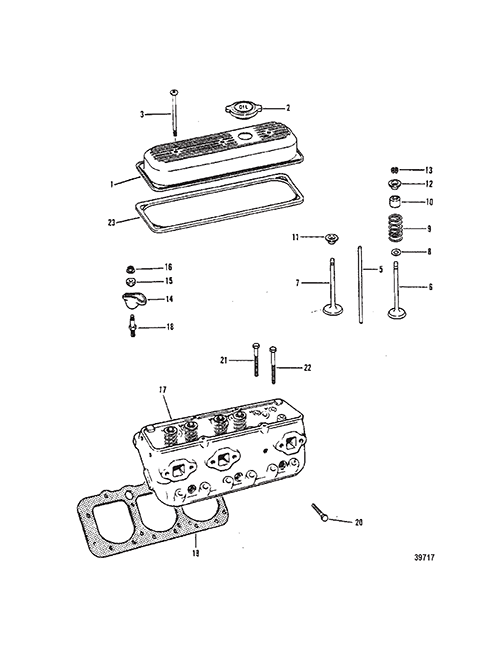

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 14252 | ROCKER COVER (RIGHT) | 1 | ||
| 1 | 0000 | 814504 | ROCKER COVER (LEFT) | 1 | ||
| 2 | 0036 | 18710 | CAP Metal Rocker Cover | 1 | ||
| 3 | 0010 | 811842 | SCREW | 6 | ||
| 5 | 0000 | 17339 | PUSH ROD | 12 | ||
| 6 | 0000 | OEM: 525-85803 | VALVE (STANDARD) | 6 | ||
| 6 | 0000 | 49076 | VALVE (.015 O.S.) | AR | ||
| 7 | 0000 | OEM: 525-97661 | VALVE Intake-Standard Intake (STANDARD) | 6 | ||
| 7 | 0000 | 97662 | VALVE Intake (.015 O.S.) | AR | ||
| 8 | 0026 | OEM: 525-26-34217, Sierra: 676-18-0518 | SEAL (INLET AND EXHAUST) | 12 | [1] | |
| 8 | 0026 | 97664 | SEAL (INLET) | 6 | [1] | |
| 9 | 0024 | OEM: 525-24-48347, Sierra: 676-18-4442 | SPRING (INLET AND EXHAUST) | 12 | ||
| 10 | 0000 | 34518 | SHIELD | 12 | ||
| 11 | 0000 | 48348 | CAP | 6 | ||
| 12 | 0000 | 11965 | ROTATOR | 6 | ||
| 13 | 0028 | 54797 | KEY | 24 | ||
| 14 | 0000 | 824335 | ROCKER ARM AND BALL KIT | 12 | ||
| 15 | NSS | NOT SOLD SEPARATE | 12 | |||
| 16 | 0011 | OEM: 525-11-801883 | NUT | 12 | ||
| 17 | 0938 | 9427 | CYLINDER HEAD | 2 | ||
| 18 | 0016 | 801882 | STUD | 12 | ||
| 19 | 0027 | 816460 | GASKET | 2 | [1] | |
| 20 | 0010 | OEM: 525-10-11968 | SCREW (.437-14 x 1.750) | 12 | ||
| 21 | 0010 | 11967 | BOLT (3 In.) (3") | 4 | ||
| 22 | 0010 | OEM: 525-10-11966 | SCREW (.437-14 x 3.750) | 10 | ||
| 23 | 0027 | OEM: 525-27-11988, Sierra: 676-18-0311, GLM: 700-30359 | GASKET Metal Rocker Cover | 2 | [1] |
PART NOTES:
[1] - 11977A92 GASKET SET, ENGINE OVERHAUL
