350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Alternator And Brackets

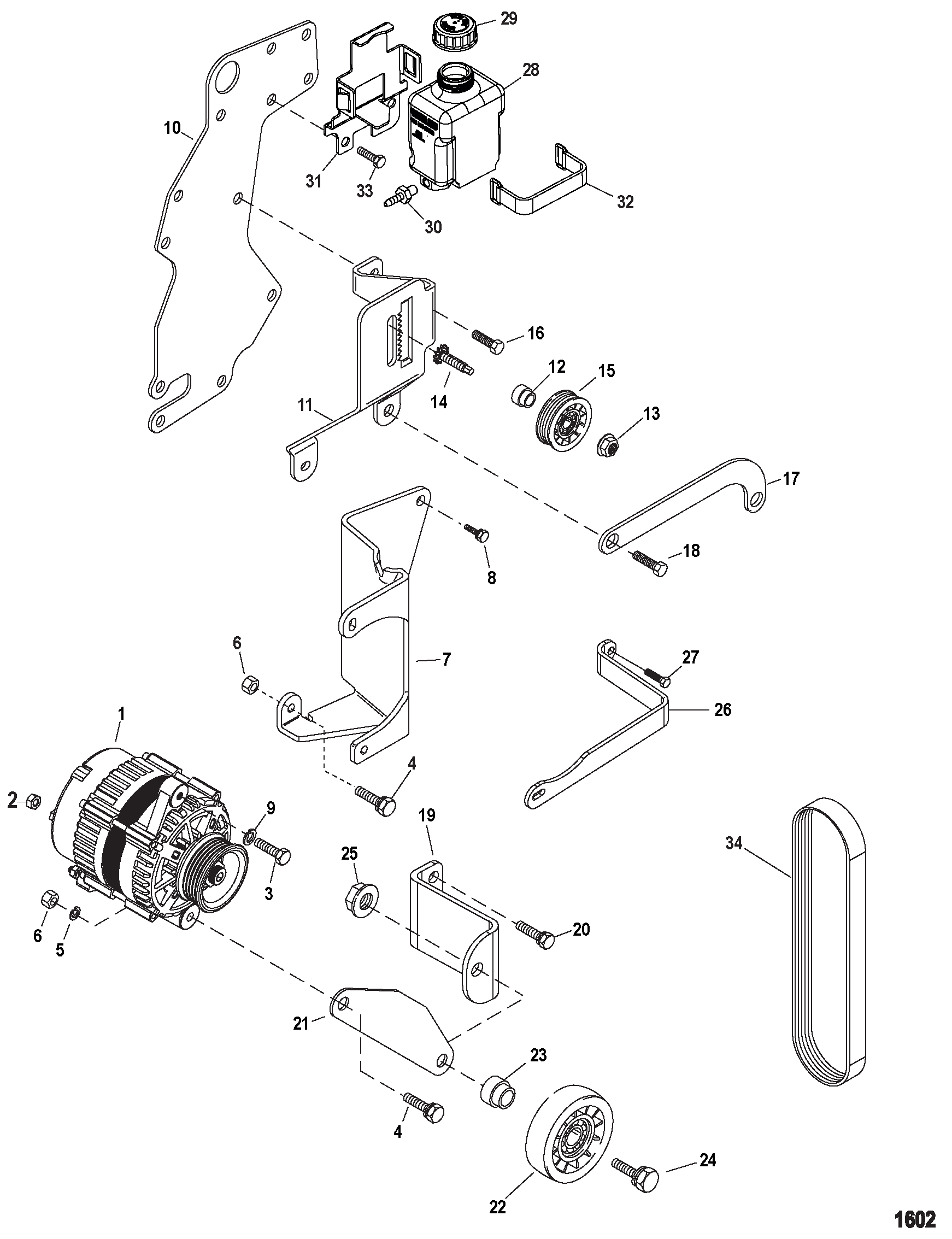

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 530-862031T1, Sierra: 676-18-6293 | ALTERNATOR ASSEMBLY (65 Amp - With 62mm Pulley) | [0M320024] & Below | 1 | [1] |
| 1 | 0000 | OEM: 530-863077T, Sierra: 676-18-6298 | ALTERNATOR ASSEMBLY Black (65 Amp - With 50mm Pulley) | (Non Serviceable) [0M320025] & Up | 1 | [2] |
| 2 | 0011 | OEM: 525-11-400212 | NUT (M6) Stainless Steel | 2 | ||
| 3 | 0010 | OEM: 525-10-40001134 | SCREW (M8 x 25) | 1 | ||
| 4 | 0010 | OEM: 525-10-828213 | SCREW (.312-18 x 1.500) Hex Flange | 2 | ||
| 5 | 0012 | OEM: 525-12-57792 | WASHER | 2 | ||
| 6 | 0011 | 859119 | NUT (.312-18) | 2 | ||
| 7 | 0000 | 862055T | BRACKET Alternator Mounting | 1 | ||
| 8 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 9 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) | 1 | ||
| 10 | 0000 | OEM: 525-863443T1 | BRACKET | (Standard Cooling) | 1 | |
| 10 | 0000 | OEM: 525-863443T3 | BRACKET | (Closed Cooling) | 1 | |
| 11 | 0000 | OEM: 525-862083T | BRACKET Idler Adjusting | 1 | ||
| 12 | 0000 | 818380T | BUSHING | 1 | ||
| 13 | 0011 | OEM: 525-11-859135, GLM: 700-28410 | NUT (.437-20) Brass/Nickel Plated | 1 | ||
| 14 | 0043 | OEM: 525-43-8183812 | PINION STUD (.437-20) Stainless Steel | 1 | ||
| 15 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black (3 Inch Diameter) | [0M320024] & Below | 1 | |
| 15 | 0000 | OEM: 530-864625T | PULLEY (4.25 Inch Diameter) | (With Power Steering) [0M320025] & Up | 1 | [3] |
| 15 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black (3 Inch Diameter) | (CHS and Non Power Steering) [0M320025] & Up | 1 | |
| 16 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 2 | ||
| 17 | 0000 | OEM: 525-862082T | BRACE Power Steering Brace | 1 | ||
| 18 | 0010 | OEM: 525-10-40001188 | SCREW (M10 x 20) | 1 | ||
| 19 | 0000 | OEM: 525-864456T | BRACKET Alternator Brace | (Bravo) (Alpha With Sea Pump) | 1 | |
| 20 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 21 | 0000 | OEM: 525-862085T | BRACE Idler Bracket | (Bravo) (Alpha With Sea Pump) | 1 | |
| 22 | 0000 | 818382 | PULLEY | (Bravo) (Alpha With Sea Pump) | 1 | |
| 23 | 0000 | 818380T | BUSHING | (Bravo) (Alpha With Sea Pump) | 1 | |
| 24 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | (Bravo) (Alpha With Sea Pump) | 1 | |
| 25 | 0011 | OEM: 525-11-859135, GLM: 700-28410 | NUT (.437-20) Brass/Nickel Plated | (Bravo) (Alpha With Sea Pump) | 1 | |
| 26 | 0000 | OEM: 525-862778 | BRACKET Alternator Brace | (Alpha With Out Sea Pump) | 1 | |
| 27 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 1 | ||
| 28 | 0000 | 806193A30 | RESERVOIR Drive Lube Reservoir | 1 | ||
| 29 | 0036 | OEM: 530-8067271 | CAP Drive Lube Monitor Drive Lube Reservoir Bottle | 1 | ||
| 30 | 0022 | OEM: 525-22-808624 | CONNECTOR | 1 | ||
| 31 | 0000 | OEM: 525-860065A1 | BRACKET KIT Oil Bottle - Reservoir Mounting | 1 | ||
| 32 | 0000 | OEM: 525-808023T | STRAP Bracket - Retaining | 1 | ||
| 33 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 3 | ||
| 34 | 0057 | 8620861 | BELT Serpentine | (Alpha) (With Power Steering) [0M320024] & Below | 1 | |
| 34 | 0057 | 8638764 | BELT Serpentine | (Alpha Standard Cooling) (With Power Steering) [0M320025] & Up | 1 | |
| 34 | 0057 | 862088 | BELT Serpentine | (Alpha) (CHS And Non Power Steering) [0M320024] & Below | 1 | |
| 34 | 0057 | 8638769 | BELT Serpentine | (Alpha Standard Cooling) ( CHS And Non Power Steering) [0M320025] & Up | 1 | |
| 34 | 0057 | 862087 | BELT Serpentine | (Bravo) (With Power Steering) [0M320024] & Below | 1 | |
| 34 | 0057 | 8638763 | BELT Serpentine | (Bravo) (Alpha Closed Cooling) (With Power Steering) [0M320025] & Up | 1 | |
| 34 | 0057 | 862089 | BELT Serpentine | (Bravo) (CHS And Non Power Steering) [0M320024] & Below | 1 | |
| 34 | 0057 | 8638768 | BELT Serpentine | (Bravo) (Alpha Closed Cooling) (CHS And Non Power Steering) [0M320025] & Up | 1 |
PART NOTES:
[1] - Alternate part numbers:
862031R01Reman
862031T 1QS
[2] - Alternate part numbers:
863077R01Reman
863077TQS
[3] - Part Is New And Listed For The First Time
