350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Cylinder Block-Flywheel Housing

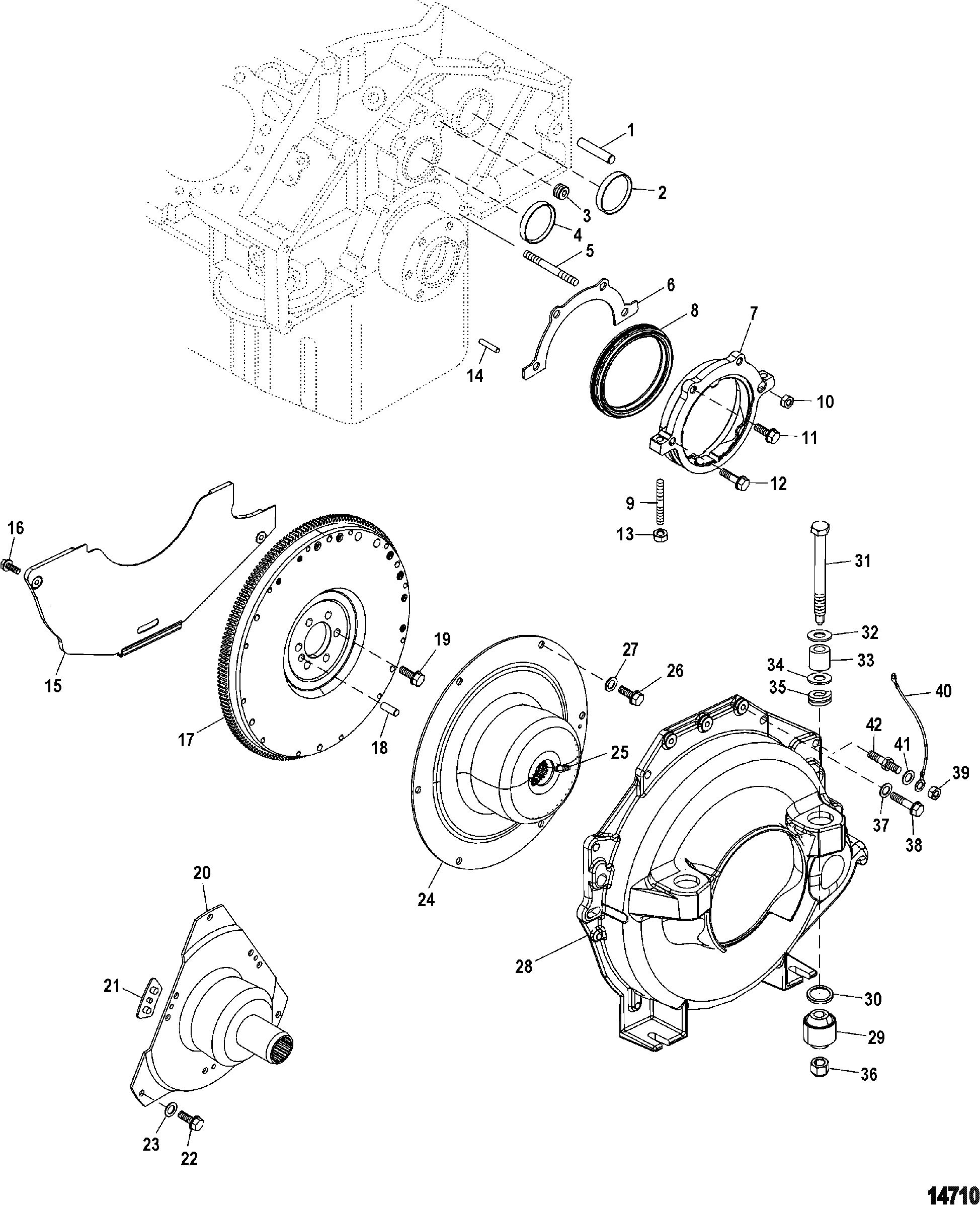

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17-843379 | PIN, Dowel, Flywheel Housing Location | 2 | 17-72382 | 4 | ||||
| 2 | 19-34270 | EXPANSION PLUG, (1.625), Engine Core Hole | 8 | 4 | |||||
| 3 | 22-48340 | PLUG, (.250-18 x .41), Oil Galley | 3 | 4 | |||||
| 4 | 22-72640 | PLUG, Camshaft Bearing Hole | 1 | 4 | |||||
| 5 | 16-14827 | STUD, (.250-20 x 2.180) | 2 | 4 | |||||
| 6 | 27-881715 | GASKET, Crankshaft Oil Seal Housing | 1 | 2,4 | |||||
| 7 | 852940 | HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal | 1 | 4 | |||||
| 8 | 26-852941 | SEAL, Crankshaft Oil | 1 | 2,4 | |||||
| 9 | 16-11989 | STUD, (.312-18 x 1.6718) | 2 | 4 | |||||
| 10 | 11-8167301 | NUT, (.250-20) | 1 | 11-816730 | 4 | ||||
| 11 | 10-14242 | BOLT, (.250-20 x .875) | 2 | 4 | |||||
| 12 | 10-8M0064241 | BOLT, (.250-20 x 1.750) | 1 | 10-14243 | 4 | ||||
| 13 | 11-11971 | NUT, (.312-18) | 2 | 4 | |||||
| 14 | 17-14263 | PIN, Dowel, Oil Seal Housing Locating | 1 | 4 | |||||
| 15 | 807260A2 | COVER KIT, Flywheel | 1 | ||||||
| NS | 11-807296 | NUT, (.250-20) | 2 | ||||||
| 16 | 10-76596 | SCREW, (.250-20 x 1.250) | 2 | ||||||
| 17 | 8M0047213 | FLYWHEEL | 1 | 222-9520 | 4 | ||||
| 18 | 17-43504 | PIN, Dowel, Flywheel | 2 | 4 | |||||
| 19 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | 4 | ||||
| 20 | 18643A5 | COUPLING ASSEMBLY | 1 | (Alpha) | |||||
| NS | 22-74036 | FITTING, Grease | 1 | (Alpha) | |||||
| 21 | 18644 | BUMPER, Rubber | 3 | (Alpha) | |||||
| 22 | 10-14883 | SCREW, (.375-16 x 1.12) | 3 | (Alpha) | |||||
| 23 | 12-13510 | WASHER | 3 | (Alpha) | |||||
| 24 | 861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | (Bravo) | |||||
| 24 | 861523A11 | COUPLER ASSEMBLY, Engine (Steel hub) Work Applications | OPT | (Bravo) | |||||
| 25 | 22-49099 | FITTING, Grease | 2 | (Bravo) | |||||
| 26 | 10-14883 | SCREW, (.375-16 x 1.12) | 6 | (Bravo) | |||||
| 27 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | (Bravo) | |||||
| 28 | 865657A03 | HOUSING ASSEMBLY, Flywheel, Flywheel | 1 | 12675A5 | (Alpha) | ||||
| 28 | 865657A04 | HOUSING ASSEMBLY, Flywheel, Flywheel | 1 | 12675A7 | (Bravo) | ||||
| 29 | 865329A02 | MOUNT ASSEMBLY, Rubber | 2 | 99297A1 | (Alpha) | ||||
| 29 | 865330A02 | MOUNT KIT, Rubber | 2 | 88791A1 | |||||
| 30 | 23-99322 | SPACER | 2 | ||||||
| 31 | 10-97934 | 602-9G-116-04 | SCREW, (.500-20 x 5.370) Special | 2 | |||||
| 32 | 12-35777 | 602-9G-116-05 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | |||||
| 33 | 23-99299 | 23-99299 | SPACER, (.520 x .870 x .630) | 2 | |||||
| 34 | 12-32834 | 602-9G-116-10 | WASHER, (.9375 x 1.750 x .172) | 2 | |||||
| 35 | 13-33734 | 602-9G-116-07 | LOCKWASHER, (.500) | 2 | |||||
| 36 | 11-863332 | NUT, (.500-20) Aluminium | 2 | ||||||
| 37 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 38 | 10-37612 | SCREW, (.375-16 x 1.250) | 3 | ||||||
| 38 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 39 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 40 | 84-62826A3 | CABLE ASSEMBLY, Grounding | 2 | This Part is No Longer Available | |||||
| 41 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 42 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
