350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Cylinder Block, Camshaft And Crankshaft

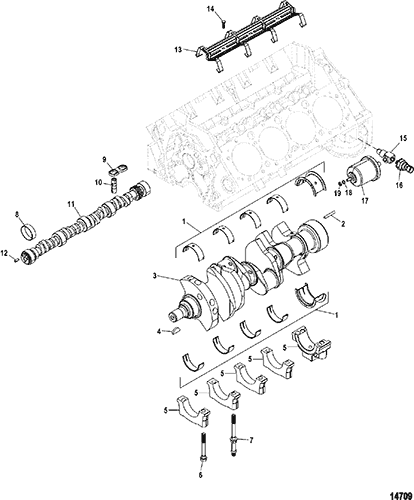

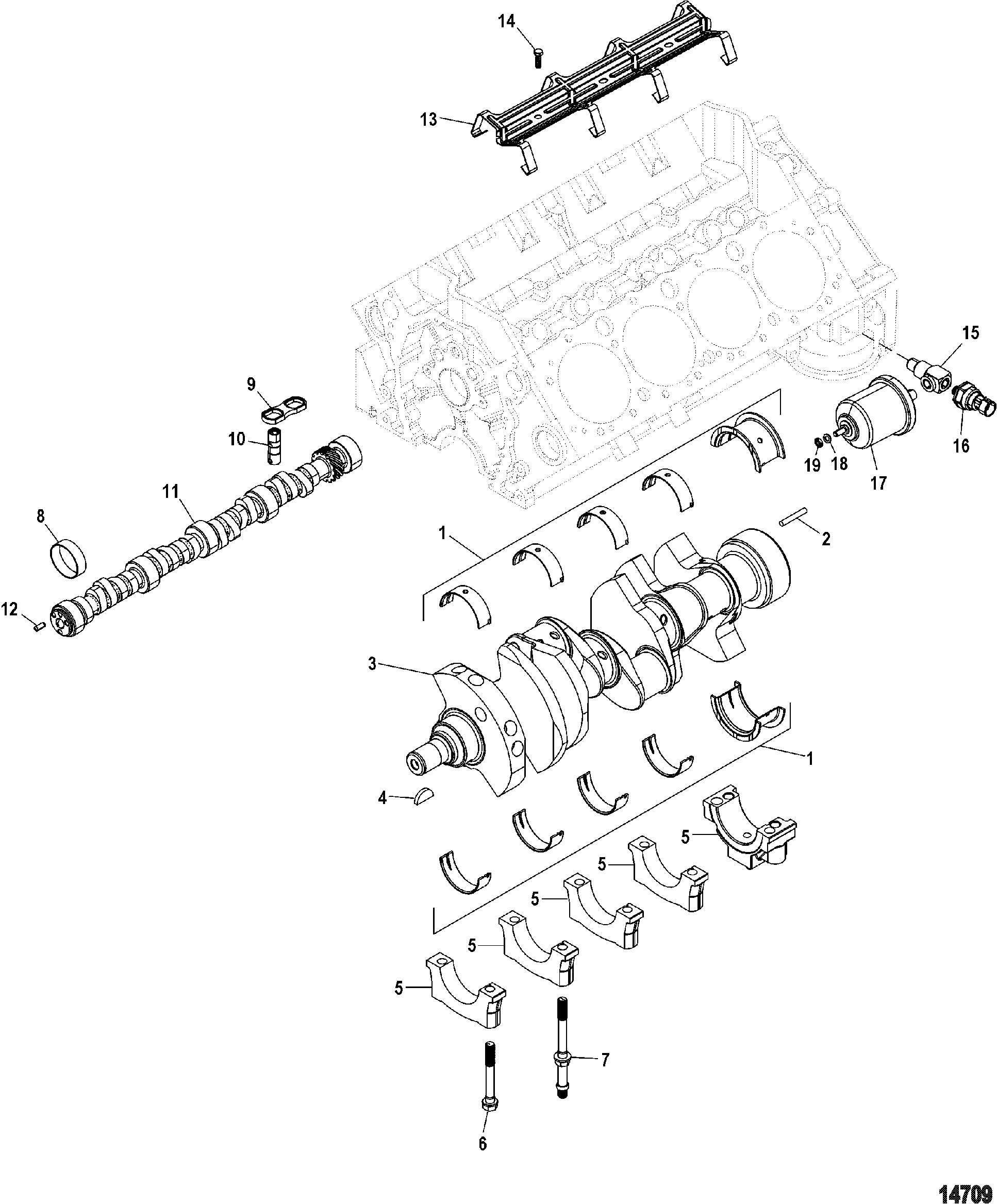

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-818465 | BEARING SET, 5 Pair | 1 | (Standard) (5.0L/350) 4 | |||||
| 1 | 23-818466 | BEARING SET, 5 Pair | AR | (.001 Undersize) (5.0L/350) 4 | |||||
| 1 | 23-818467 | BEARING SET, 5 Pair | AR | (.010 Undersize) (5.0L/350) 4 | |||||
| 1 | 23-818468 | BEARING SET, 5 Pair | AR | (.020 Undersize) (5.0L/350) 4 | |||||
| 1 | 31-849396 | BEARING SET, Standard - 5 Pair | 1 | (6.2L) 4 | |||||
| 1 | 31-849395 | BEARING SET, (.001 Oversize) 5 Pair | AR | (6.2L) 4 | |||||
| 1 | 31-849394 | BEARING SET, (.001 Undersize) 5 Pair | AR | (6.2L) 4 | |||||
| 2 | 17-43504 | PIN, Dowel | 2 | 4 | |||||
| 3 | 429-8M0054508 | CRANKSHAFT | 1 | 429-95211 | (5.0L/350) 4 | ||||
| 3 | 429-863323T1 | CRANKSHAFT | 1 | 429-863320T | (6.2L) 4 | ||||
| 4 | 28-34466 | KEY, Crankshaft (5.0L / 350) | 2 | 4 | |||||
| 4 | 28-862594 | KEY, Crankshaft (MX-6.2L) | 1 | ||||||
| 5 | NSS | NOT SOLD SEPARATE, Cap, Crankshaft Bearing | 0 | This Part is not sold separately 4 | |||||
| 6 | 16-850090 | SCREW, Crankshaft Bearing Cap | 10 | 10-885189 | 1,4 | ||||
| 7 | 16-850090 | STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap | 5 | 4 | |||||
| 8 | 23-85674 | BEARING SET | 1 | 4 | |||||
| 9 | 17341T | GUIDE, Lifter | 8 | 17341 | 4 | ||||
| 10 | 17340T1 | LIFTER, Roller | 16 | 4 | |||||
| 11 | 431-811658 | CAMSHAFT | 1 | (5.0L/350) 4 | |||||
| 11 | 431-862562T1 | CAMSHAFT | 1 | (6.2L) 4 | |||||
| 12 | 17-843378 | PIN, Dowel (1/4 In. Diameter) | 1 | 17-35312 | 4 | ||||
| 13 | 811662 | RETAINER, Lifter Guide | 1 | 4 | |||||
| 14 | 10-34500 | SCREW, (.312-18 x .625) | 3 | 4 | |||||
| 15 | 22-864669 | FITTING | 1 | 22-863658 | 1 | ||||
| 16 | 881879T11 | SENSOR, (0 - 100 PSI), Oil Pressure | 1 | 881879A6 | |||||
| 17 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 87-815425T | |||||
| 17 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT | (Dual Station) | |||||
| 18 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 19 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable | 1 | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce), Where Applicable | 1 | 92-342271 |
