350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Oil Pan And Oil Pump

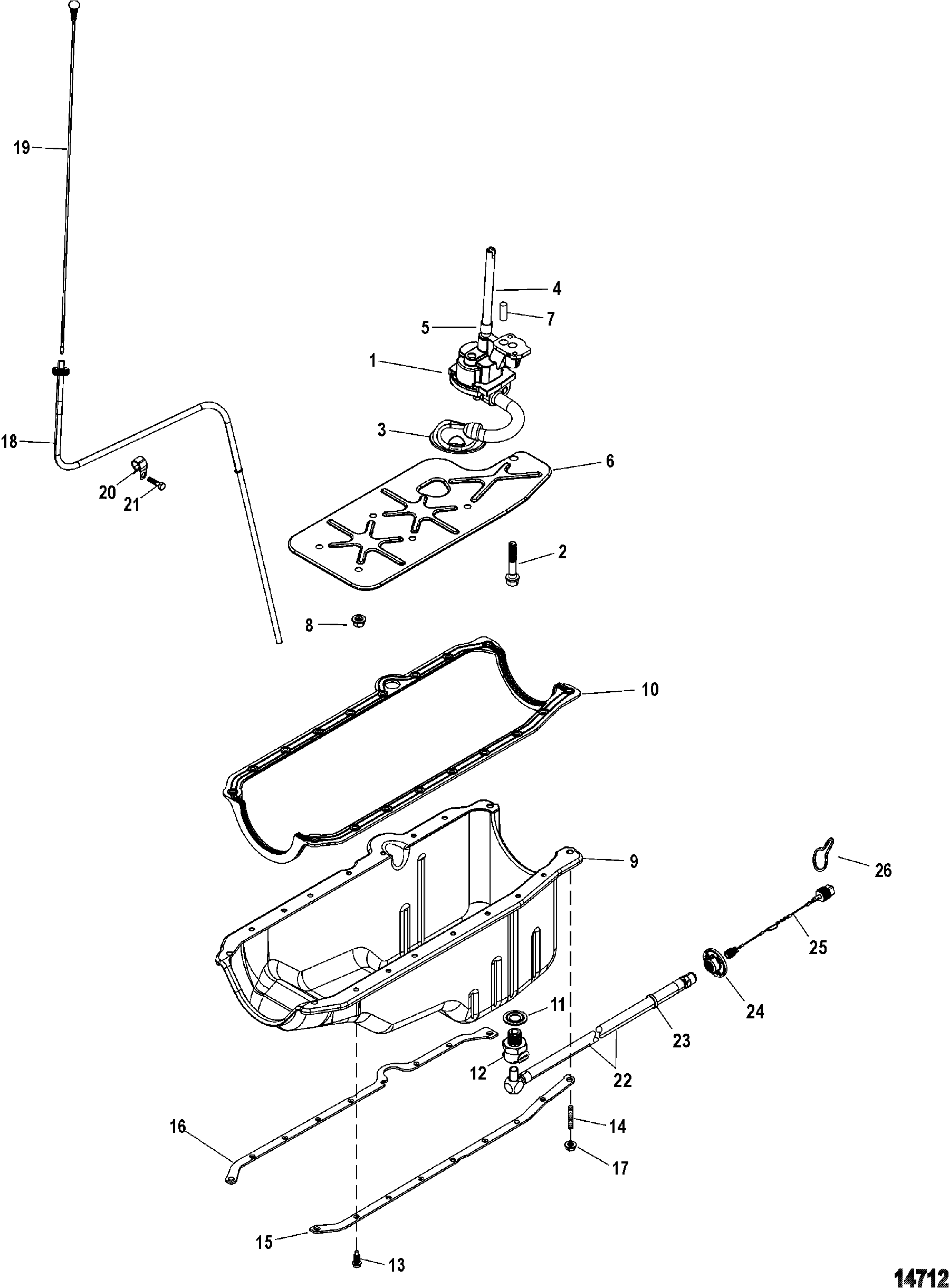

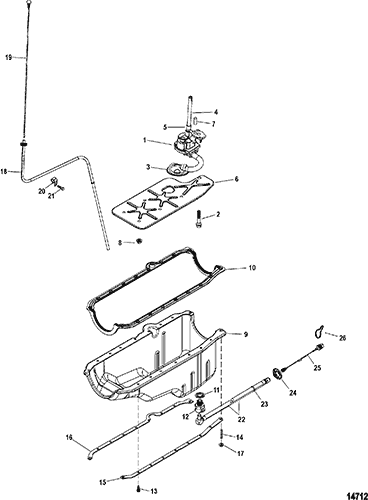

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809907002 | PUMP ASSEMBLY | 1 | 8099071 | 4 | ||||
| 2 | 10-17346 | SCREW, Oil Pump | 1 | 4 | |||||
| 3 | 809909 | SCREEN, Oil Pump Pick-Up | 1 | 4 | |||||
| 4 | 36184 | SHAFT | 1 | 4 | |||||
| 5 | 23-36183 | RETAINER | 1 | 4,4 | |||||
| 6 | 986021 | DEFLECTOR, Oil | 1 | 4 | |||||
| 7 | 17-843378 | PIN, Dowel (1/4 In. Diameter), Alignment, Oil Pump | 1 | 17-35312 | 4 | ||||
| 8 | 11-845602 | NUT, (.375-16) | 5 | 4 | |||||
| 9 | 809910 | PAN, Oil | 1 | 4 | |||||
| 10 | 27-138651 | 676-9-61504 | GASKET, Oil Pan | 1 | 2,4 | ||||
| 11 | 27-8M0077608 | GASKET, Drain Screw | 1 | 27-49955 | 2,4 | ||||
| 12 | 22-862811 | FITTING, Female Quick Connect | 1 | No longer made, limited availability | |||||
| 13 | 10-14070 | SCREW, (.250-20 x .625) | 14 | 4 | |||||
| 14 | 16-11989 | STUD, (.312-18 x 1.6718) | 2 | 4 | |||||
| 15 | 14257 | REINFORCEMENT | 1 | (Port) 4 | |||||
| 16 | 14256 | REINFORCEMENT | 1 | (Starboard) 4 | |||||
| 17 | 11-11971 | NUT, (.312-18) | 4 | 4 | |||||
| 18 | 862704A4 | TUBE, Dipstick | 1 | 1,4 | |||||
| 19 | 861942T9 | DIPSTICK, Oil Level | 1 | 1 | |||||
| 20 | 54-805625 | CLIP, Dipsitck Tube | 1 | 1,4 | |||||
| 21 | 10-35366 | SCREW, (.250-20 x .563) | 1 | 4 | |||||
| 22 | 32-805505A4 | HOSE, Oil Drain | 1 | This Part is No Longer Available | |||||
| 23 | 54-863481 | CLAMP, Ty Strap | 1 | ||||||
| 24 | 862777 | FLANGE, Drain | 1 | ||||||
| 25 | 862827 | TETHER ASSEMBLY | 1 | ||||||
| 26 | 54-805524 | CLIP | 1 | ||||||
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
