350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Front Cover And Circulating Pump

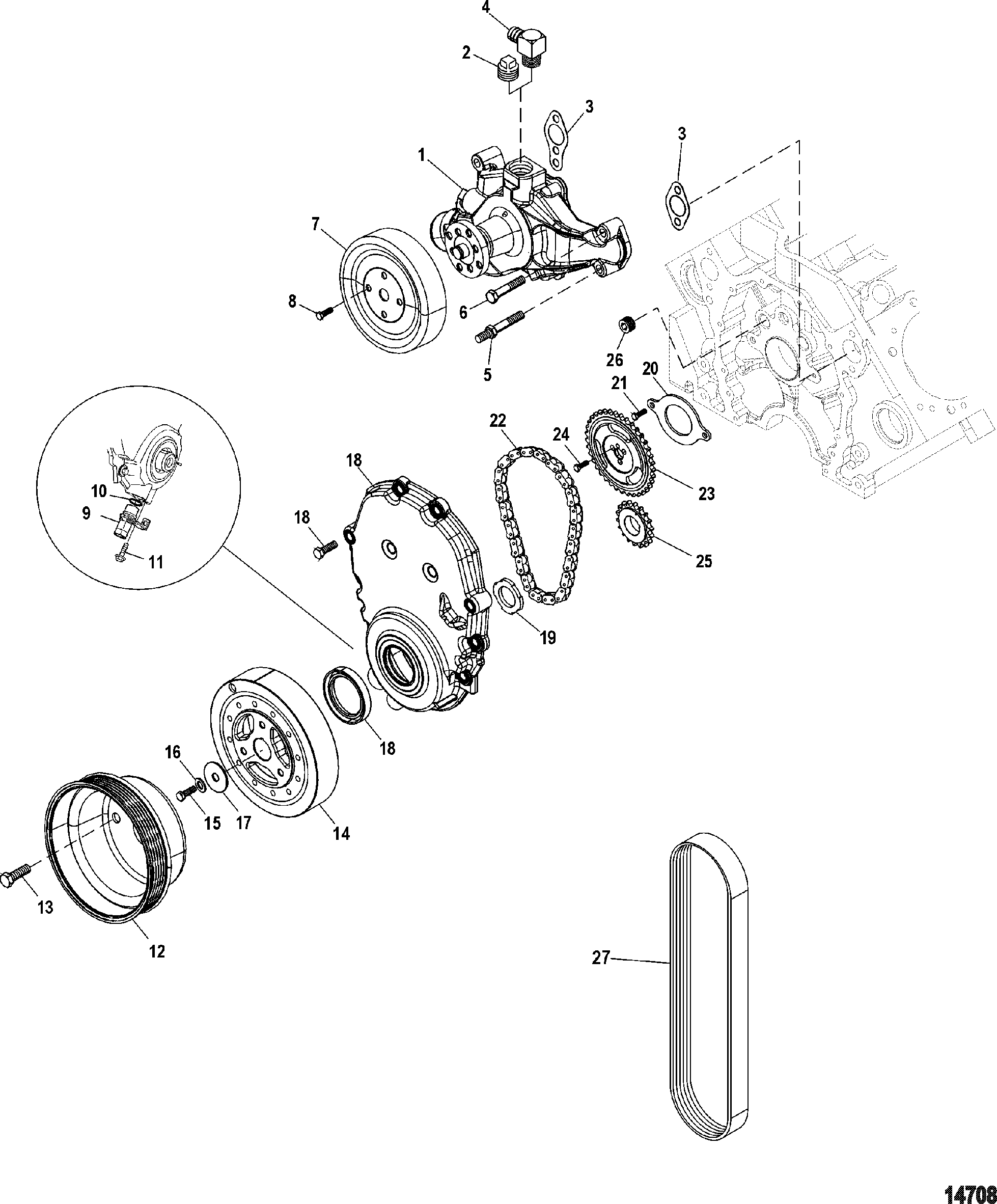

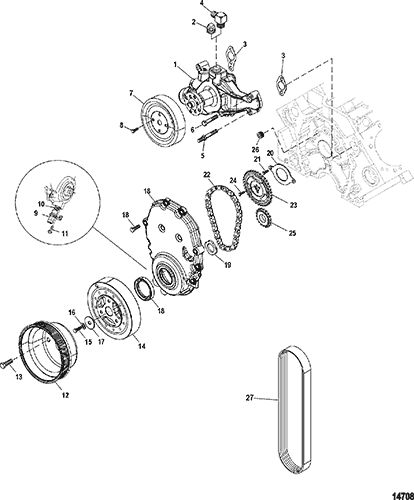

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System(Easy Drain)
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Front Cover And Circulating Pump
- Fuel Filter (0M336101 And Below)
- Fuel Filter And Boost Pump (0M336102 And Up)
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8503991 | PUMP ASSEMBLY, Water | 1 | 4 | |||||
| 2 | 22-428611 | 602-98-102-57 | PLUG, Pipe | 1 | 22-49146 | (Standard Cooling) 4 | |||
| 3 | 27-34897 | 676-9-60065 | 700-31380 | GASKET, Water Pump | 2 | 2,4 | |||
| 4 | 22-860346 | FITTING, Elbow (90 Degree) (.750) | 1 | (Closed Cooling) | |||||
| 5 | 16-35342 | STUD, (.312-24/.375-16 x 2.5625) | 2 | 4 | |||||
| 6 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | 4 | |||||
| 6 | 10-47688 | SCREW, (.375-16 x 2.750) | 1 | 4 | |||||
| 7 | 807729T | PULLEY | 1 | 4 | |||||
| 8 | 10-47277 | SCREW, (.312-24 x .750) | 4 | 4 | |||||
| 9 | 864297T01 | SENSOR ASSEMBLY, Crankshaft Position | 1 | 864297 | 1,4 | ||||
| 10 | 25-885192 | O-RING | 1 | 1,4 | |||||
| 11 | 10-884018001 | SCREW | 1 | 10-884018 | 1,4 | ||||
| 12 | 807730T | PULLEY, Crankshaft | 1 | ||||||
| 13 | 10-34352 | SCREW, (.375-24 x .875) | 3 | ||||||
| 14 | 863397 | HARMONIC BALANCER | 1 | 4 | |||||
| 15 | 10-32515 | SCREW, (.437-20 x 2.50) | 1 | 4 | |||||
| 16 | 13-39131 | LOCKWASHER, (.437) | 1 | 4 | |||||
| 17 | 35332001 | WASHER | 1 | 12-35332 | 4 | ||||
| 18 | 863396001 | TIMING COVER ASSEMBLY | 1 | 863396 | (Screws, Grommets, Oil Seal, And Gasket Are: Not Sold separately) 4 | ||||
| 19 | 863398 | RELUCTOR WHEEL | 1 | 1,4 | |||||
| 20 | 845941 | RETAINER, Camshaft | 1 | 4 | |||||
| 21 | 10-845943 | SCREW, (.250-20 x .500) | 2 | 4 | |||||
| 22 | 17161T | CHAIN, Timing | 1 | 4 | |||||
| 23 | 43-8116591 | SPROCKET, Camshaft | 1 | 4 | |||||
| 24 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 4 | |||||
| 25 | 43-17160 | SPROCKET, Crankshaft | 1 | 4 | |||||
| 26 | 19-816565 | PLUG, Pipe(.468), Pipe | 1 | 4 | |||||
| 27 | 57-865615Q04 | BELT, Serpentine | 1 | 57-8620861 | (Alpha) (With Power Steering) SN# 0M320024 & Below | ||||
| 27 | 57-865615Q04 | BELT, Serpentine | 1 | 57-8638764 | (Alpha) (With Power Steering) SN# 0M320025 & Up | ||||
| 27 | 57-865615Q09 | BELT, Serpentine | 1 | 57-862088 | (Alpha) (CHS And Non Power Steering) SN# 0M320024 & Below | ||||
| 27 | 57-865615Q09 | BELT, Serpentine | 1 | 57-8638769 | (Alpha) (CHS And Non Power Steering) SN# 0M320025 & Up 1 | ||||
| 27 | 57-862087 | BELT, Serpentine | 1 | (Bravo) (With Power Steering) SN# 0M320024 & Below No longer made, limited availability 1 | |||||
| 27 | 57-8638763 | BELT, Serpentine | 1 | (Bravo) (With Power Steering) SN# 0M320025 & Up 1 | |||||
| 27 | 57-865615Q08 | BELT, Serpentine | 1 | 57-862089 | (Bravo) (CHS And Non Power Steering) SN# 0M320024 & Below | ||||
| 27 | 57-865615Q08 | BELT, Serpentine | 1 | 57-8638768 | (Bravo) (CHS And Non Power Steering) SN# 0M320025 & Up 1 | ||||
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
